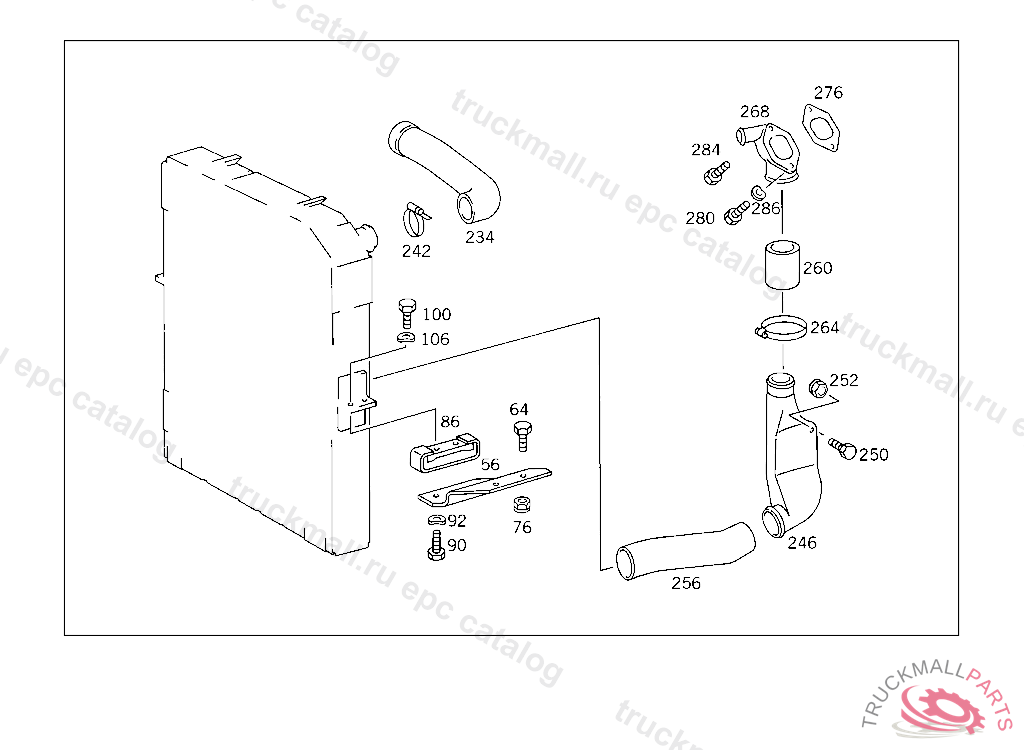

Поз.
Артикул
Описание
56
SUPPORT RADIATOR,LEFT,K 096749
64
SCREW CONSOLE TO SIDE MEMBER
76
NUT SUPPORT TO SIDE MEMBER
86
RUBBER MOUNTING RADIATOR
90
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
90
SCREW , Replaced By: N304017010028
92
SPRING WASHER STEERING COLUMN BRACKET TO CAB
100
SCREW END PIECE TO EXHAUST PIPE M 10X25
106
SPRING WASHER STEERING COLUMN BRACKET TO CAB
234
HOSE FROM RADIATOR TO THERMOSTAT
242
CLAMP HOSE 70-90X13 MM
242
CLAMP , Replaced By: N000000000674
246
PIPE ELBOW , Replaced By: A6205010556
246
PIPE ELBOW AT WATER PUMP,5 193594
246
PIPE ELBOW , Replaced By: A6205010056
246
PIPE ELBOW AT WATER PUMP,5 193594
250
SCREW BRACKET TO FRAME SIDE MEMBER
252
NUT STRAP TO BRACKET
252
NUT , Replaced By: N910113010000
256
HOSE FROM RADIATOR OUTLET TO WATER PUMP
256
HOSE , Replaced By: A6555011282
256
HOSE FROM RADIATOR TO WATER PUMP
260
HOSE FROM RADIATOR OUTLET TO WATER PUMP, ORDER BY THE METER
264
CLAMP HOSE 70-90X13 MM
264
CLAMP , Replaced By: N000000000674
268
CONNECTOR AT WATER PUMP
268
CONNECTOR , Replaced By: A6205010423
268
CONNECTOR FOR SCREW FITTING
268
CONNECTOR , Replaced By: A6205010323
276
GASKET CONNECTOR
276
GASKET CONNECTOR, Replaced By: A0002011280
276
GASKET CONNECTOR, Replaced By: A0002011180
276
GASKET CONNECTOR, Replaced By: A0002011080
276
GASKET , Replaced By: A4422010480
280
SCREW END PIECE TO EXHAUST PIPE M 10X25
284
SCREW STRAP TO BRACKET
286
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
ANGLE LINE MOUNTING
999
SCREW EXHAUST PIPE TO BRACKET
999
PIPE ELBOW , Replaced By: A6555010756
999
HOSE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
999
RUBBER MOUNTING , Replaced By: A6205040112
999
HOSE FROM ENGINE CONNECTION FLANGE TO HEATING PIPE AT RADIATOR
999
PIPE ELBOW AT WATER PUMP,5 1935955 510517
999
PIPE ELBOW AT WATER PUMP,5 510518
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW , Replaced By: A4609900601
999
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
