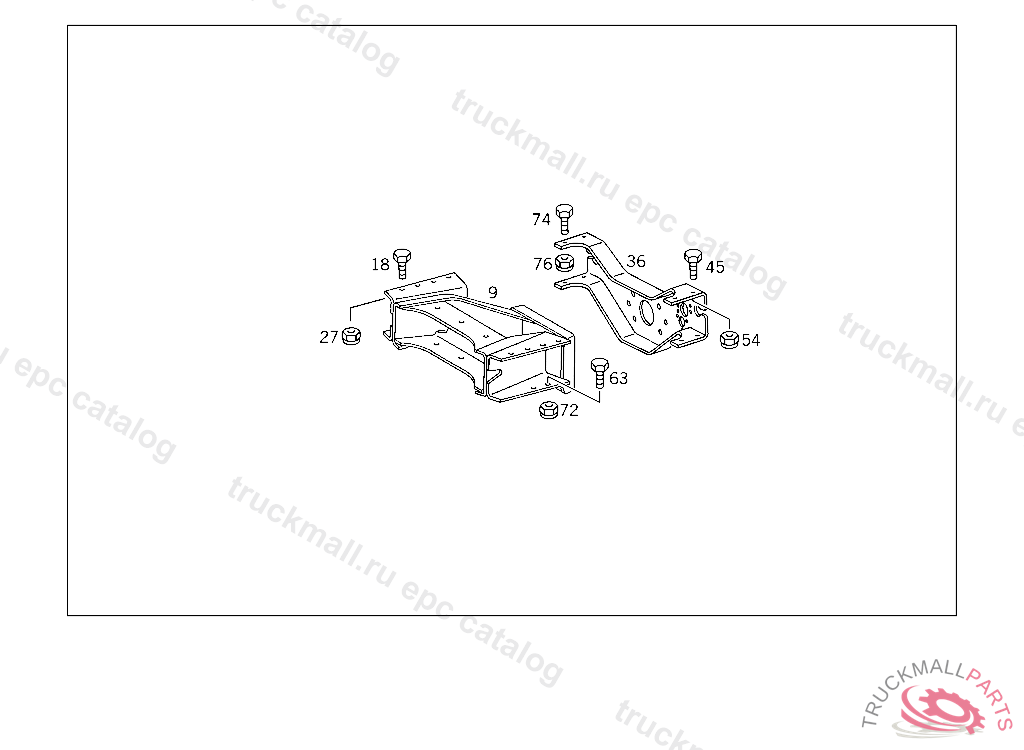

Поз.
Артикул
Описание
9
STRUT REAR CROSS MEMBER
9
STRUT REAR CROSS MEMBER
9
STRUT REAR CROSS MEMBER
9
STRUT REAR CROSS MEMBER
18
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
18
SCREW SUPPORT TO SIDE MEMBER M14X40
18
SCREW , Replaced By: N308676014020
27
NUT BRACKET TO SIDE MEMBER
27
NUT PARTICLE FILTER M14
27
NUT , Replaced By: N910113014001
36
CROSS MEMBER
36
CROSS MEMBER (REAR CROSS MEMBER)
45
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
45
SCREW SUPPORT TO SIDE MEMBER M14X40
45
SCREW , Replaced By: N308676014020
54
NUT BRACKET TO SIDE MEMBER
54
NUT PARTICLE FILTER M14
54
NUT , Replaced By: N910113014001
63
SCREW BRACKET TO SIDE MEMBER
72
NUT BRACKET TO SIDE MEMBER
72
NUT , Replaced By: N910113014001
74
SCREW CROSS MEMBER TO REINFORCEMENT M 20X1.5X45
74
SCREW BRACKET TO FRAME M 16X1.5X45
74
SCREW BEARING BRACKET TO SIDE MEMBER
76
NUT CROSS MEMBER TO REINFORCEMENT
76
NUT , Replaced By: N913004020003
76
NUT COMBINATION CYLINDER TO BEARING BRACKET
76
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
76
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
999
CROSS MEMBERNO.7
999
CROSS MEMBER (REAR CROSS MEMBER)
