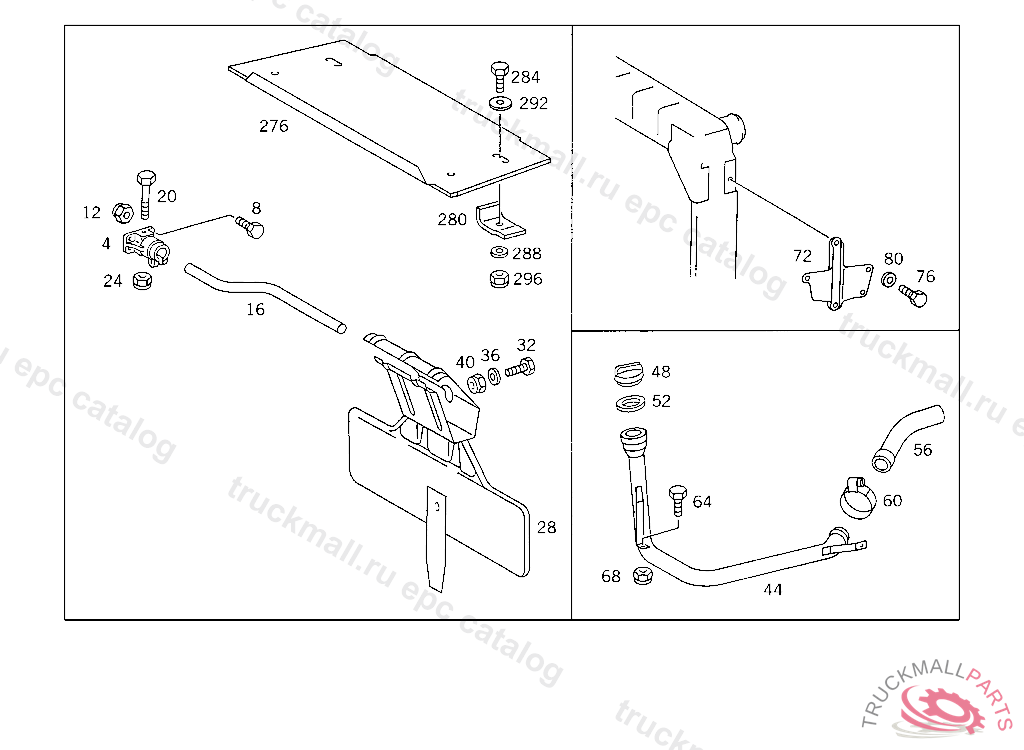

Поз.
Артикул
Описание
4
BEARING BRACKET , 393.311 UP TO CHASSIS 4 450302,393.321 UP TO CHASSIS 4 453 074,395.312,322,412,422 UP TO CHASSIS 4 426005
8
SCREW SUPPORT TO CROSS MEMBER M 10X28
12
NUT , Replaced By: N910113010000
12
NUT STRAP TO BRACKET
16
BRACKET FENDER/TAIL-LAMP FIXTURE, TO BE ADAPTED DURING ASSEMBLY
16
BRACKET FENDER/TAIL-LAMP FIXTURE, TO BE ADAPTED DURING ASSEMBLY
20
SCREW REAR AXLE REGULATING SOLENOID VALVE
24
NUT , Replaced By: N913004008001
24
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
28
BRACKET TAIL LAMP
32
SCREW , Replaced By: N304017008043
32
SCREW VALVE TO BRACKET M 8X55
36
WASHER , Replaced By: N000125008443
36
WASHER EXHAUST MUFFLER TO STRAP
40
NUT , Replaced By: N913004008001
40
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
PIPE ELBOW (OIL FILLER PIPE)
48
CAP OIL REFILLING
48
CAP OIL REFILLING
48
CAP OIL REFILLING
52
GASKET , Replaced By: A1020180380
52
GASKET
56
HOSE FROM OIL FILLER NECK TO OIL PAN
56
HOSE , Replaced By: A6205280182
60
CLAMP , Replaced By: N000000000671
60
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
64
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
68
NUT , Replaced By: N910113010000
68
NUT STRAP TO BRACKET
72
BRACKET OIL DIPSTICK GUIDE TUBE
76
SCREW , Replaced By: A0079900801
76
SCREW REDUCTION VALVE TO BRACKET
80
WASHER , Replaced By: N000125008443
80
WASHER EXHAUST MUFFLER TO STRAP
276
RUNNING BOARD
280
MOUNTING ANGLE ROCKER PANEL TO FRAME
284
SCREW ROCKER PANEL TO FRAME
288
WASHER RADIATOR TO RUBBER MOUNTING
292
WASHER , Replaced By: N007349010007
292
WASHER STRUT TO CROSS MEMBER
296
NUT , Replaced By: N910113010000
296
NUT STRAP TO BRACKET
