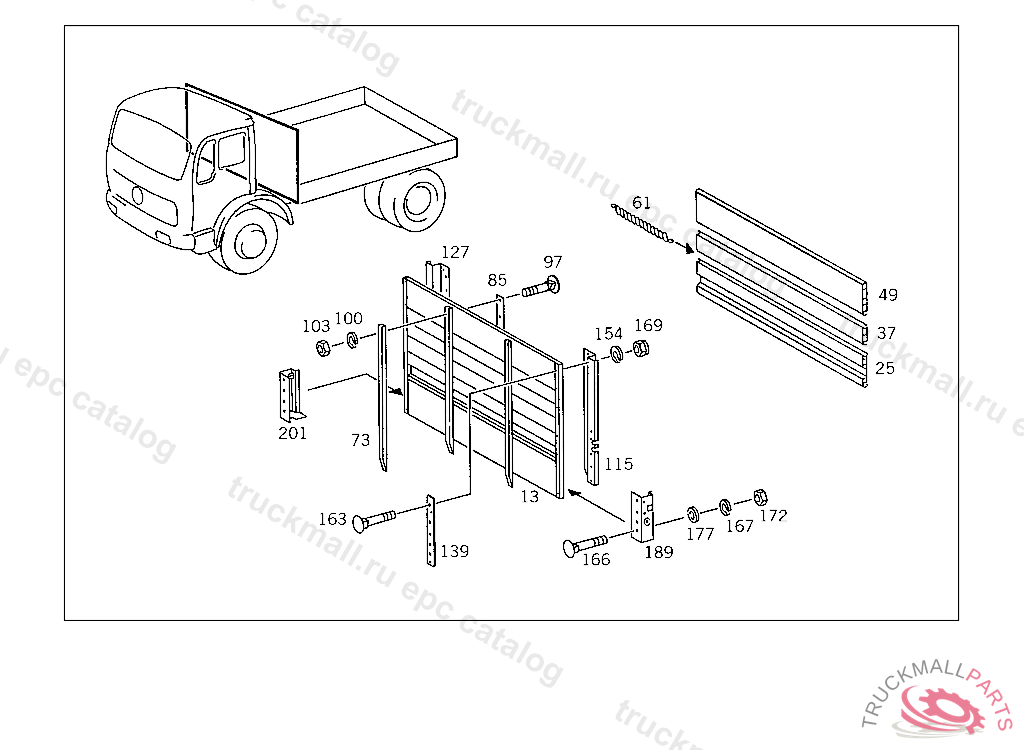

Поз.
Артикул
Описание
13
FRONT PANEL , Replaced By: A3826201902
13
FRONT PANEL
25
PLATFORM PANEL , Replaced By: A3826272451
25
PLATFORM PANEL CENTRAL PART
37
PLATFORM PANEL , Replaced By: A3826272551
37
PLATFORM PANEL INTERMEDIATE PART
49
PLATFORM PANEL , Replaced By: A3826272651
49
PLATFORM PANEL UPPER PART
61
SPRING
73
BRACING REAR SIDE PANEL
85
REINFORCEMENT REAR SIDE PANEL
97
SCREW REAR SIDE PANEL M8X50
100
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
103
NUT
115
RAIL LEFT
127
RAIL RIGHT
139
RAIL REAR SIDE PANEL
154
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
163
SCREW REAR SIDE PANEL M10X50
166
SCREW REAR SIDE PANEL M8X20
167
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
169
NUT , Replaced By: N910113010000
169
NUT STRAP TO BRACKET
172
NUT
177
WASHER , Replaced By: N009021008213
177
WASHER BRACKET TO LEFT SIDE MEMBER
189
INSERT RAIL FRONT LEFT
201
INSERT RAIL FRONT RIGHT
999
RIVET4.8X8.5 MM
999
RIVET , Replaced By: A0039903897
999
BINDING RAIL LEFT AND RIGHT
999
RIVET , Replaced By: A0029906297
999
METAL SECTION , Replaced By: A3636271070
999
RIVET BINDING RAIL TO PLATFORM SIDE PANEL 4.8 X 9.5 MM
