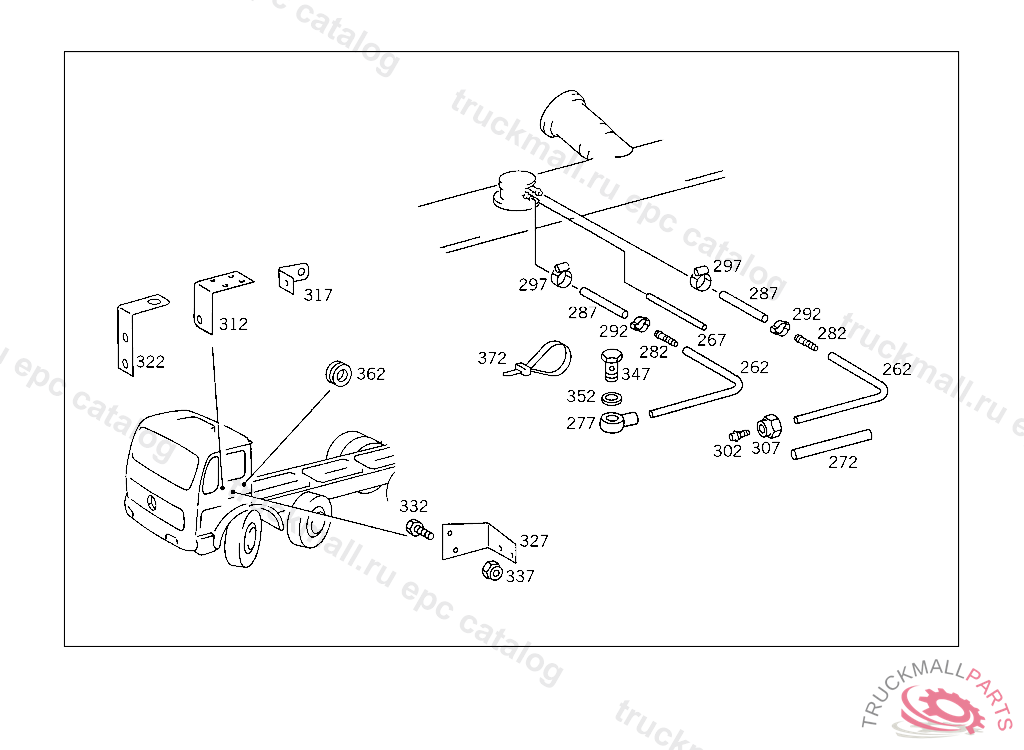

Поз.
Артикул
Описание
262
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
267
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
272
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
277
BANJO UNION FEED
277
BANJO UNION , Replaced By: N000000000363
282
CONNECTOR RIGHT,177-LITER
282
SLEEVE FEED
287
HOSE LEAK LINE
292
CLIP LEAK LINE
297
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
297
CLAMP , Replaced By: N000000000665
302
FITTING RETURN
307
NUT. UNION NUT RETURN
312
BRACKET AT ENGINE,REAR
317
BRACKET FUEL LINE TO BELL HOUSING
327
BRACKET , Replaced By: A4404700105
327
BRACKET AT FRAME
332
SCREW , Replaced By: N304017008027
332
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
337
NUT , Replaced By: N913004008001
337
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
347
HOLLOW SCREW FUEL LINE TO FEED PUMP
347
HOLLOW SCREW , Replaced By: N915036010108
352
SEAL RING FUEL LINE TO FEED PUMP
362
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
372
LOOM TIE LINE MOUNTING
372
LOOM TIE LINE MOUNTING 280 MM
999
NUT , Replaced By: N913004008001
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW , Replaced By: N304017008034
999
WASHER
999
BRACKET FUEL LINES TO TRANSMISSION
999
BRACKET COMPRESSED AIR LINES, Replaced By: A6205240340
