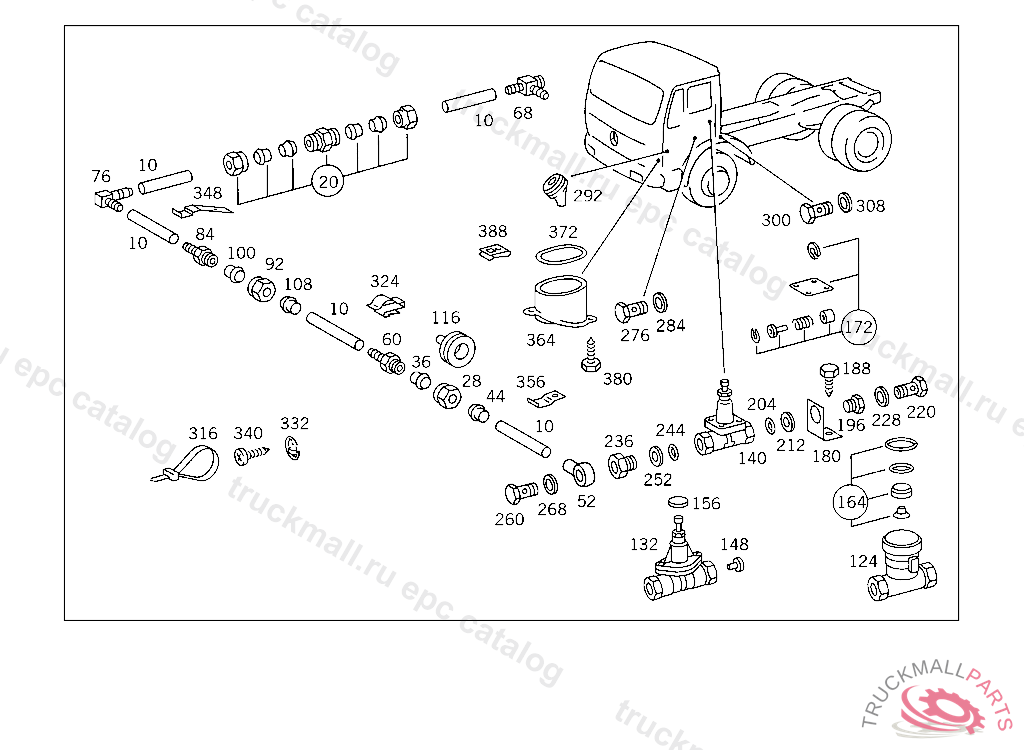

Поз.
Артикул
Описание
10
PLASTIC PIPE RISING PIPE 4X6 MM
10
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
20
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
28
UNION NUT
36
GLAND , Replaced By: A0019901667
36
SEAL CONE
44
SLEEVE LEAK LINE
52
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
52
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
60
FITTING LINE CONNECTION TO FIRE WALL,5 726664
68
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
76
T-FITTING LINE CONNECTION, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
76
T-FITTING LINE CONNECTION, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
84
FITTING LINE CONNECTION TO FIRE WALL,5 726664
92
UNION NUT BLEEDING, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
100
GLAND BLEEDING, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
108
SLEEVE LEAK LINE
116
GROMMET FOR PASSAGE OF LINE, UP TO IDENT NO. 5 033766,ALSO INSTALLED ON 5 039977
124
VALVE (OVERFLOW VALVE) WABCO
124
VALVE , Replaced By: A0044293144
132
VALVE , Replaced By: A0044293244
132
VALVE (OVERFLOW VALVE) GRAU
140
VALVE (OVERFLOW VALVE) WABCO
140
VALVE , Replaced By: A0044293144
148
VALVE
156
DIAPHRAGM
164
REPAIR KITBOSCH
172
REPAIR KITTO 001 429 52 44
180
BRACKET OVERFLOW VALVE
188
SHEET METAL SCREW BRACKET TO CAB FLOOR
196
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
204
O-RING CHECK VALVE TO AIR RESERVOIR
212
THRUST RING CHECK VALVE TO AIR RESERVOIR
212
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
220
HOLLOW SCREW HEATING CONNECTION
228
SEAL RING LINE CONNECTION
236
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
244
O-RING CHECK VALVE TO AIR RESERVOIR
252
THRUST RING CHECK VALVE TO AIR RESERVOIR
252
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
260
HOLLOW SCREW HEATING CONNECTION
268
SEAL RING LINE CONNECTION
276
HOLLOW SCREW LINE CONNECTION
284
SEAL RING , Replaced By: N007603010110
284
SEAL RING PNEUMATIC VALVE
292
GROMMET OUTSIDE REARVIEW MIRROR ELECTRIC CABLE TO BRACKET
300
HOLLOW SCREW HEATING CONNECTION
308
SEAL RING LINE CONNECTION
316
LOOM TIE LINE MOUNTING 280 MM
324
CLIP CABLE HARNESS TO ROOF RAIL
332
BRACKET LINE MOUNTING
340
TAPPING SCREW. SHEET METAL SCREW FUEL LINE
348
BRACKET DRIVER'S AIR-CUSHIONED SEAT COMPRESSED-AIR LINE, FROM IDENT NO. 5 033767,EXCEPT FOR 5 039977
356
BRACKET DRIVER'S AIR-CUSHIONED SEAT COMPRESSED-AIR LINE
364
BRACKET FOR PASSAGE OF LINE
364
BRACKET FOR PASSAGE OF LINE
372
SEAL RING TO SEAL CABLE HARNESS OPENING IN CAB
380
SHEET METAL SCREW BRACKET TO CAB FLOOR
388
LOCK ELECTRIC CABLE THRU CAB FLOOR
999
DIAPHRAGM , Replaced By: A0004290745
999
PLUG COMPRESSED-AIR-LINE PLUG-CONNECTION
