Поз.
Артикул
Описание

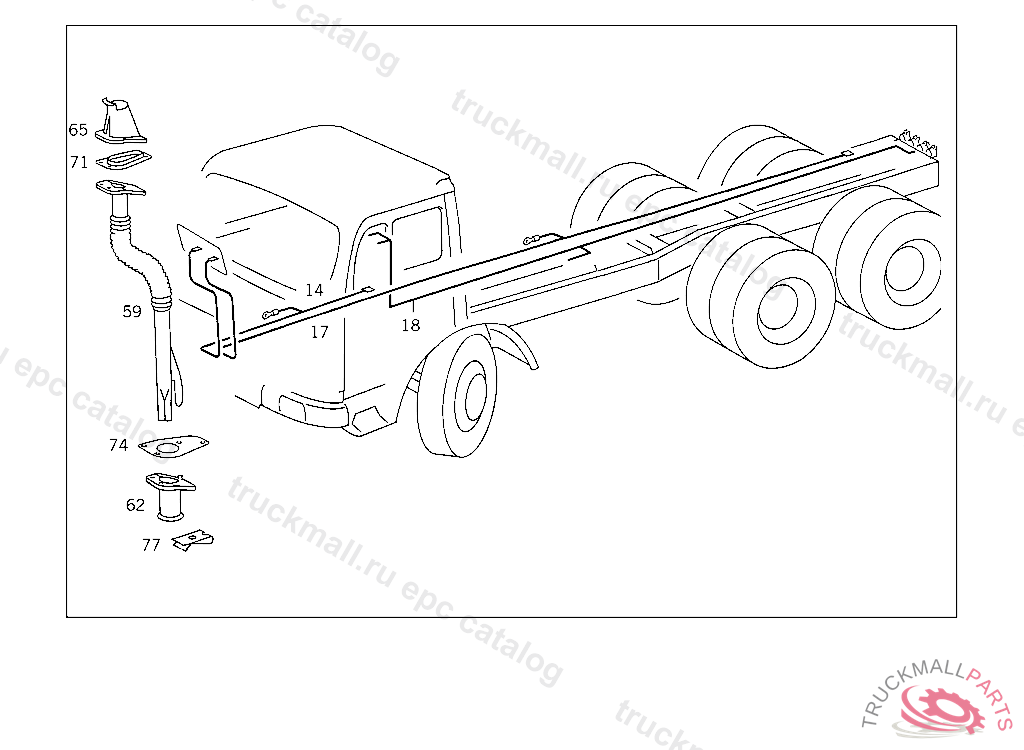

14
CABLE HARNESS , THIS CABLE HARNESS IS A COMPONENT OF FRAME MOUNTED CABLE HARNESS ASSEMBLY THE FRAME MOUNTED CABLE HARNESS ASSEMBLY HAS NO PART NUMBER, BUT WILL BE MADE AVAILABLE ON QUOTATION OF VEHICLE IDENT NO. TO AVOID PULSE DISTORTIONS, CABLE OVERLENGTHS SHOULD NOT BE LAID IN RING/LOOP SHAPE
14
CABLE HARNESS , THIS CABLE HARNESS IS A COMPONENT OF FRAME MOUNTED CABLE HARNESS ASSEMBLY THE FRAME MOUNTED CABLE HARNESS ASSEMBLY HAS NO PART NUMBER, BUT WILL BE MADE AVAILABLE ON QUOTATION OF VEHICLE IDENT NO. TO AVOID PULSE DISTORTIONS, CABLE OVERLENGTHS SHOULD NOT BE LAID IN RING/LOOP SHAPE
17
CABLE HARNESS FROM CHASSIS/CAB TO SOLENOID VALVE AND TO REAR AXLE SENSOR,RIGHT
17
CABLE HARNESS FROM CHASSIS/CAB PLUG CONNECTION TO SOLENOID VALVE AND TO REAR AXLE SENSOR
18
CABLE HARNESS ANTI-LOCK-BRAKING-SYSTEM TRAILER PLUG SOCKET
59
INSULATING HOSE CABLE PROTECTION,5 760761
62
BRACKET LOWER PART, INSULATING HOSE TO CAB FLOOR
65
BRACKET UPPER PART, INSULATING HOSE TO CAB FLOOR
71
GASKET BRACKET,TOP
74
GASKET BRACKET,BOTTOM
77
LOCK BRACKET TO CAB FLOOR
999
CABLE HARNESS CAB MAIN CABLE HARNESS
