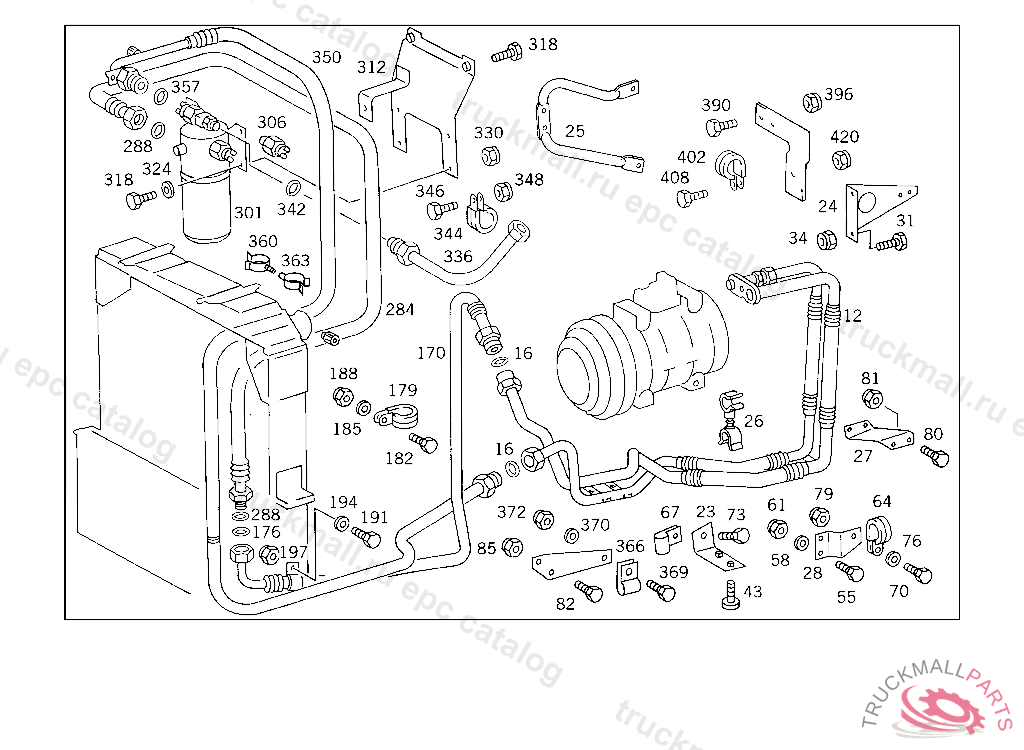

Поз.
Артикул
Описание
12
PIPE LINE FROM COMPRESSOR TO RADIATOR SEPARATION POINT
12
PIPE LINE FROM COMPRESSOR TO RADIATOR SEPARATION POINT
12
PIPE LINE FROM COMPRESSOR TO RADIATOR SEPARATION POINT
12
PIPE LINE FROM COMPRESSOR TO RADIATOR SEPARATION POINT
12
PIPE LINE FROM COMPRESSOR TO RADIATOR SEPARATION POINT
12
PIPE LINE FROM COMPRESSOR TO RADIATOR SEPARATION POINT,5 519722
12
PIPE LINE FROM COMPRESSOR TO RADIATOR SEPARATION POINT
12
HOSE FROM COMPRESSOR TO RADIATOR SEPARATION POINT
12
PIPE LINE FROM COMPRESSOR TO RADIATOR SEPARATION POINT,5 519722
12
PIPE LINE FROM COMPRESSOR TO RADIATOR SEPARATION POINT,5 519721
12
PIPE LINE FROM COMPRESSOR TO RADIATOR SEPARATION POINT
12
PIPE LINE FROM COMPRESSOR TO RADIATOR SEPARATION POINT
12
PIPE LINE FROM COMPRESSOR TO RADIATOR SEPARATION POINT
12
PIPE LINE , Replaced By: A6528301015
12
PIPE LINE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6558302015
12
PIPE LINE , Replaced By: A6558302515
12
PIPE LINE , Replaced By: A6558302715
12
PIPE LINE FROM COMPRESSOR TO RADIATOR SEPARATION POINT
16
SEAL RING , Replaced By: A1249970545
16
SEAL RING , Replaced By: A1249970345
16
SEAL RING , Replaced By: A1409970845
16
SEAL RING , Replaced By: A1409970945
16
SEAL RING HOSE TO CONDENSER 14 MM
16
O-RING HOSE TO EXPANSION VALVE 17X2
23
BRACKET DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER,5 598039
24
BRACKET DELIVERY AND SUCTION HOSES TO COUPLING MOUTH CROSS MEMBER
25
BRACKET DELIVERY AND SUCTION HOSES,5 598040
26
CLAMP , Replaced By: A0009954565, +001A6734660440
26
CLAMP HOSE TO HOSE
27
BRACKET DELIVERY AND SUCTION LINES TO CAB
28
BRACKET DELIVERY AND SUCTION LINES TO CAB
28
BRACKET DELIVERY AND SUCTION LINES TO CAB
31
SCREW , Replaced By: A4609900601
31
SCREW EXHAUST PIPE TO BRACKET
34
NUT , Replaced By: N913004008001
34
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
43
SCREW DELIVERY AND SUCTION LINES TO CAB
55
SCREW DELIVERY AND SUCTION LINES TO CAB
55
SCREW PUMP TO BRACKET
55
SCREW , Replaced By: N304017006016
58
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
58
WASHER COMPRESSED AIR LINE TO BRACKET
61
NUT , Replaced By: N913004006001
61
NUT PUMP TO BRACKET
64
CLAMP BRAKE HOSE BRACKET
64
CLAMP FEED LINE TO THERMOSTAT
67
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
67
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
70
SCREW PUMP TO BRACKET
70
SCREW LICENSE PLATE TO BRACKET
70
SCREW , Replaced By: N304017006020
70
SCREW , Replaced By: N304017006016
73
SCREW 3/2-WAY VALVE TO BRACKET
76
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
76
WASHER COMPRESSED AIR LINE TO BRACKET
79
NUT , Replaced By: N913004006001
79
NUT PUMP TO BRACKET
80
SCREW , Replaced By: N000000001146
80
SCREW CLAMP MOUNTING M 6X16
81
NUT , Replaced By: N913004006001
81
NUT PUMP TO BRACKET
82
SCREW , Replaced By: N304017006020
82
SCREW LICENSE PLATE TO BRACKET
85
NUT , Replaced By: N913004006001
85
NUT PUMP TO BRACKET
170
PIPE LINE FROM RADIATOR PARTITION POINT TO CONDENSER
170
PIPE LINE FROM RADIATOR PARTITION POINT TO CONDENSER
170
PIPE LINE FROM RADIATOR PARTITION POINT TO CONDENSER,5 519722
170
PIPE LINE FROM RADIATOR PARTITION POINT TO CONDENSER
176
SEAL RING HOSE TO CONDENSER 14 MM
176
SEAL RING , Replaced By: A1249970545
176
SEAL RING , Replaced By: A1409970845
179
CLAMP PIPE LINE TO CONDENSER
182
SCREW , Replaced By: N304017006016
182
SCREW PUMP TO BRACKET
185
WASHER COMPRESSED AIR LINE TO BRACKET
185
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
188
NUT , Replaced By: N913004006001
188
NUT PUMP TO BRACKET
191
SCREW COVER PLATE TO COVER PLATE M 6 X 12
191
SCREW , Replaced By: N304017006018
194
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
194
WASHER COMPRESSED AIR LINE TO BRACKET
197
NUT , Replaced By: N913004006001
197
NUT PUMP TO BRACKET
284
PIPE LINE FROM CONDENSER TO LIQUID TANK,5 519721
284
PIPE LINE , Replaced By: A6558302915
284
PIPE LINE , Replaced By: A6558301315
284
HOSE FROM CONDENSER TO LIQUID TANK
284
PIPE LINE FROM CONDENSER TO LIQUID TANK
284
PIPE LINE FROM CONDENSER TO LIQUID TANK
284
HOSE FROM CONDENSER TO LIQUID TANK
284
PIPE LINE FROM CONDENSER TO LIQUID TANK,5 519722
284
HOSE FROM CONDENSER TO LIQUID TANK
284
HOSE FROM CONDENSER TO LIQUID TANK
284
HOSE FROM CONDENSER TO LIQUID TANK
288
SEAL RING HOSE TO RESERVOIR 10.6 MM
288
SEAL RING , Replaced By: A1249970545
288
SEAL RING , Replaced By: A1409970845
288
SEAL RING HOSE TO CONDENSER 14 MM
288
SEAL RING FROM LIQUID TANK TO T-FITTING
301
TANK REFRIGERANT
301
HOSE FROM LIQUID TANK TO EXPANSION VALVE
301
TANK REFRIGERANT,K 157607
301
TANK REFRIGERANT,K 157608
301
TANK REFRIGERANT
306
SWITCH HIGH PRESSURE
306
SWITCH ,K 157608
306
SWITCH LOW PRESSURE
312
BRACKET LIQUID TANK
318
SCREW PUMP TO BRACKET
318
SCREW , Replaced By: N304017006016
324
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
324
WASHER COMPRESSED AIR LINE TO BRACKET
330
NUT , Replaced By: N913004006001
330
NUT PUMP TO BRACKET
336
PIPE LINE FROM LIQUID TANK TO EXPANSION VALVE
336
HOSE FROM LIQUID TANK TO EXPANSION VALVE
336
HOSE FROM LIQUID TANK TO EXPANSION VALVE
342
SEAL RING HOSE TO RESERVOIR 10.6 MM
342
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
342
SEAL RING FROM LIQUID TANK TO T-FITTING
342
SEAL RING , Replaced By: A1249970345
342
SEAL RING , Replaced By: A1409970645
344
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
344
CLAMP DELIVERY AND SUCTION LINES TO FRAME
344
CLAMP PIPE ON FAN SHROUD
344
CLAMP LINE MOUNTING
346
SCREW CLAMP MOUNTING M 6X16
346
SCREW , Replaced By: N000000001146
348
NUT , Replaced By: N913004006001
348
NUT PUMP TO BRACKET
348
NUT BRACKET TO PIN
350
HOSE FROM EXPANSION VALVE TO RADIATOR SEPARATION POINT
350
PIPE LINE FROM EXPANSION VALVE TO RADIATOR SEPARATION POINT
350
HOSE FROM EXPANSION VALVE TO RADIATOR SEPARATION POINT,5 519721
350
HOSE FROM EXPANSION VALVE TO RADIATOR SEPARATION POINT
350
HOSE FROM EXPANSION VALVE TO RADIATOR SEPARATION POINT,5 406902
350
HOSE FROM EXPANSION VALVE TO RADIATOR SEPARATION POINT
350
HOSE FROM EXPANSION VALVE TO RADIATOR SEPARATION POINT,5 519722
350
HOSE FROM EXPANSION VALVE TO RADIATOR SEPARATION POINT
350
HOSE FROM EXPANSION VALVE TO RADIATOR SEPARATION POINT
357
SEAL RING HOSE TO CONDENSER 14 MM
357
SEAL RING , Replaced By: A1249970545
357
SEAL RING , Replaced By: A1249970345
357
SEAL RING , Replaced By: A1409970845
357
SEAL RING , Replaced By: A1409970945
357
O-RING HOSE TO EXPANSION VALVE 17X2
360
CLAMP HOSE TO HOSE
360
CLAMP HOSE TO HOSE 29 MM
363
CLAMP HOSE TO HOSE M
363
CLAMP HOSE TO HOSE 20 MM
366
CLAMP , Replaced By: A6739950001
366
CLAMP DELIVERY AND SUCTION LINES TO STEERING
369
SCREW BRACKET ON LOAD SENSOR
369
SCREW , Replaced By: N304017006018
369
SCREW COVER PLATE TO COVER PLATE M 6 X 12
370
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
370
WASHER COMPRESSED AIR LINE TO BRACKET
372
NUT , Replaced By: N913004006001
372
NUT PUMP TO BRACKET
390
SCREW , Replaced By: N304017006016
390
SCREW PUMP TO BRACKET
396
NUT , Replaced By: N913004006001
396
NUT PUMP TO BRACKET
402
CLAMP CONNECTING CABLE
402
CLAMP HOSE TO FLANGE AND TO VALVE
408
SCREW CAB FLOOR COVERING M 6X25
408
SCREW LICENSE PLATE TO BRACKET
408
SCREW , Replaced By: N304017006020
420
NUT , Replaced By: N913004006001
420
NUT PUMP TO BRACKET
999
BRACKET CONNECTING HOSE TO CAB MOUNTED ELECTRIC CABLE HARNESS BRACKET
999
BRACKET CONNECTING HOSE TO CAB MOUNTED ELECTRIC CABLE HARNESS BRACKET
999
BRACKET HOSE TO RADIATOR
999
PIPE ELBOW , Replaced By: A6565200006
999
PIPE LINE FROM COMPRESSOR TO RADIATOR SEPARATION POINT
