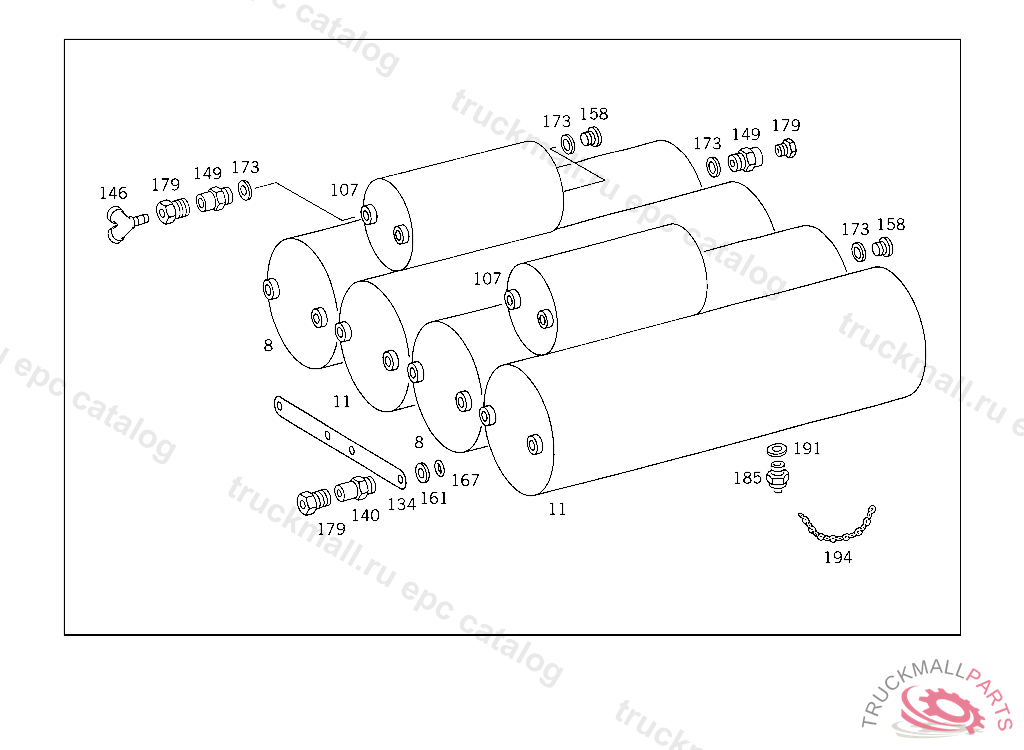

Поз.
Артикул
Описание
8
RESERVOIR40L,276 MM,8.5 BAR
11
RESERVOIR30L,276 MM,8.5 BAR
107
RESERVOIR10L,206 MM,8.5 BAR
146
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
158
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
158
SCREW PLUG , Replaced By: N000908022011
161
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
161
THRUST RING CHECK VALVE TO AIR RESERVOIR
167
O-RING CHECK VALVE TO AIR RESERVOIR
173
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
179
SCREW. UNION SCREW LINE CONNECTION
185
VALVE. DRAIN VALVE DRAIN
185
VALVE DRAIN, Replaced By: A0004322407
185
VALVE DRAIN, Replaced By: A0004322107
185
VALVE (DRAIN VALVE)
191
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
194
CHAIN WATER SEPARATOR
