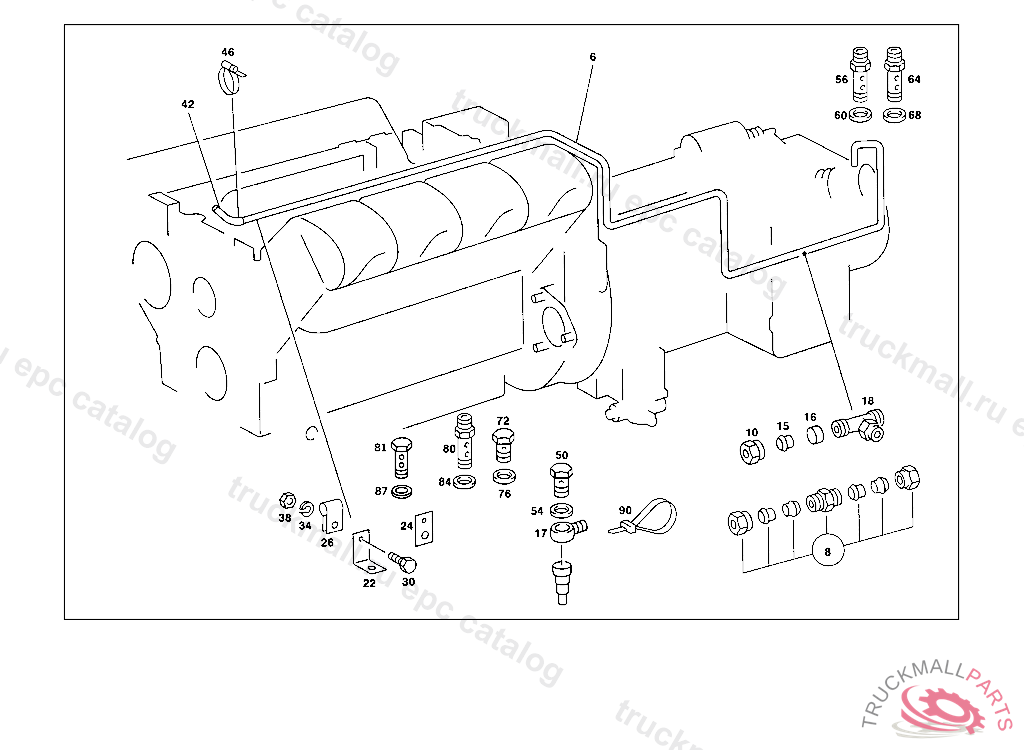

Поз.
Артикул
Описание
6
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
6
PLASTIC PIPE RISING PIPE 4X6 MM
6
LINE , Replaced By: A0004296201
6
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
8
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
10
UNION NUT
15
SEAL CONE
15
GLAND , Replaced By: A0019901667
16
SLEEVE LEAK LINE
17
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
17
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
18
T-FITTING. FITTING AT INJECTION PUMP
22
ANGLE LINE MOUNTING
22
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
22
BRACKET , Replaced By: A3524290740
22
BRACKET , Replaced By: A3875015820
24
BRACKET FUEL LINE TO BELL HOUSING
24
BRACKET LINE MOUNTING
24
BRACKET , Replaced By: A6454310740
26
CLAMP LINE MOUNTING
30
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
34
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
38
NUT BALL PIVOT TO LEVER
42
BRAKE HOSE FROM FITTING TO REAR AXLE ONE-CIRCUIT PISTON CYLINDER 450 MM
46
CLAMP HOSE TO FITTING
50
HOLLOW SCREW LINE CONNECTION
54
SEAL RING LINE CONNECTION
56
HOLLOW SCREW FITTING COMPRESSED AIR LINE TO P.T.O. CYLINDER
60
SEAL RING PNEUMATIC VALVE
60
SEAL RING , Replaced By: N007603010110
64
HOLLOW SCREW FITTING CYLINDER,CONNECTION: "10"
64
HOLLOW SCREW FITTING SHIFTING CYLINDER
64
HOLLOW SCREW FITTING SHIFTING CYLINDER
68
SEAL RING LINE CONNECTION
68
SEAL RING LINE CONNECTION
72
HOLLOW SCREW HEATING CONNECTION
76
HOLLOW SCREW LINE CONNECTION
76
HOLLOW SCREW LINE CONNECTION
76
HOLLOW SCREW LINE CONNECTION
76
HOLLOW SCREW LINE CONNECTION
76
HOLLOW SCREW LINE CONNECTION
76
SEAL RING LINE CONNECTION
80
HOLLOW SCREW FITTING SHIFTING CYLINDER
80
HOLLOW SCREW FITTING SHIFTING CYLINDER
81
HOLLOW SCREW LINE CONNECTION
84
SEAL RING LINE CONNECTION
84
SEAL RING LINE CONNECTION
87
SEAL RING LINE CONNECTION
90
LOOM TIE LINE MOUNTING 280 MM
90
LOOM TIE LINE MOUNTING
999
HOLLOW SCREW FITTING COMPRESSED AIR LINE TO OPERATING CYLINDER
