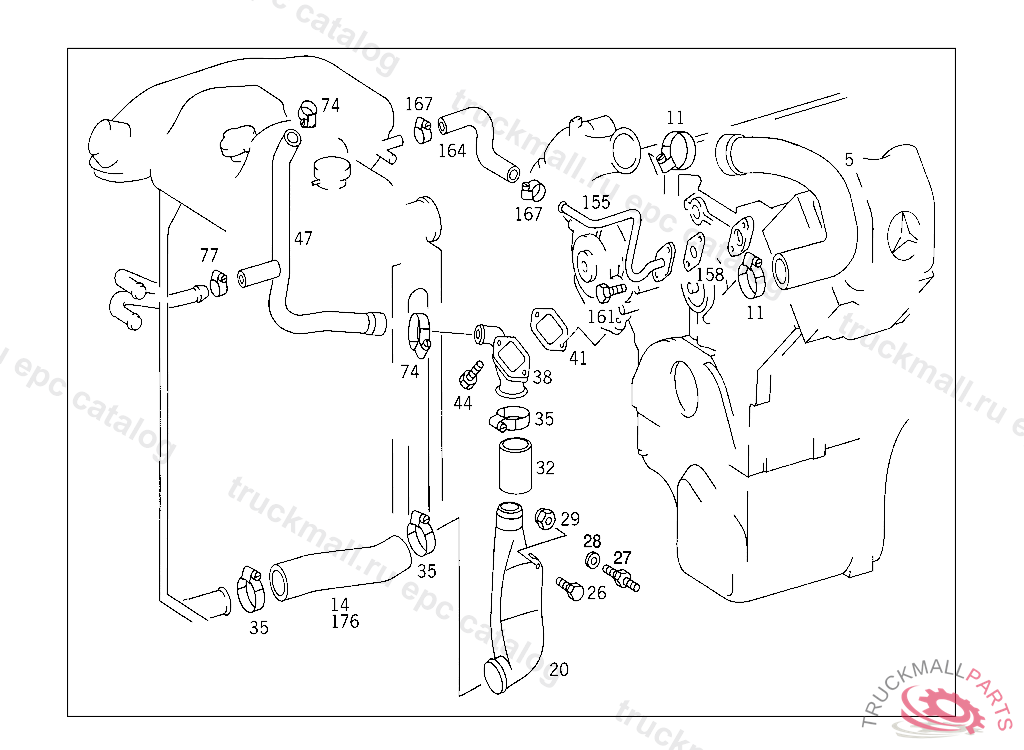

Поз.
Артикул
Описание
5
HOSE FROM RADIATOR TO THERMOSTAT
11
CLAMP , Replaced By: N000000000674
11
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
14
HOSE FROM RADIATOR OUTLET TO WATER PUMP
14
HOSE FROM RADIATOR OUTLET TO WATER PUMP
20
PIPE ELBOW AT WATER PUMP,5 510518
20
PIPE ELBOW AT WATER PUMP,5 1935955 510517
20
PIPE ELBOW FOR SCREW FITTING
26
SCREW BRACKET TO FRAME SIDE MEMBER
27
PIN PIPE ELBOW TO BRACKET,K 023462
28
SPACER RING PIPE ELBOW TO BRACKET,K 023462
29
NUT STRAP TO BRACKET
29
NUT , Replaced By: N910113010000
32
HOSE FROM RADIATOR OUTLET TO WATER PUMP, ORDER BY THE METER
35
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 60-80X13 MM
35
CLAMP , Replaced By: N000000000674
38
CONNECTOR FOR SCREW FITTING
41
GASKET CONNECTOR
41
GASKET CONNECTOR, Replaced By: A0002011180
41
GASKET CONNECTOR, Replaced By: A0002011280
41
GASKET CONNECTOR, Replaced By: A0002011080
44
SCREW STRAP TO BRACKET
44
SCREW END PIECE TO EXHAUST PIPE M 10X25
47
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
74
CLAMP
74
CLAMP , Replaced By: N000000000670
77
CLAMP , Replaced By: N000000000667
77
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
155
BREATHER PIPE ENGINE BREATHING
158
GASKET. SEAL DE-AERATION PIPE TO ENGINE
161
SCREW END PIECE TO EXHAUST PIPE M 10X25
164
HOSE DE-AERATION PIPE TO EXPANSION TANK
167
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
167
CLAMP HOSE TO FITTING AND TO OIL TANK
999
WASHER , Replaced By: A1894660751
999
GASKET , Replaced By: A4422010480
999
PIPE ELBOW , Replaced By: A6555010756
999
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6555013382
999
HOSE , Replaced By: A3875011082
