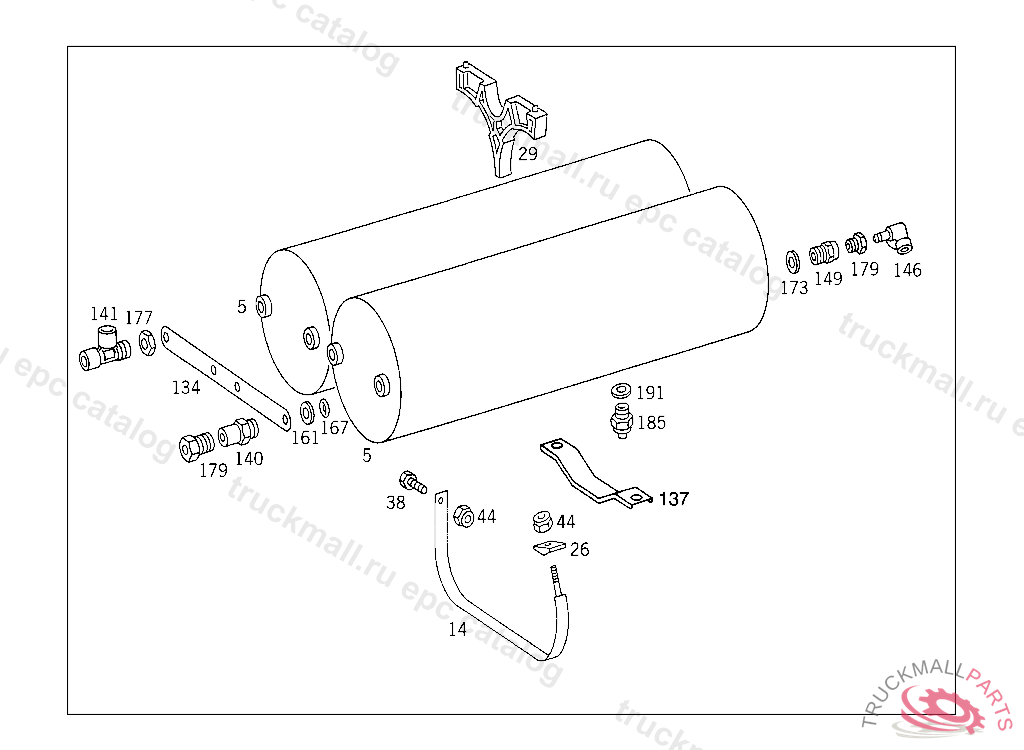

Поз.
Артикул
Описание
5
RESERVOIR40L,246 MM,8.5 BAR
5
RESERVOIR , Replaced By: A0034322301
14
STRAP SERVICE BRAKE AIR RESERVOIR
26
BASE AIR RESERVOIR STRAP
29
BASE AIR RESERVOIR,STRAP
38
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
44
NUT , Replaced By: N910113010000
44
NUT STRAP TO BRACKET
134
LOCK (PROTECTION AGAINST TORSION),5 934167
137
LOCK (PROTECTION AGAINST TORSION),5 934168
140
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
141
FITTING FRONT-AXLE/REAR-AXLE REGULATING SOLENOID VALVE,CONNECTIONS: "20,21,22"
146
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
149
FITTING LINE CONNECTION
161
THRUST RING CHECK VALVE TO AIR RESERVOIR
161
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
167
O-RING CHECK VALVE TO AIR RESERVOIR
173
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
177
NUT CHECK VALVE TO AIR RESERVOIR
179
SCREW. UNION SCREW LINE CONNECTION
185
VALVE DRAIN, Replaced By: A0004322407
185
VALVE DRAIN, Replaced By: A0004322107
185
VALVE. DRAIN VALVE DRAIN
191
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
