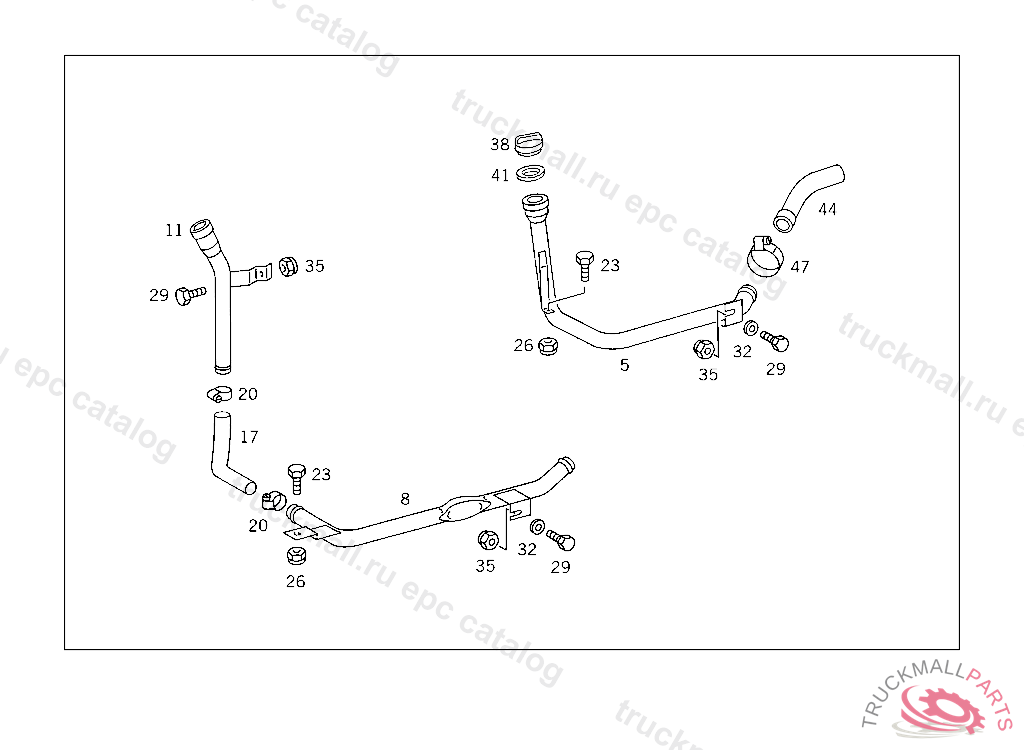

Поз.
Артикул
Описание
5
PIPE ELBOW (OIL FILLER PIPE)
29
SCREW , Replaced By: N308676012026
29
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
29
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
32
WASHER
35
NUT , Replaced By: N910113010000
35
NUT STRAP TO BRACKET
35
NUT SUPPORT TO SIDE MEMBER
38
CAP OIL REFILLING
38
CAP OIL REFILLING
41
GASKET , Replaced By: A1020180380
41
GASKET
44
HOSE , Replaced By: A6205280182
47
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
47
CLAMP , Replaced By: N000000000671
