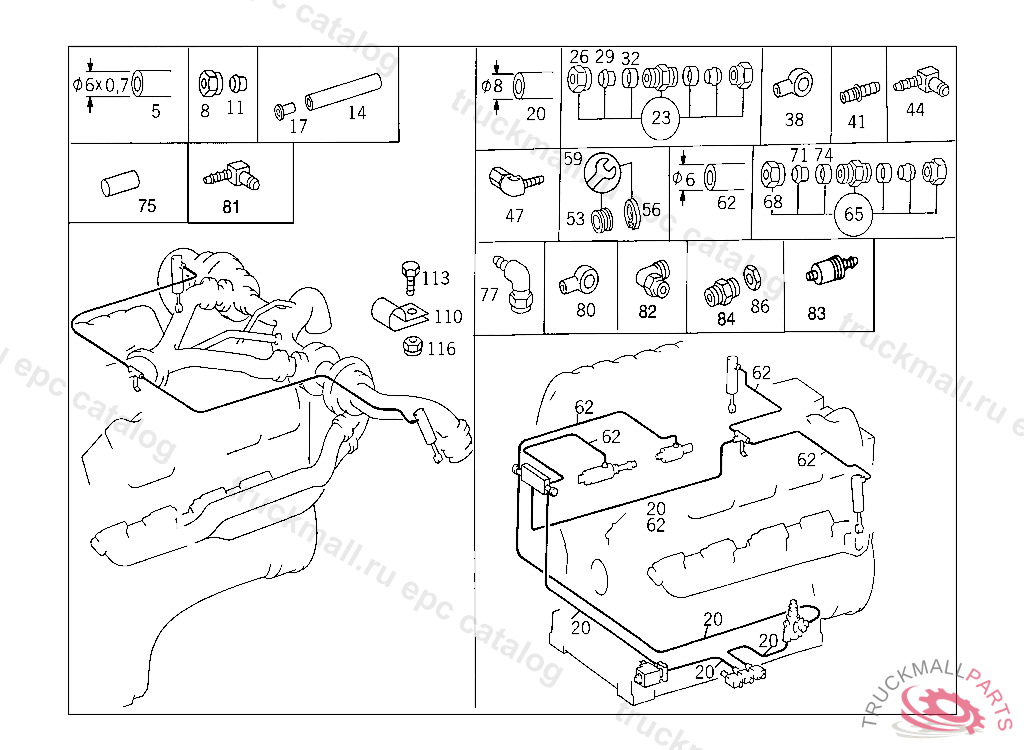

Поз.
Артикул
Описание
20
PLASTIC PIPE AERATION, ORDER BY THE METER
20
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
23
FITTING (PARTS KIT),LINE RUPTURE
26
UNION NUT LINE CONNECTION
29
GLAND LINE CONNECTION
32
SLEEVE LINE CONNECTION
38
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
38
BANJO UNION HEATING CONNECTION,K 169122
41
CONNECTOR HOSE WIDTH, 6 MM,TO M16
41
CONNECTOR , Replaced By: A0029905478
44
ELBOW FITTING , Replaced By: A0049905371
44
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
53
LOCK RING LINE CONNECTION
53
SEAL RING , Replaced By: A0009940747
56
LOCK , Replaced By: A0009945448
56
LOCK LINE CONNECTION
59
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
59
REPAIR KIT , Replaced By: A0309971748
62
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
62
PLASTIC PIPE RISING PIPE 4X6 MM
65
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
68
UNION NUT
71
SEAL CONE
71
GLAND , Replaced By: A0019901667
74
SLEEVE LEAK LINE
77
ELBOW FITTING
80
BANJO UNION HOSE WIDTH, / I.D., 4/14 MM,K 169123
80
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
80
BANJO UNION , Replaced By: N000000000364
999
SHIM 3/2-WAY SOLENOID VALVE
