Поз.
Артикул
Описание

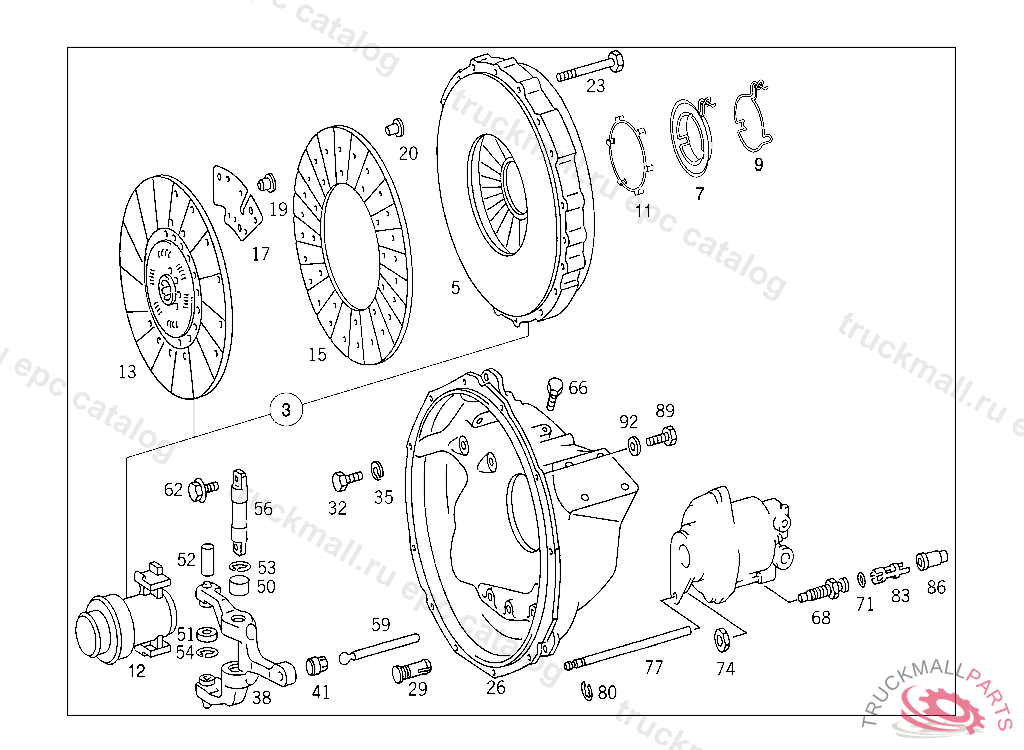

3
CLUTCH PARTS KIT F&S,K 017132
5
CLUTCH PRESSURE PLATEFICHTEL&SACHS,K 017132 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
CLUTCH PRESSURE PLATEVALEO, COMPONENT PARTS NOT AVAILABLE PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
CLUTCH PRESSURE PLATE ,K 017131, Replaced By: A0052508304, +001A0012508615
7
RELEASE RING , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0002520346
7
RELEASE RING REPAIR KIT TO 004 250 88 04
7
RELEASE RING REPAIR KIT TO 005 250 83 04
9
LOCKTO 004 250 88 04, MUST NOT BE EXCHANGED INDIVIDUALLY, USE 000 252 03 46 RANGE OF DELIVERY
11
SPRINGTO 004 250 88 04
12
RELEASE BEARING
12
RELEASE BEARING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0012509715
12
RELEASE BEARING , PLAESE REFER TO NOTE IN FDOK, Replaced By: A0012506215
12
RELEASE BEARING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0012506215, +001A6502503113, +001A6502540006
12
RELEASE BEARING , Replaced By: A0012504715
12
RELEASE BEARING
12
RELEASE BEARING , PLAESE REFER TO NOTE IN FDOK
13
CLUTCH DISC , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0112500403
13
CLUTCH DISC , Replaced By: A0112500403
13
CLUTCH DISC , Replaced By: A0162502703
13
CLUTCH DISC , Replaced By: A0112500403
13
CLUTCH DISC , Replaced By: A0112500403
13
CLUTCH DISC , Replaced By: A0132502603
13
CLUTCH DISC , Replaced By: A0082505103
13
CLUTCH DISC , Replaced By: A0112500403
13
CLUTCH DISC ASBESTOS-FREE LINING, COMPONENT PARTS NOT AVAILABLE
13
CLUTCH DISC ASBESTOS-FREE LINING, COMPONENT PARTS NOT AVAILABLE
13
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
15
CLUTCH LINING ASBESTOS-FREE
15
CLUTCH LINING , Replaced By: A0012528410
17
LEAF SPRING ,5 563495
19
RIVET LEAF SPRING TO CLUTCH DISC
20
RIVET LINING WITH CLUTCH DISC
20
RIVET , Replaced By: A0002524875
23
SCREW CLUTCH TO FLYWHEEL
26
BELL HOUSING
29
PLUG BELL HOUSING
32
SCREW VIBRATION ABSORBER TO CONSOLE
35
LOCK WASHER BELL HOUSING TO TRANSMISSION
38
RELEASE LEVER
38
RELEASE LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.K 281331, Replaced By: A6502503813
38
RELEASE LEVER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.K 048933, Replaced By: A6502503113
38
RELEASE LEVER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6502501313
41
BEARING TOP
50
BUSHING FRONT AND REAR
51
ROLLER
51
ROLLER RELEASE LEVER,K 281332
52
PIN RELEASE LEVER,K 281331
53
SNAP RING FRONT AND REAR
54
SNAP RING FRONT AND REAR,K 281331
56
SPINDLE
59
PIN RELEASE LEVER
62
SCREW RELEASE LEVER TO BELL HOUSING
66
SCREW PLUG BELL HOUSING
68
SCREW WEAR INDICATOR
71
SEAL RING WEAR INDICATOR
74
NUT WEAR INDICATOR
77
PIN WEAR INDICATOR
80
CIRCLIP PIN TO CLUTCH SLAVE CYLINDER BOOT
80
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
83
POINTER CLUTCH LINING WEAR
86
CAP WEAR INDICATOR
89
SCREW RADIATOR M 10X45
92
WASHER RADIATOR TO RUBBER MOUNTING
92
WASHER , Replaced By: N000125010532
999
BELL HOUSING , Replaced By: A6502510301
