Поз.
Артикул
Описание

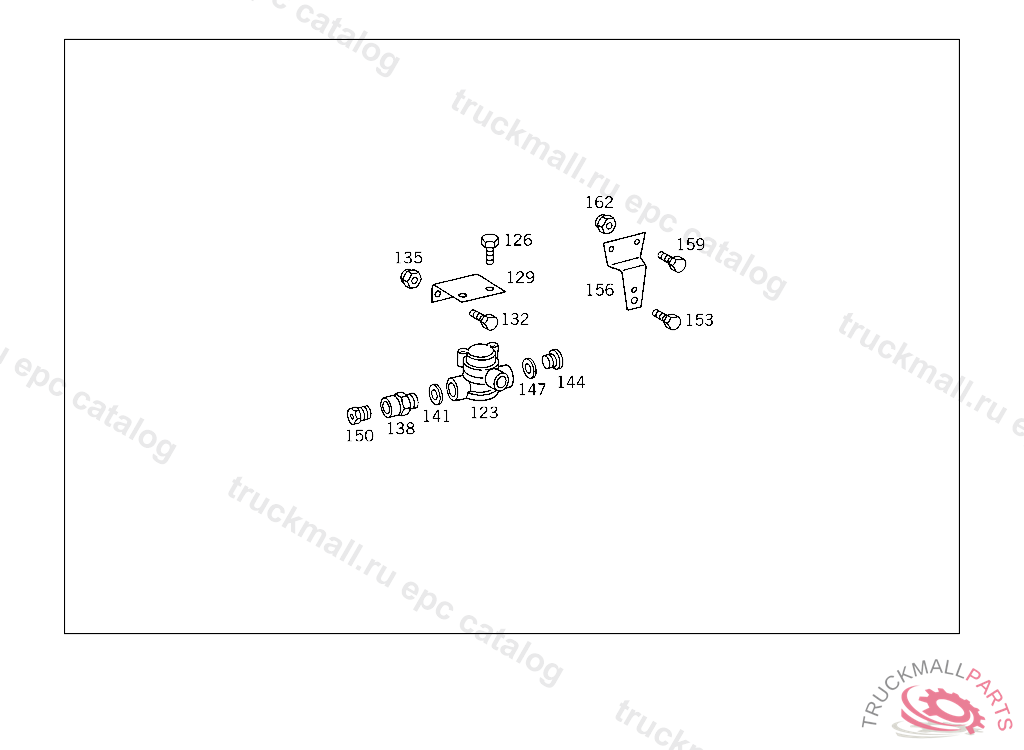

123
VALVE (REDUCTION VALVE)
126
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
126
SCREW , Replaced By: N304017008016
129
BRACKET REDUCTION VALVE, SIMPLE PART-PLEASE HAVE SHOP MADE
132
SCREW BRACKET TO CROSS CONNECTION STRUT
132
SCREW , Replaced By: N304017008034
135
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
135
NUT , Replaced By: N913004008001
135
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
138
FITTING LINE CONNECTION
141
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
144
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
144
SCREW PLUG , Replaced By: N000908022011
147
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
150
SCREW. UNION SCREW LINE CONNECTION
153
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
153
SCREW , Replaced By: N304017008039
156
BRACKET PRESSURE RATIO VALVE,5 585845
159
SCREW , Replaced By: N304017006016
159
SCREW PUMP TO BRACKET
162
NUT , Replaced By: N913004006001
162
NUT PUMP TO BRACKET
