Поз.
Артикул
Описание

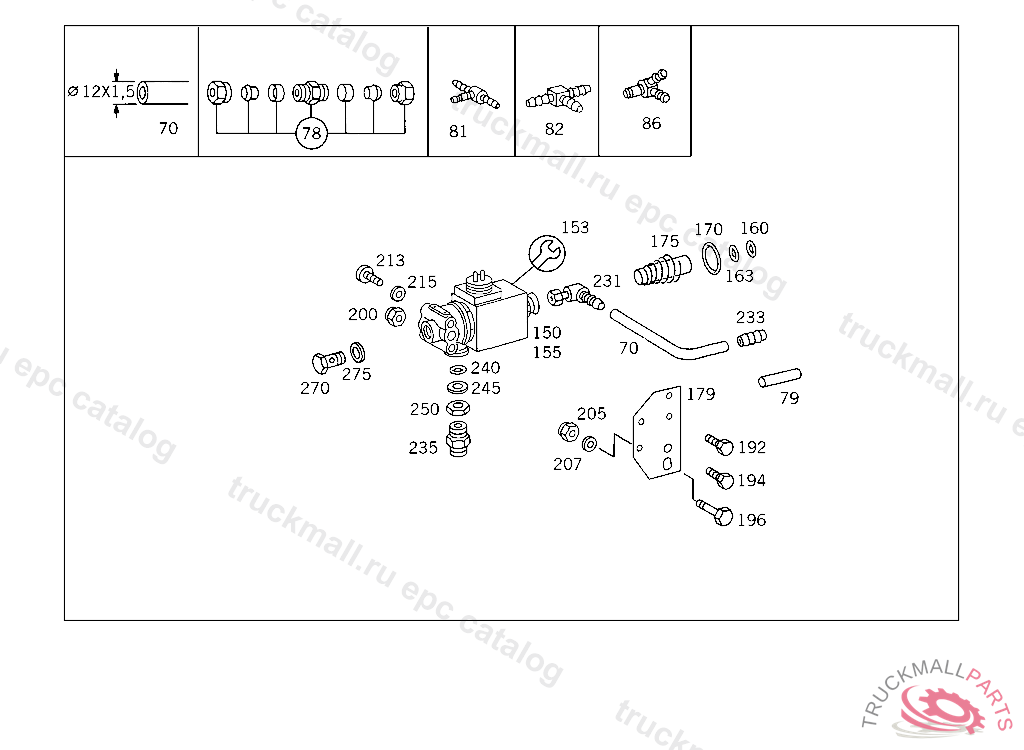

70
HOSE , Replaced By: A0009872827
70
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
78
FITTING (PARTS KIT),LINE RUPTURE
78
FITTING , Replaced By: A0029906171
79
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
81
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
81
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
82
T-FITTING HOSE WIDTH, 9 MM,TO M 22
82
T-FITTING , Replaced By: A0029909070
86
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
86
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
150
VALVE (3/2-WAY SOLENOID VALVE) EKS
150
VALVE , Replaced By: A0049975736
153
GASKET KITKNORR
155
VALVE (3/2-WAY SOLENOID VALVE) WABCO
160
SEAL RINGWABCO
163
SEAL RINGWABCO
170
SEAL RINGWABCO
175
VALVE PARTWABCO
179
BRACKET 3/2-WAY VALVE
192
SCREW PIPE CLAMP
192
SCREW , Replaced By: N304017008021
194
SCREW BRACKET TO SIDE MEMBER
196
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
196
SCREW , Replaced By: N308676012012
200
NUT , Replaced By: N913004008001
200
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
200
WASHER 3/2-WAY VALVE TO BRACKET
205
NUT SUPPORT TO SIDE MEMBER
207
WASHER RADIATOR TO RUBBER MOUNTING
207
WASHER , Replaced By: N000125010532
213
SCREW TO PLUG THE FREE CONNECTIONS
215
SEAL RINGBOSCH
231
ELBOW FITTING 3/2-WAY VALVE BREATHING
233
PLUG 3/2-WAY VALVE BREATHING
235
FITTING SHUTTLE VALVE TO BRAKE CYLINDER
240
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
240
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
245
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
245
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
245
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
250
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
270
HOLLOW SCREW LINE CONNECTION
270
HOLLOW SCREW HEATING CONNECTION
275
SEAL RING LINE CONNECTION
275
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
999
PLUG EXHAUST BRAKE VALVE, CONNECTION: "20"
999
NUT , Replaced By: N913004008001
999
NUT EXHAUST BRAKE VALVE, CONNECTION: "20"
