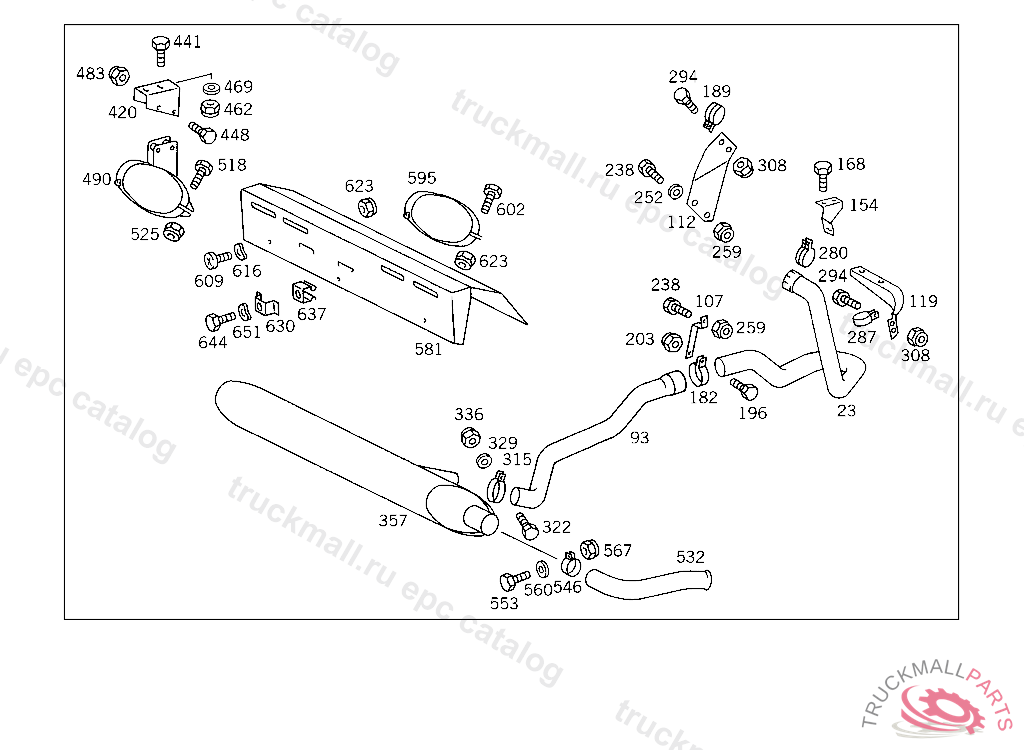

Поз.
Артикул
Описание
23
EXHAUST PIPE FRONT
23
EXHAUST PIPE FRONT
23
PART NAME MISSING , Replaced By: A6534900920
23
EXHAUST PIPE , Replaced By: A6534900920
23
EXHAUST PIPE , Replaced By: QAV4901000728
93
CONNECTOR FRONT
107
BRACKET AT SIDE MEMBER, REPAIR SOLUTION FOR PENDANT OIL FILTER5 521312
107
BRACKET AT SIDE MEMBER,5 521311
112
BRACKET AT SIDE MEMBER
112
BRACKET AT SIDE MEMBER
119
BRACKET LEFT
119
BRACKET AT CROSS MEMBER
154
BRACKET LEFT EXHAUST PIPE
168
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
182
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
182
CLAMP INTERMEDIATE PIECE
182
CLAMP , Replaced By: N071555100501
189
CLAMP AT CROSS MEMBER
196
SCREW , Replaced By: N304017010002
196
SCREW END PIECE TO EXHAUST PIPE M 10X25
196
SCREW BRACKET TO SIDE MEMBER
203
NUT STRAP TO BRACKET
203
NUT , Replaced By: N910113010000
238
SCREW END PIECE TO EXHAUST PIPE M 12X30
238
SCREW PIPE CLAMP
238
SCREW BRACKET TO SIDE MEMBER
238
SCREW BRACKET TO SIDE MEMBER
238
SCREW , Replaced By: N304017014011
238
SCREW , Replaced By: N304017012020
238
SCREW , Replaced By: N304017010002
238
SCREW , Replaced By: N304017008021
252
WASHER , Replaced By: N000125010532
252
WASHER RADIATOR TO RUBBER MOUNTING
259
NUT BRACKET TO SIDE MEMBER
259
NUT STRAP TO BRACKET
259
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
259
NUT END PIECE TO EXHAUST PIPE
259
NUT , Replaced By: N910113010000
259
NUT , Replaced By: N913004008001
280
CLAMP EXHAUST PIPE TO BRACKET
287
CLAMP AT CROSS MEMBER
287
CLAMP INTERMEDIATE PIECE
294
SCREW , Replaced By: N304017010002
294
SCREW EXHAUST PIPE TO BRACKET
294
SCREW BRACKET TO SIDE MEMBER
308
NUT STRAP TO BRACKET
308
NUT , Replaced By: N910113010000
308
NUT , Replaced By: N913004008001
308
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
315
CLAMP EXHAUST PIPE TO MUFFLER
315
CLAMP INTERMEDIATE PIECE
315
CLAMP INTERMEDIATE PIECE
315
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
315
CLAMP EXHAUST PIPE TO MUFFLER
322
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
322
SCREW STRAP TO BRACKET
322
SCREW END PIECE TO EXHAUST PIPE M 10X25
322
SCREW PIPE CLAMP
322
SCREW , Replaced By: N304017008021
322
SCREW , Replaced By: N304014008021
329
WASHER , Replaced By: N000125008443
329
WASHER EXHAUST MUFFLER TO STRAP
336
NUT STRAP TO BRACKET
336
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
336
NUT , Replaced By: N910113010000
336
NUT , Replaced By: N913004008001
336
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
357
EXHAUST MUFFLER , Replaced By: A6764900301
357
EXHAUST MUFFLER , Replaced By: A6764900401
357
EXHAUST MUFFLER , Replaced By: A6764901001
357
EXHAUST MUFFLER
357
EXHAUST MUFFLER
357
EXHAUST MUFFLER , TO BE ADAPTED DURING ASSEMBLY
357
EXHAUST MUFFLER
420
BRACKET AT SIDE MEMBER
441
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
441
SCREW BRACKET TO EXHAUST MUFFLER BRACKET
441
SCREW BRACKET TO SIDE MEMBER
448
SCREW
448
SCREW , Replaced By: N304017010051
462
NUT SUPPORT TO SIDE MEMBER
469
WASHER
483
NUT STRAP TO BRACKET
483
NUT , Replaced By: N910113010000
490
BRACKET (STRAP) EXHAUST MUFFLER
490
STRAP EXHAUST MUFFLER
518
SCREW END PIECE TO EXHAUST PIPE M 10X25
518
SCREW BRACKET TO SIDE MEMBER
518
SCREW , Replaced By: N304017010002
525
NUT , Replaced By: N910113010000
525
NUT STRAP TO BRACKET
532
REAR EXHAUST PIPE TAIL PIPE
532
REAR EXHAUST PIPE TAIL PIPE
532
END PIECE TAIL PIPE,K 082900
532
END PIECE , Replaced By: A6534920114
532
END PIECE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 928917, Replaced By: A6534920114
532
REAR EXHAUST PIPE TAIL PIPE
546
CLAMP , Replaced By: N071555100501
546
CLAMP , Replaced By: N071555090502
546
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
546
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
546
CLAMP EXHAUST PIPE TO MUFFLER
553
SCREW BRACKET TO SIDE MEMBER
553
HEXAGON HEAD BOLT. SCREW EXHAUST PIPE TO MUFFLER
553
SCREW , Replaced By: N304017010002
553
SCREW , Replaced By: N304014008021
560
WASHER , Replaced By: N000125008443
560
WASHER EXHAUST MUFFLER TO STRAP
567
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
567
NUT STRAP TO BRACKET
567
NUT , Replaced By: N910113010000
567
NUT , Replaced By: N913004008001
567
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
581
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER AND LICENSES PLATE
581
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER AND LICENSES PLATE
581
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER AND LICENSES PLATE
581
PROTECTIVE PLATE (HEAT SHIELD),EXHAUST MUFFLER AND LICENSES PLATE
595
CLAMP PROTECTIVE PLATE TO EXHAUST MUFFLER
595
CLAMP PROTECTIVE PLATE TO EXHAUST MUFFLER
595
CLAMP PROTECTIVE PLATE TO EXHAUST MUFFLER
602
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
609
SCREW BRACKET TO CROSS CONNECTION STRUT
609
SCREW PROTECTIVE PLATE TO BRACKET
609
BOLT. SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
609
SCREW , Replaced By: A0029904212
609
SCREW , Replaced By: N304017008034
616
SPRING WASHER , Replaced By: N000137008212
616
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
623
NUT STRAP TO BRACKET
623
NUT , Replaced By: N910113010000
630
BRACKET LICENSE PLATE
637
NUT RETAINER , Replaced By: A0009902291
637
NUT RETAINER , Replaced By: A0019906791
637
NUT RETAINER LICENSE PLATE TO BRACKET
644
SCREW , Replaced By: N304017006020
644
SCREW LICENSE PLATE TO BRACKET
651
SPRING WASHER LICENSE PLATE TO BRACKET
999
PROTECTIVE PLATE LEFT EXHAUST PIPE, REPAIR SOLUTION FOR PENDANT OIL FILTER5 521312
999
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
999
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
STRAP STRAP TO SUPPORT
999
EXHAUST PIPE
999
CONNECTOR FRONT
999
CONNECTOR FRONT,K 087975
999
BRACKET AT SIDE MEMBER
999
BRACKET FRONT EXHAUST PIPE
999
INTERMEDIATE PIECE FRONT,K 087976
999
EXHAUST PIPE FRONT,K 087976
999
EXHAUST PIPE FRONT,K 087975
999
STRAP EXHAUST MUFFLER
999
CLAMP UPPER EXHAUST PIPE TO BRACKET
999
PROTECTIVE PLATE FUEL TANK
