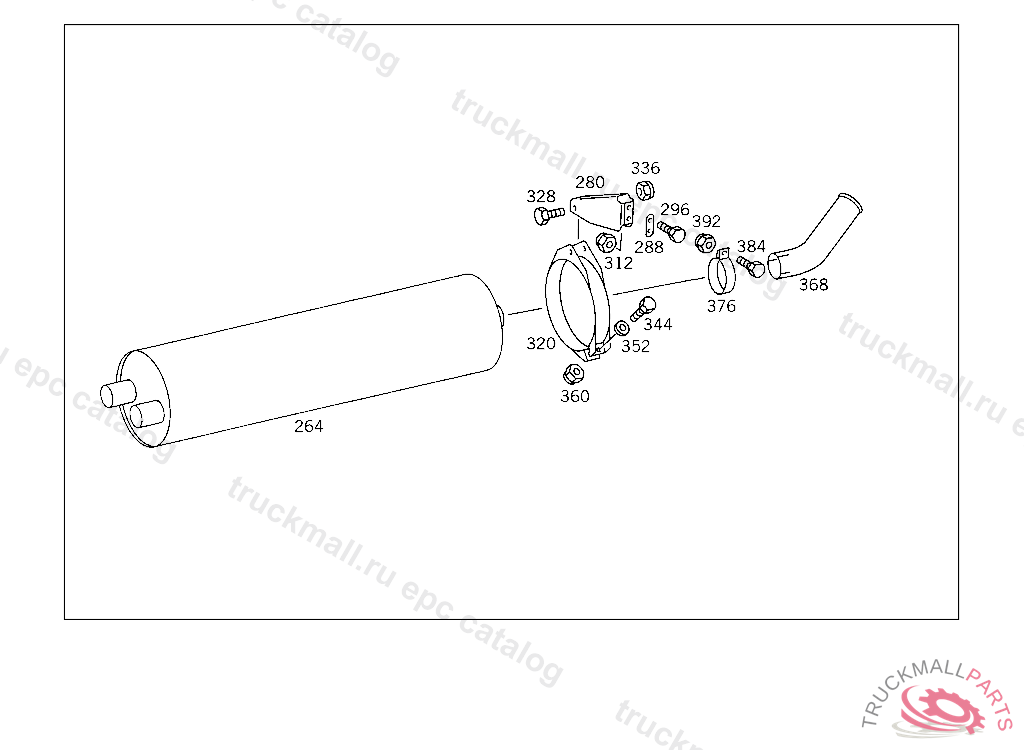

Поз.
Артикул
Описание
264
EXHAUST MUFFLER CENTRAL
280
BRACKET EXHAUST MUFFLER SUSPENSION, TO BE ADAPTED DURING ASSEMBLY
288
SHIM BRACKET TO SPRING SADDLE
296
SCREW APPARATUS SUPPORT TO FRAME
296
SCREW , Replaced By: A9429901304
296
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
312
NUT , Replaced By: N910113014000
312
NUT STEERING SUPPORT TO FRAME
320
STRAP EXHAUST MUFFLER TO BRACKET
328
SCREW STRAP TO BRACKET
336
NUT STRAP TO BRACKET
336
NUT , Replaced By: N910113010000
344
SCREW EXHAUST MUFFLER TO STRAP
352
WASHER EXHAUST MUFFLER TO STRAP
352
WASHER , Replaced By: N000125008443
360
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
360
NUT , Replaced By: N913004008001
360
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
368
REAR EXHAUST PIPE TAIL PIPE,FRONT
376
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
376
CLAMP , Replaced By: N071555090502
384
SCREW , Replaced By: N304017010002
384
SCREW BRACKET TO SIDE MEMBER
392
NUT STRAP TO BRACKET
392
NUT , Replaced By: N910113010000
999
FLAP (RAIN DEFLECTOR)
999
PROTECTIVE PLATE FUEL TANK
999
CLAMP , Replaced By: A6454921140
999
BRACKET STRUT
999
BRACKET EXHAUST PIPE TO FRAME
999
BRACKET EXHAUST MUFFLER
999
REAR EXHAUST PIPE
999
CLAMP EXHAUST PIPE TO BRACKET
999
CONNECTOR ,5 489380
999
CONNECTOR ,5 489381
999
CONNECTOR ,5 771070
999
CONNECTOR ,5 771071K 107092
999
CONNECTOR ,K 110092
999
CONNECTOR ,K 110092
999
CONNECTOR ,K 107093
999
BRACKET BRACKET TO CROSS MEMBER
999
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
999
CLAMP , Replaced By: N071555090501
999
BRACKET BRACKET TO APPARATUS SUPPORT
999
END PIECE
999
BRACKET BRACKET TO CROSS CONNECTION STRUT
999
BRACKET BRACKET TO CROSS CONNECTION STRUT
999
PLATE , Replaced By: A3853230084
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SCREW , Replaced By: N304017008018
999
SCREW , Replaced By: N304017008027
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017010002
999
SCREW SUPPORT TO CROSS MEMBER M 10X28
999
SCREW , Replaced By: N308676014020
999
CLAMP , Replaced By: N071555090502
999
CLAMP , Replaced By: N071555094502
999
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
SCREW SUPPORT TO FENDER
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
999
NUT BRACKET TO SIDE MEMBER
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N910113014001
