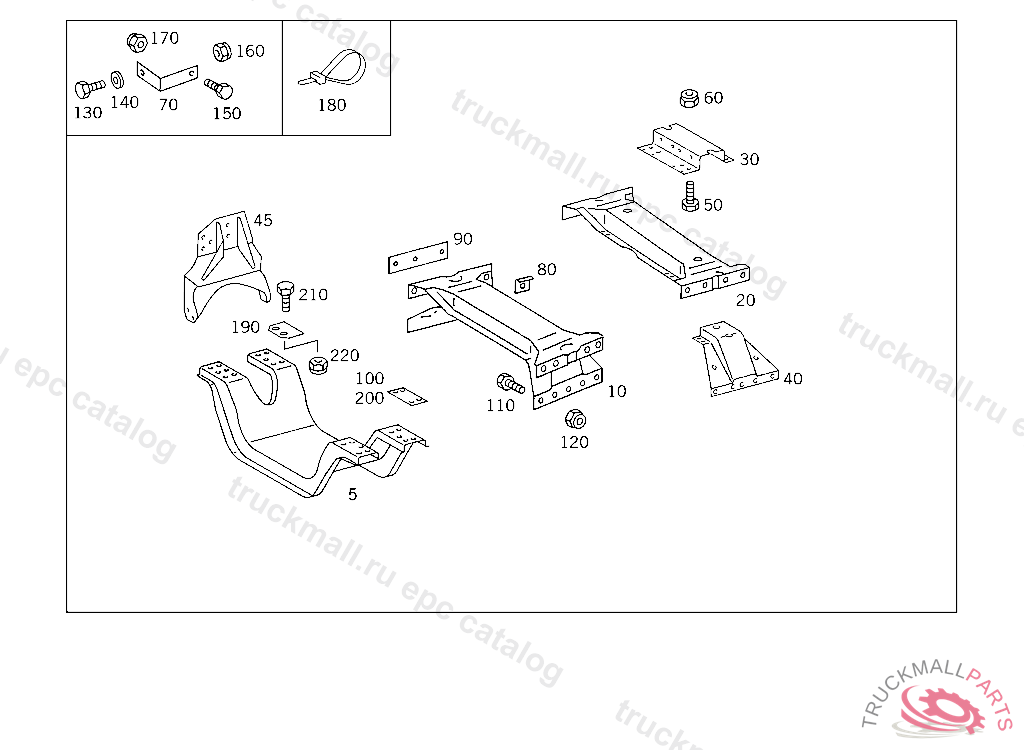

Поз.
Артикул
Описание
5
CROSS MEMBER FRONT SPRING REAR BRACKET
10
CROSS MEMBER
10
CROSS MEMBER RIGHT
10
CROSS MEMBER
10
CROSS MEMBERNO.3, TO BE ADAPTED DURING ASSEMBLY
10
CROSS MEMBER
10
CROSS MEMBER
10
CROSS MEMBER , TO BE ADAPTED DURING ASSEMBLY
10
CROSS MEMBERBM 655.132/182
10
CROSS MEMBERNO.5A
10
CROSS MEMBER
10
CROSS MEMBER
10
CROSS MEMBER IN FRAME BEND
10
CROSS MEMBER LEFT
10
CROSS MEMBER ,K 069294
10
CROSS MEMBERNO.4A
10
CROSS MEMBER
10
CROSS MEMBER
10
CROSS MEMBER
10
CROSS MEMBER , Replaced By: A6483120125, +001A6483120225, +001A6483120361, +001A6483120461, +001A6483120365
10
CROSS MEMBER , Replaced By: A3913100136
10
CROSS MEMBER , Replaced By: A3913100136
10
CROSS MEMBER , Replaced By: A6553120125, +001A6553120225, +002A3873121961, +001A6553120065
10
CROSS MEMBER , Replaced By: A6573100037
10
CROSS MEMBER , Replaced By: A3873120025, +002A3873121961
10
CROSS MEMBER , Replaced By: A3893120025, +002A3873120261
10
CROSS MEMBER , Replaced By: A6593101537
20
CROSS MEMBER , Replaced By: A6483120125, +001A6483120225, +001A6483120361, +001A6483120461, +001A6483120365
20
CROSS MEMBER , Replaced By: A3893120125, +002A3933120161
20
CROSS MEMBER , Replaced By: A3873120025, +002A3873121961
20
CROSS MEMBER , Replaced By: A6243120025
20
CROSS MEMBER , Replaced By: A6243120025
20
CROSS MEMBERNO.3A
20
CROSS MEMBER LEFT NO.3
20
CROSS MEMBERNO.3A
20
CROSS MEMBER RIGHT NO.3
20
CROSS MEMBERNO.3A
30
STRUT CROSS MEMBER
30
STRUT CENTRAL
30
STRUT , Replaced By: A6483120265
40
STRUT , Replaced By: A6483120261
40
STRUT LEFT AND RIGHT
40
STRUT LEFT AND RIGHT
40
STRUT RIGHT
40
STRUT LEFT AND RIGHT
40
STRUT LEFT AND RIGHT
40
STRUT LEFT
45
STRUT , Replaced By: A6203121561
45
STRUT , Replaced By: A6203121561
45
STRUT FRONT SPRING REAR BRACKET,5 313280
50
SCREW , Replaced By: A0029908201
50
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
60
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
60
NUT , Replaced By: N910113012003
70
BRACKET BRACKET TO CROSS MEMBER
80
SHIM CROSS MEMBER AND STRUT TO SIDE MEMBER
90
SHIM SUPPORT TO SIDE MEMBER
100
SHIM CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET
110
SCREW UNDERRUN PROTECTION AND BRACKET TO FRAME M 14X1.5X38
110
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
110
SCREW REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS M 14X48
110
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
110
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
110
SCREW SUPPORT TO FRAME M 14X32,5 129244
110
SCREW BRACKET TO CAB CONSOLE,K 035197
110
SCREW , Replaced By: N308676014020
120
NUT , Replaced By: N910113014001
120
NUT BRACKET TO SIDE MEMBER
130
SCREW , Replaced By: N304017008021
130
SCREW PIPE CLAMP
140
WASHER , Replaced By: N009021008213
140
WASHER BRACKET TO LEFT SIDE MEMBER
150
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
160
NUT , Replaced By: N913004008001
160
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
170
NUT , Replaced By: N910113012003
170
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
180
LOOM TIE LINE MOUNTING
190
SHIM CROSS MEMBER TO SUPPORT
200
SHIM CROSS MEMBER WITH SHIM TO FRONT SPRING REAR BRACKET
210
SCREW CONSOLE TO SIDE MEMBER M 14X1.5X38
210
SCREW STRUT TO FRAME M 14X1.5X42
220
NUT BRACKET TO SIDE MEMBER
220
NUT , Replaced By: N910113014001
999
NUT PARTICLE FILTER M14
999
SCREW VERTICAL TAIL PIPE BEHIND CAB
999
SCREW , Replaced By: N910105014010
999
SCREW BRACKET TO SIDE MEMBER M 14X55,5 543914
999
CROSS MEMBERNO.4, 415 5 014669 416 5 000516 417 4 972024
999
SPACER TUBE
999
CROSS MEMBERNO.3
999
CROSS MEMBER , Replaced By: A6483120125, +001A6483120225, +001A6483120361, +001A6483120461, +001A6483120365
999
CROSS MEMBER , Replaced By: A6553120125, +001A6553120225, +002A3953120261, +001A6553120065
999
CROSS MEMBER
999
CROSS MEMBER , Replaced By: A3953100136
999
CROSS MEMBER , Replaced By: A3873120025, +002A3873121961
999
CROSS MEMBER , Replaced By: A6243120025, +002A6243120261
999
CROSS MEMBER , Replaced By: A6593120125, +001A6593120225, +002A6243120261, +001A6553120065
999
CROSS MEMBER , Replaced By: A6593100037
999
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
