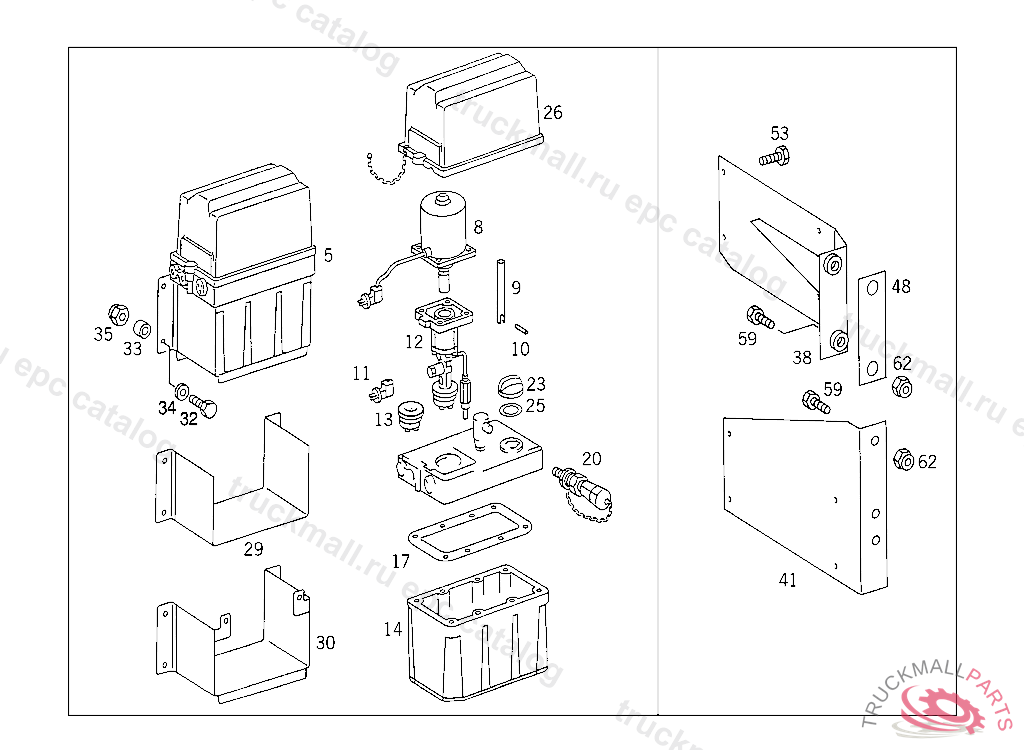

Поз.
Артикул
Описание
5
PUMP WITH FILLER CAP BEKA-MAX
5
PUMP , Replaced By: A0005717001
5
PUMP , Replaced By: A0005714901
5
PUMP , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0005719501
5
PUMP WITH COVER,CONNECTIONS ON THE RIGHT SA 26630, 26631, 26637, 26687
8
ELECTRIC MOTOR , Replaced By: A0005715401
8
ELECTRIC MOTOR , Replaced By: A0005402488
8
ELECTRIC MOTORBEKA-MAX,TO 000 571 46 01, 54 01
9
SHAFT
9
SHAFT , Replaced By: A0005710135
10
CLAMPING PIN2X12 MM
11
PLUG NOT CONFORMING TO DANGEROUS GOODS TRAFFIC REGULATIONS (GGVS)
12
SUCTION PIPE WITH GEARED PUMP BEKA-MAX,TO 000 571 4601, 5401
12
SUCTION PIPE , Replaced By: A0005700256
12
SUCTION PIPE , Replaced By: A0005700256
13
PUMP WITH GEAR BEKA-MAX
14
RESERVOIR , Replaced By: A0005700204
14
RESERVOIR PUMP BEKA-MAX
17
SEAL RING , Replaced By: A0005710780
17
GASKETBEKA-MAX
20
VALVE , Replaced By: A0005711614
20
VALVE GREASE FILLING BEKA-MAX
23
COVER GREASE FILLING
25
GASKET , Replaced By: A1020180380
25
GASKET
26
COVER , Replaced By: A0005711703
26
COVER PUMP BEKA-MAX
29
RETAINING PLATE , Replaced By: A0005710316
29
RETAINING PLATE PUMP VOGEL,TO 000 571 54 01, 49 01, 53 01
30
RETAINING PLATE PUMP VOGEL,TO 000 571 54 01,70 01
30
RETAINING PLATE PUMP BEKA-MAX,TO 000 571 54 01,70 01
32
HEXALOBULAR BOLT. SCREW BRACKET TO CROSS MEMBER M 8X50
32
SCREW BRACKET TO BRACKET
32
SCREW PUMP TO FRAME SIDE MEMBER M 8X40
32
SCREW BRACKET TO CROSS MEMBER M 8X45
32
SCREW , Replaced By: N910142008001
32
SCREW , Replaced By: N910142008009
32
SCREW , Replaced By: N000000001990
32
SCREW CLAMP TO BRACKET,5 597426
33
SPACER TUBE PUMP TO FRAME SIDE MEMBER 14X14 MM
34
WASHER BRACKET TO SIDE MEMBER
35
NUT BRACKET TO BRACKET
41
CONSOLE CENTRAL LUBRICATION PUMP
48
REINFORCEMENT CONSOLE TO REAR CROSS MEMBER
53
SCREW , Replaced By: N910105010011
53
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
59
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
59
SCREW , Replaced By: N910105014010
999
PUMP , Replaced By: A0005719401
999
WASHER , Replaced By: N000125015019
999
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
