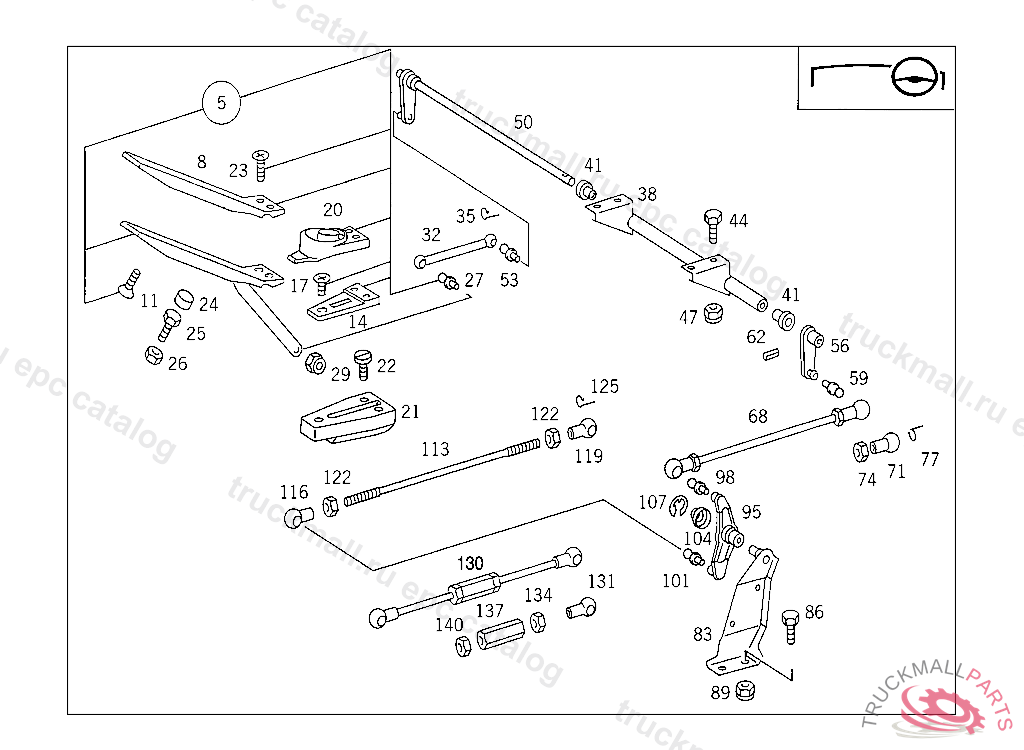

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW PEDAL TO CAB FLOOR
20
BOOT ACCELERATOR PEDAL
21
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
22
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
24
STOP ACCELERATOR PEDAL
25
SCREW VALVE TO BRACKET
25
SCREW VALVE TO BRACKET, Replaced By: N304014008002
26
NUT
27
BALL PIVOT LOAD SENSOR
29
NUT PUMP TO BRACKET
29
NUT , Replaced By: N913004006001
32
BALL SOCKET ROD TO ACCELERATOR PEDAL
35
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
38
BEARING TUBE CONTROL SHAFT
41
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
44
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
SCREW , Replaced By: N304017008016
47
NUT , Replaced By: N913004008001
47
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
47
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
50
SHAFT (CONTROL SHAFT)
53
BALL PIVOT
56
LEVER (CONTROL LEVER)
59
BALL PIVOT
62
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
62
CLAMPING SLEEVE , Replaced By: N308752004001
68
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
71
BALL SOCKET PULL ROD TO LEVER
74
NUT BALL PIVOT TO LEVER
77
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
83
BEARING BRACKET INTERMEDIATE BEARING
86
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
89
NUT STRAP TO BRACKET
89
NUT , Replaced By: N910113010000
95
LEVER (INTERMEDIATE LEVER)
98
BALL STUD. BALL PIVOT TOP B10X4,5 MM
101
BALL PIVOT BOTTOM B13X5 MM
104
COVERING INTERMEDIATE BEARING
107
LOCK PLATE INTERMEDIATE BEARING
113
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
116
BALL SOCKET ROD TO BALL PIVOT
119
BALL SOCKET ROD TO BALL PIVOT
122
NUT
125
SECURING CLIP. CIRCLIP
