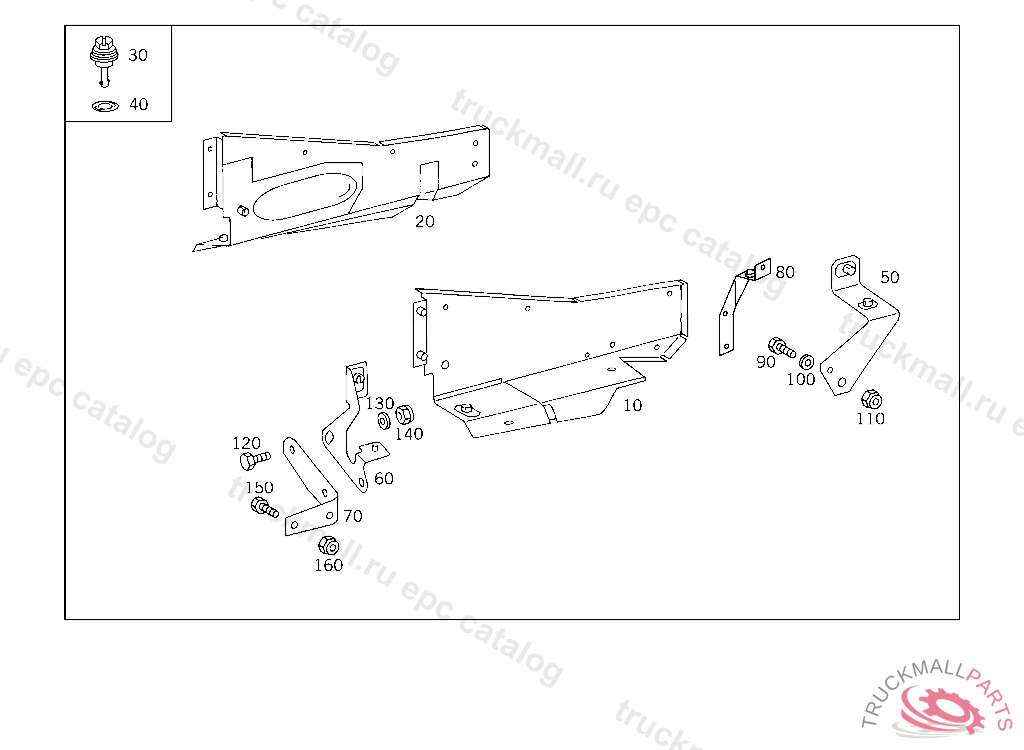

Поз.
Артикул
Описание
10
ANTINOISE CAPSULE LEFT,K 037714
20
ANTINOISE CAPSULE RIGHT,K 037714
30
LOCKING PIN
40
LOCK PROTECTIVE PLATE TO BRACKET
50
BRACKET ANTINOISE CAPSULE,LEFT
50
BRACKET RIGHT FRONT
60
BRACKET RIGHT,K 037714
60
BRACKET LEFT,K 037714
60
BRACKET , Replaced By: A6565200144
70
BRACKET LEFT,K 037714
70
BRACKET RIGHT,K 037714
80
BRACKET RIGHT
80
BRACKET LEFT
90
SCREW , Replaced By: N308676016020
90
SCREW , Replaced By: N304017008027
90
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
90
SCREW CONSOLE TO FRAME
100
WASHER EXHAUST MUFFLER TO STRAP
100
WASHER , Replaced By: N000125008443
110
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
110
NUT , Replaced By: N913004008001
110
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
120
SCREW , Replaced By: N304017008021
120
SCREW PIPE CLAMP
130
WASHER , Replaced By: N000125008443
130
WASHER EXHAUST MUFFLER TO STRAP
140
NUT , Replaced By: N913004008001
140
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
140
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
150
SCREW , Replaced By: N308676012026
150
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
160
NUT SUPPORT TO SIDE MEMBER
