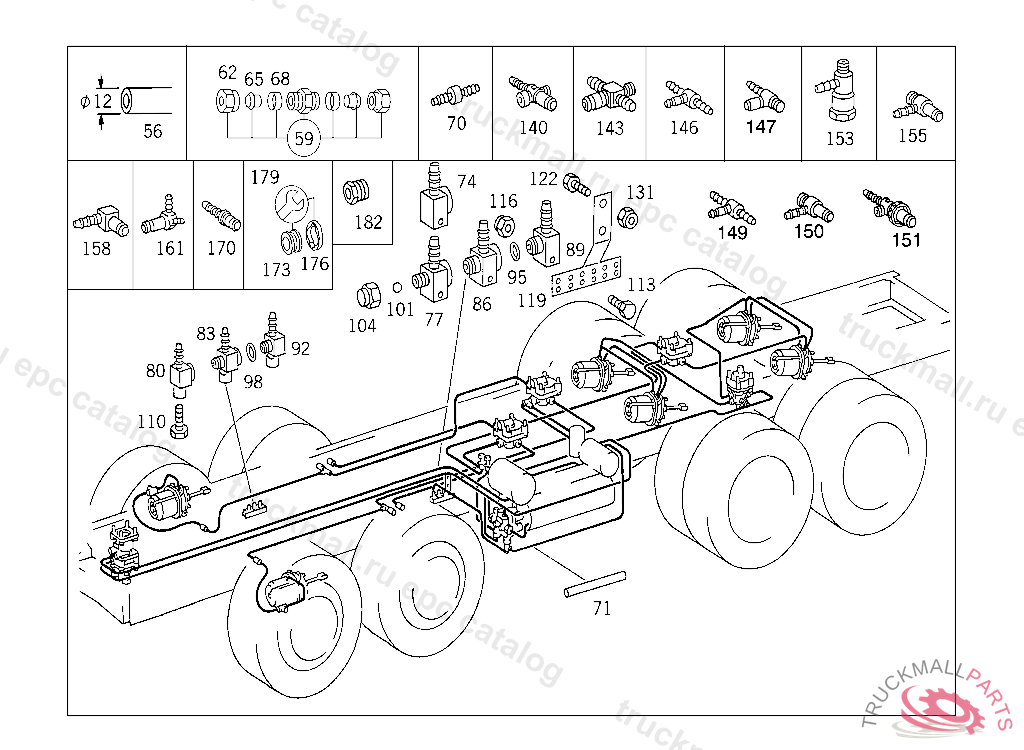

Поз.
Артикул
Описание
56
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
59
FITTING (PARTS KIT),LINE RUPTURE
62
UNION NUT LINE CONNECTION
62
UNION NUT LINE CONNECTION, Replaced By: N000000006239
65
SEAL CONE LINE CONNECTION
65
GLAND , Replaced By: A0019901967
68
SLEEVE LINE CONNECTION
70
CONNECTOR REPAIR SIZE
71
INSULATING HOSE AIR DEHYDRATOR, ORDER BY THE METER
74
CONNECTOR DISTRIBUTOR TO FRAME
74
CONNECTOR , Replaced By: A0019903978
77
CONNECTOR HOSE WIDTH, 9 MM,TO M22
80
CONNECTOR DISTRIBUTOR TO CAB
83
CONNECTOR DISTRIBUTOR TO CAB
83
CONNECTOR DISTRIBUTOR TO CAB
89
CONNECTOR DISTRIBUTOR TO FRAME
92
CONNECTOR DISTRIBUTOR TO CAB
95
SEAL RING , Replaced By: A0229973948
95
SEAL RING CONNECTOR 11.8X2 MM
98
SEAL RING
110
SCREW CONNECTOR TO CAB M6X8
113
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
116
NUT , Replaced By: N913004006001
116
NUT PUMP TO BRACKET
119
BRACKET CONNECTOR TO FRAME
140
DISTRIBUTOR LINE CONNECTION
143
DISTRIBUTOR HOSE WIDTH, 9 MM,TO M 22
146
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
147
T-FITTING
149
T-FITTING HOSE WIDTH, 2X9 MM, TO M 22
150
T-FITTING HOSE WIDTH, 9 MM, TO M 22, M 12X1.5
151
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, M 12X1.5 MM/ 9 MM
155
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
158
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
161
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
161
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
170
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
173
LOCK RING LINE CONNECTION
173
SEAL RING , Replaced By: A0009940747
173
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
176
LOCK LINE CONNECTION
176
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
176
LOCK , Replaced By: A0009945448
179
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
179
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
179
REPAIR KIT , Replaced By: A0309971748
182
SCREW. UNION SCREW , Replaced By: A0009973734
182
SCREW. UNION SCREW LINE CONNECTION
182
SCREW. UNION SCREW LINE CONNECTION
