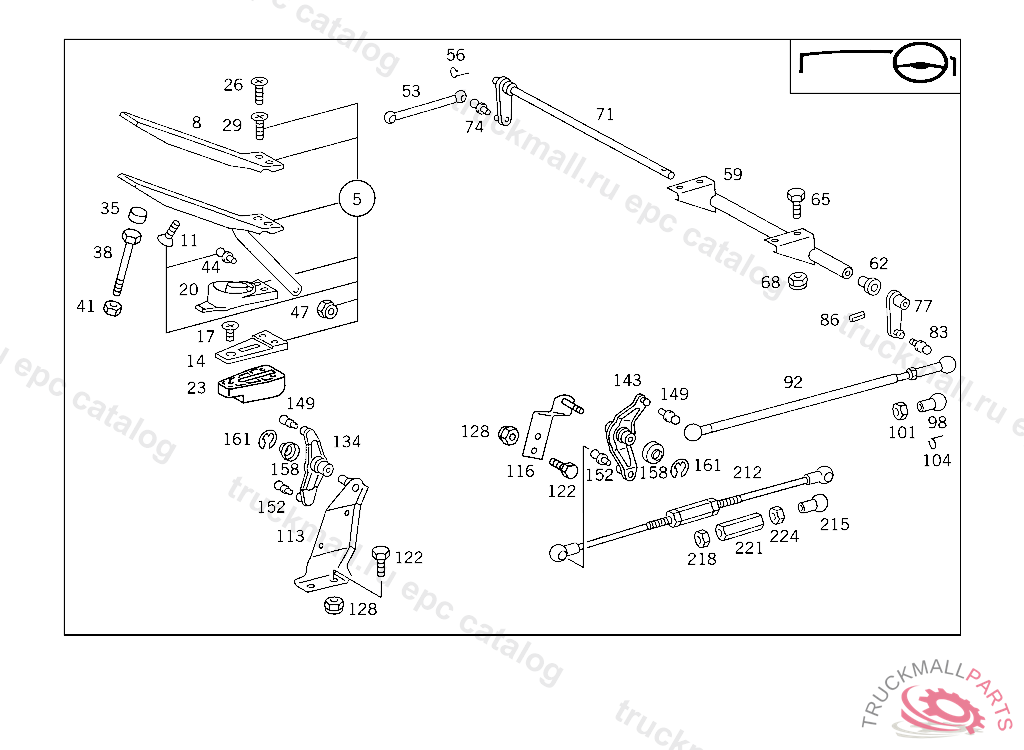

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO FLOOR PLATE M 6X20
20
BOOT ACCELERATOR PEDAL
23
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
26
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
29
SCREW ACCELERATOR PEDAL TO CAB M 6X25
35
STOP ACCELERATOR PEDAL
38
SCREW VALVE TO BRACKET
38
SCREW VALVE TO BRACKET, Replaced By: N304014008002
41
NUT
44
BALL PIVOT LOAD SENSOR
47
NUT AT FILTER BRACKET
53
BALL SOCKET ROD TO ACCELERATOR PEDAL
56
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
59
BEARING TUBE CONTROL SHAFT
62
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
65
SCREW , Replaced By: N304017008016
65
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
68
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
68
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
68
NUT , Replaced By: N913004008001
71
SHAFT (CONTROL SHAFT)
74
BALL PIVOT
77
LEVER (CONTROL LEVER)
83
BALL PIVOT
86
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
86
CLAMPING SLEEVE , Replaced By: N308752004001
92
ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER
98
BALL SOCKET PULL ROD TO LEVER
98
BALL SOCKET PULL ROD TO LEVER
101
NUT BALL PIVOT TO LEVER
104
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
116
BEARING BRACKET INTERMEDIATE BEARING
122
SCREW END PIECE TO EXHAUST PIPE M 10X25
122
SCREW , Replaced By: N304017008034
122
SCREW BRACKET TO CROSS CONNECTION STRUT
128
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
128
NUT , Replaced By: N913004008001
128
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
128
NUT , Replaced By: N910113010000
128
NUT STRAP TO BRACKET
134
LEVER INTERMEDIATE BEARING
143
LEVER (INTERMEDIATE LEVER)
149
BALL STUD. BALL PIVOT TOP B10X4,5 MM
152
BALL PIVOT BOTTOM B13X5 MM
158
COVERING INTERMEDIATE BEARING
161
LOCK PLATE INTERMEDIATE BEARING
212
ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT
215
BALL SOCKET ROD TO BALL PIVOT
218
NUT
221
NUT TURNBUCKLE
224
NUT BALL SOCKET TO ROD
