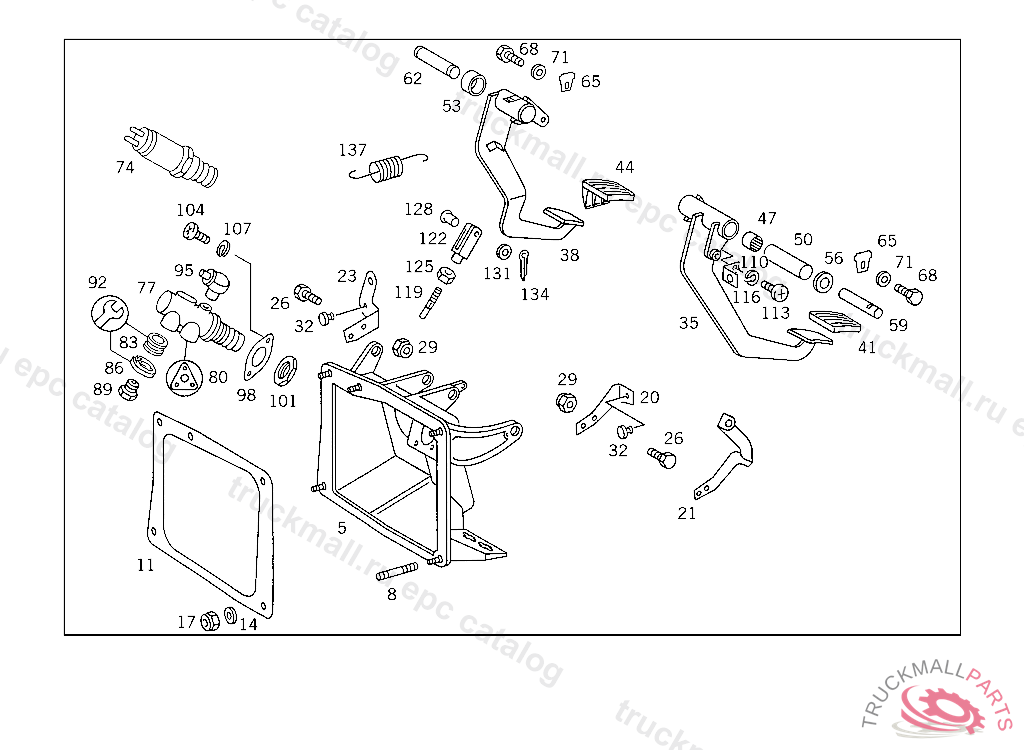

Поз.
Артикул
Описание
5
BEARING BRACKET , Replaced By: A6502900319
5
BEARING BRACKET CLUTCH PEDAL AND BRAKE PEDAL
8
STUD
11
GASKET BEARING BRACKET TO FIRE WALL
14
WASHER , Replaced By: N000125008443
14
WASHER EXHAUST MUFFLER TO STRAP
17
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
17
NUT , Replaced By: N913004008001
17
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
20
STOP CLUTCH PEDAL,5 957975
21
BRACKET CLUTCH PEDAL,5 957976
23
STOP BRAKE PEDAL
26
SCREW COVER PLATE TO BRACKET
29
NUT , Replaced By: N913004006001
29
NUT PUMP TO BRACKET
32
STOP CLUTCH PEDAL AND BRAKE PEDAL
35
PEDAL , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 957975, Replaced By: A6572900516
35
PEDAL CLUTCH
35
PEDAL CLUTCH
35
PEDAL , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 957975, Replaced By: A6572900616
38
PEDAL BRAKE
38
PEDAL BRAKE
41
PAD CLUTCH PEDAL
44
PAD BRAKE PEDAL
47
NEEDLE BEARING CLUTCH PEDAL
47
NEEDLE BEARING CLUTCH PEDAL
50
SPACER TUBE CLUTCH PEDAL
53
BUSHING BRAKE PEDAL
53
BUSHING , Replaced By: A1242920050
56
WASHER CLUTCH PEDAL TO BEARING BRACKET
59
PIN CLUTCH PEDAL TO BEARING BRACKET
62
PIN BRAKE PEDAL TO BEARING BRACKET
65
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
68
SCREW PUMP TO BRACKET
68
SCREW , Replaced By: N304017006016
71
WASHER COMPRESSED AIR LINE TO BRACKET
71
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
77
VALVE 3/2-WAY VALVE
80
GASKET KIT 3/2-WAY VALVE
83
SEAL RING , Replaced By: A0009940747
83
LOCK RING LINE CONNECTION
86
LOCK LINE CONNECTION
86
LOCK , Replaced By: A0009945448
89
SCREW. UNION SCREW LINE CONNECTION
89
SCREW. UNION SCREW , Replaced By: A0009973734
92
REPAIR KIT , Replaced By: A0309971748
92
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
95
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
95
BREATHER , Replaced By: A3933280065
98
FLANGE AT PEDAL ASSEMBLY BEARING BRACKET
101
NUT SUCTION LINE TO OIL PUMP
104
SCREW , Replaced By: N000000001145
104
SCREW BRACKET TO COVERING
107
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
110
ANGLE AT CLUTCH PEDAL UNIT
113
SCREW , Replaced By: N000000001145
113
SCREW BRACKET TO COVERING
116
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
119
ROD TWO-CIRCUIT-BRAKE-VALVE CONTROL
119
ROD , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6732920032, +001N071752008003
122
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
122
YOKE OPERATING ROD,K 202311
125
NUT , Replaced By: N304035008001
125
NUT
128
PIN ROD TO BRAKE PEDAL
131
WASHER BRACKET TO CROSS MEMBER
134
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
134
COTTER PIN LEVER TO ROD
137
SPRING CLUTCH-PEDAL/BRAKE-PEDAL RESET
999
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
999
PAD , Replaced By: N040621014200
