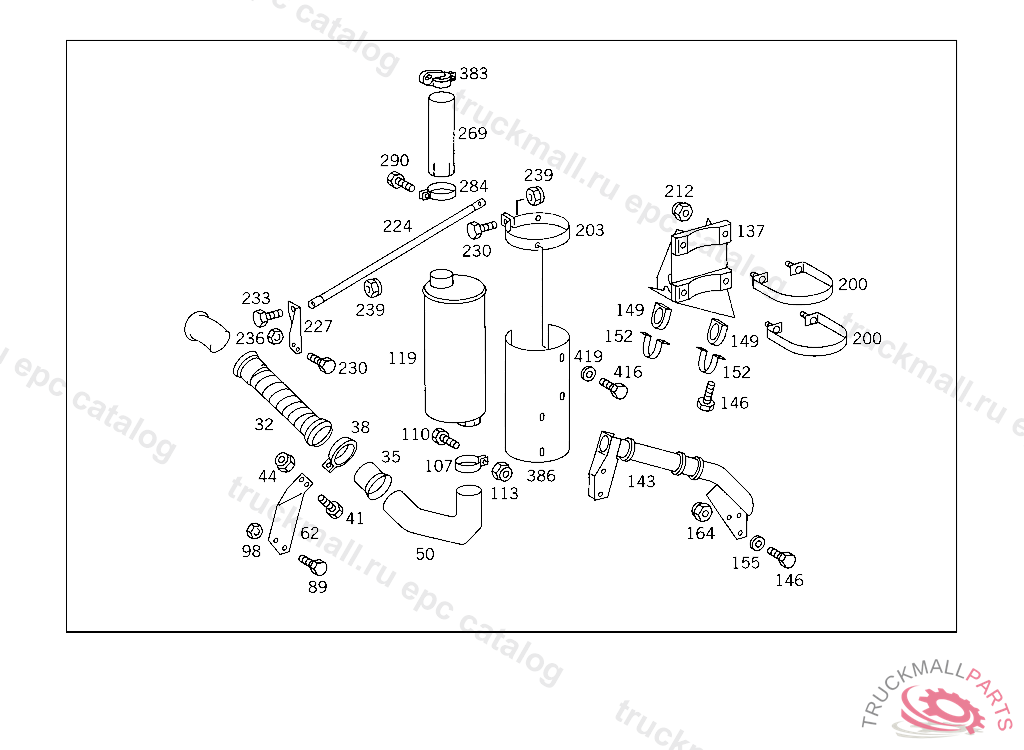

Поз.
Артикул
Описание
32
FLEXIBLE METAL TUBE FRONT LEFT
35
COLLAR (SLIDING COLLAR)
38
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
41
SCREW , Replaced By: N304017008018
41
SCREW SUPPORT TO FENDER
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
NUT , Replaced By: N913004008001
44
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
107
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
110
SCREW BRACKET TO SIDE MEMBER
110
SCREW , Replaced By: N304017010002
113
NUT , Replaced By: N910113010000
113
NUT STRAP TO BRACKET
233
SCREW STRAP TO BRACKET
233
SCREW , Replaced By: N304017010050
233
SCREW , Replaced By: N304017010055
239
NUT STRAP TO BRACKET
239
NUT , Replaced By: N910113010000
290
SCREW REAR EXHAUST PIPE TO MUFFLER
383
FLAP EXHAUST PIPE
416
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
416
SCREW , Replaced By: N304017008039
419
WASHER , Replaced By: N000125008443
419
WASHER EXHAUST MUFFLER TO STRAP
999
SPACER TUBE EXHAUST PIPE TO PROTECTIVE PLATE
999
BRACKET , Replaced By: A6554927941
999
BRACKET TAIL PIPE
