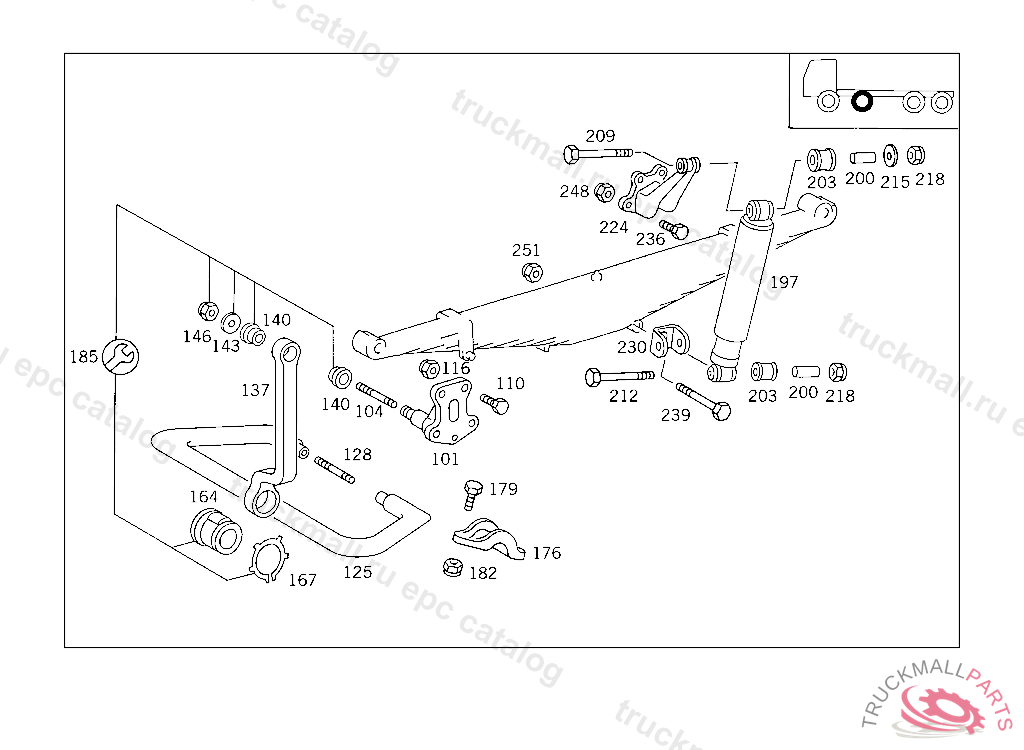

Поз.
Артикул
Описание
101
CONSOLE TORSION BAR,FRONT,5 184731
101
BEARING BRACKET TORSION BAR,FRONT,5 910761 - K 054776
101
CONSOLE , INAPPLICABLE TO IDENT NO.: 5 545417,5 545468,5 549721,5 549753,5 551382,5 553458,5 556586,5 556951,5 557200,5 568184,5 568795,5 575157,5 575986.5 910760, Replaced By: A6203230463, +001N000961014127
104
STUD BOLT
104
STUD BOLT ,5 910760
110
SCREW BEARING BRACKET TO FRAME
110
SCREW CONSOLE TO FRAME
110
SCREW , Replaced By: N308676016020
110
SCREW BRACKET TO ENGINE MOUNTING
116
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
116
NUT COMBINATION CYLINDER TO BEARING BRACKET
125
TORSION BAR FRONT AXLE II
128
STUD BOLT
137
LINK FRONT AXLE II
140
BUSHING LINK TO CONSOLE, INAPPLICABLE TO IDENT NO.: 5 545417,5 545468,5 549721,5 549753,5 551382,5 553458,5 556586,5 556951,5 557200,5 568184,5 568795,5 575157,5 575986.K 054776
140
BUSHING SHACKLE TO BEARING BRACKET,5 904660
143
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
143
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
143
SPACER WASHER LINK TO CONSOLE
146
NUT BRACKET TO SIDE MEMBER
146
NUT , Replaced By: N910113014001
164
RUBBER MOUNTING AT TORSION BAR
164
RUBBER MOUNTING TORSION BAR,5 184731
176
BRACKET TORSION BAR TO BEARING BRACKET
179
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
182
NUT SUPPORT TO SIDE MEMBER
185
REPAIR KIT TORSION BAR MOUNTING
185
REPAIR KIT FRONT AXLE II STABILIZER
197
SHOCK ABSORBER FRONT AXLE II
197
SHOCK ABSORBER FRONT AXLE II
200
BUSHINGTO 004 323 52 00
200
SPACER RINGTO 002 323 86 00,003 323 03 00,
203
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
203
RUBBER MOUNTINGTO 003 326 46 00
203
RUBBER BUFFER , Replaced By: A0003233144
203
RUBBER BUFFER SHOCK ABSORBER,BOTTOM TO 003 326 45 00, Replaced By: A0003238085
209
SCREW SHOCK ABSORBER TO CONSOLE,TOP
212
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
212
SCREW , Replaced By: N000960016250
215
WASHER SHOCK ABSORBER TO LOWER BEARING BRACKET
218
NUT COMBINATION CYLINDER TO BEARING BRACKET
218
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
224
BRACKET LEFT
224
BRACKET RIGHT
230
BRACKET SHOCK ABSORBER TO FRONT AXLE
236
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
236
SCREW BEARING BRACKET TO FRAME
239
SCREW BEARING BRACKET TO FRONT AXLE M 20X125,5 530466
239
SCREW , Replaced By: N000960020084
248
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
248
NUT COMBINATION CYLINDER TO BEARING BRACKET
251
NUT CROSS MEMBER TO REINFORCEMENT
251
NUT , Replaced By: N913004020003
