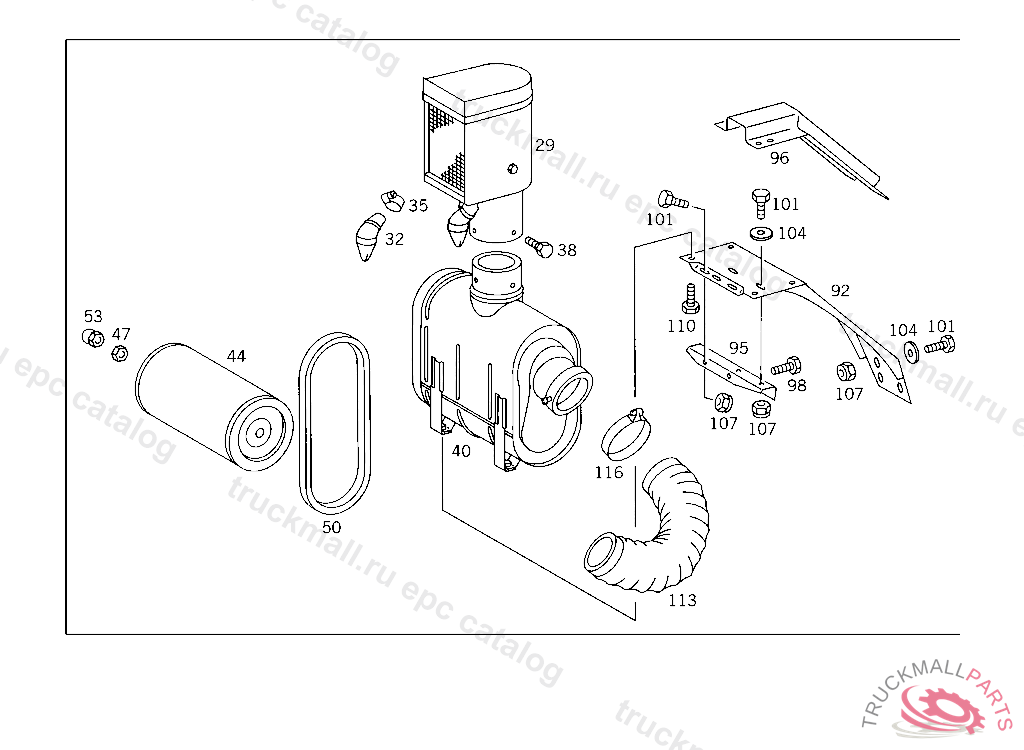

Поз.
Артикул
Описание
29
AIR CLEANER CYCLONE
29
AIR CLEANER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 715413, Replaced By: A4420900001
32
VALVE CYCLONE
35
CLAMP CYCLONE
38
SCREW , Replaced By: N304017008016
38
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
40
AIR CLEANER"MANN & HUMMEL"
44
FILTER ELEMENT
47
NUT
50
GASKET
53
NUT
92
SUPPORT
92
SUPPORT , Replaced By: A6575200230
95
REINFORCEMENT AIR CLEANER TO FENDER BRACKET
96
REINFORCEMENT
98
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
101
SCREW END PIECE TO EXHAUST PIPE M 10X25
104
WASHER BRACKET TO COVERING
104
WASHER , Replaced By: N009021010209
107
NUT , Replaced By: N910113010000
107
NUT STRAP TO BRACKET
110
SCREW SUPPORT TO CROSS MEMBER M 10X28
110
SCREW END PIECE TO EXHAUST PIPE M 10X25
110
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
110
SCREW , Replaced By: N304017008016
113
HOSE FROM AIR CLEANER TO AIR INTAKE PIPE
116
CLAMP AIR INTAKE
