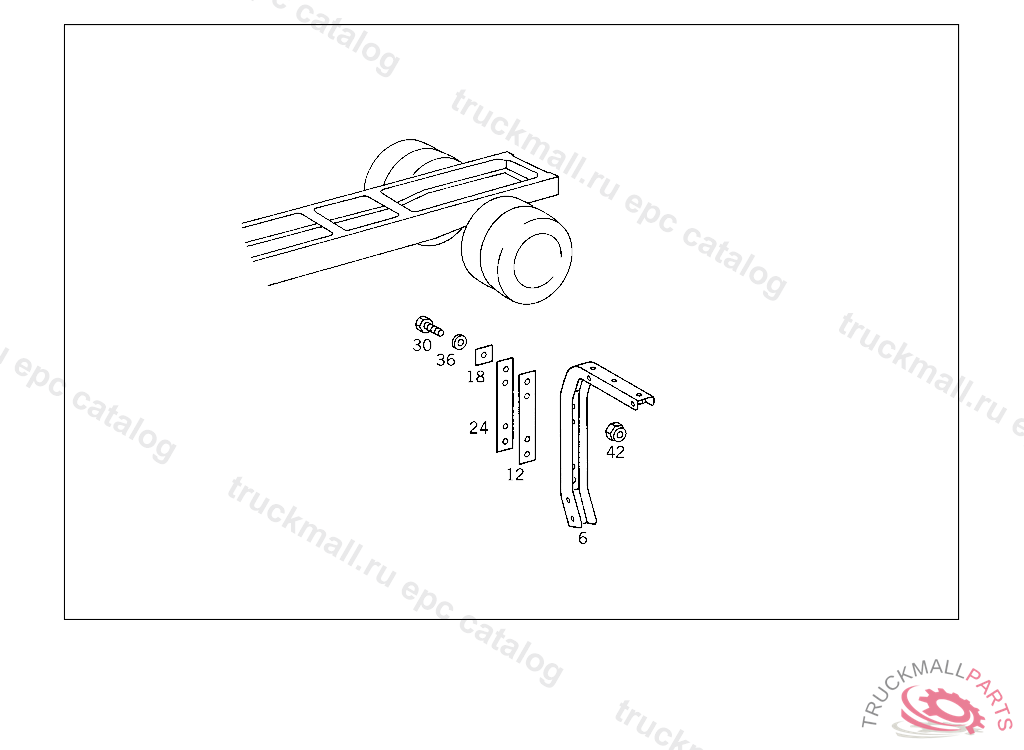

Поз.
Артикул
Описание
6
ANGLE UNDERRUN PROTECTION,RIGHT
6
ANGLE UNDERRUN PROTECTION,LEFT
12
SHIM FUEL TANK TO FRAME
12
SHIM FUEL TANK TO FRAME
18
SHIM UNDERRUN PROTECTION AND BRACKET TO FRAME
24
SHIM SUPPORT TO SIDE MEMBER
30
SCREW , Replaced By: N308676014020
30
SCREW BRACKET TO SIDE MEMBER
30
SCREW BRACKET TO SIDE MEMBER
30
SCREW REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS M 14X48
30
SCREW STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
30
SCREW STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
30
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
30
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
30
SCREW BRACKET TO CAB CONSOLE,K 035197
30
SCREW BRACKET TO CAB CONSOLE,K 035197
30
SCREW STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
30
SCREW STRUT TO FRAME M 14X1.5X42
30
SCREW STRUT TO FRAME M 14X1.5X42
30
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
30
SCREW BRACKET TO SIDE MEMBER M 12X38
30
SCREW REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS M 14X48
30
SCREW BRACKET TO SIDE MEMBER
30
SCREW BRACKET TO SIDE MEMBER
30
SCREW BRACKET TO SIDE MEMBER M 12X38
30
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
30
SCREW STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
36
WASHER BRACKET TO SIDE MEMBER
36
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
36
WASHER CROSS MEMBER TO REINFORCEMENT
36
WASHER CROSS MEMBER TO REINFORCEMENT
36
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
36
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
36
WASHER BRACKET TO SIDE MEMBER
42
NUT , Replaced By: N910113014001
42
NUT BRACKET TO SIDE MEMBER
42
NUT SUPPORT TO SIDE MEMBER
42
NUT SUPPORT TO SIDE MEMBER
42
NUT BRACKET TO SIDE MEMBER
