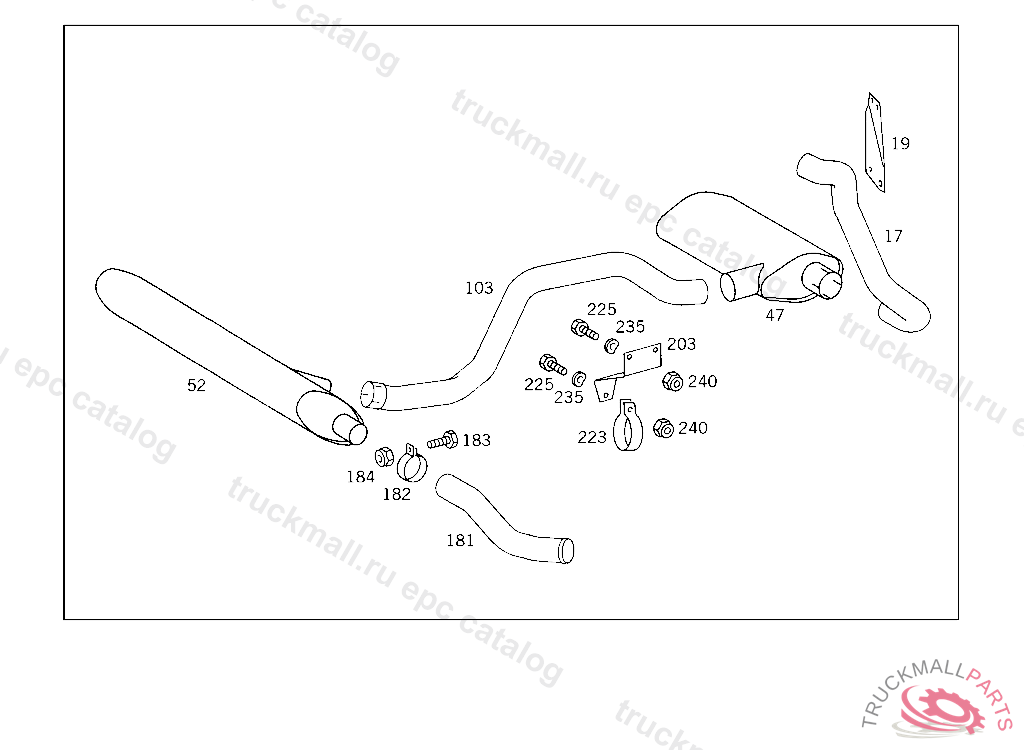

Поз.
Артикул
Описание
17
EXHAUST PIPE FRONT
19
BRACKET FRONT EXHAUST PIPE TO SIDE MEMBER
47
EXHAUST MUFFLER PRE-MUFFLER
52
EXHAUST MUFFLER IN FRONT OF FRONT AXLE
52
EXHAUST MUFFLER IN FRONT OF FRONT AXLE
103
INTERMEDIATE PIECE PRE-MUFFLER TO MAIN MUFFLER
181
END PIECE TAIL PIPE,K 082900
181
END PIECE , Replaced By: A6534920114
182
CLAMP , Replaced By: N071555100501
182
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
183
SCREW BRACKET TO SIDE MEMBER
183
SCREW , Replaced By: N304017010002
184
NUT , Replaced By: N910113010000
184
NUT STRAP TO BRACKET
203
BRACKET EXHAUST PIPE TO SIDE MEMBER
223
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
223
CLAMP , Replaced By: N071555100501
225
SCREW REAR EXHAUST PIPE TO MUFFLER
225
SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
235
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
235
SPRING WASHER , Replaced By: N000137008212
240
NUT , Replaced By: N910113010000
240
NUT , Replaced By: N913023010002
240
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
240
NUT STRAP TO BRACKET
999
NUT , Replaced By: N913023010002
999
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125010532
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
BRACKET EXHAUST PIPE,5 564360
999
PIPE ELBOW EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
999
SCREW , Replaced By: N910105010011
999
SCREW EXHAUST PIPE TO SIDE MEMBER
999
SCREW BRACKET MOUNTING M 8X110
