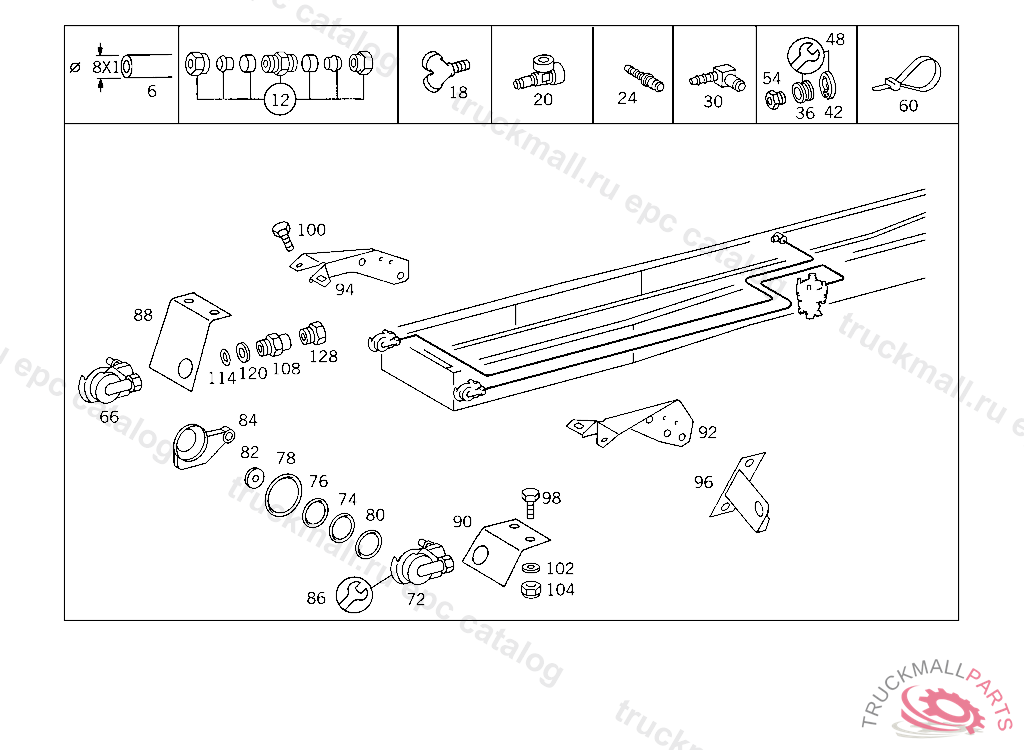

Поз.
Артикул
Описание
6
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
12
FITTING (PARTS KIT),LINE RUPTURE
18
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
20
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10",TO M 22, VOSS 232
20
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
24
CONNECTOR HOSE WIDTH, 6 MM, TO M22
30
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
36
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
42
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
48
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
54
SCREW. UNION SCREW LINE CONNECTION
60
LOOM TIE LINE MOUNTING 280 MM
66
BRAKE LINE COUPLING , Replaced By: A0004299630
66
BRAKE LINE COUPLING SUPPLY, RED "WABCO"
66
BRAKE LINE COUPLING SUPPLY, RED "BOSCH"
66
BRAKE LINE COUPLING SUPPLY, RED "KNORR"
66
BRAKE LINE COUPLING SUPPLY, RED "GRAU"
72
BRAKE LINE COUPLING BRAKE,YELLOW "KNORR"
72
BRAKE LINE COUPLING BRAKE,YELLOW "BOSCH"
72
BRAKE LINE COUPLING BRAKE,YELLOW "GRAU"
72
BRAKE LINE COUPLING BRAKE,YELLOW "WABCO"
72
BRAKE LINE COUPLING , Replaced By: A0004299730
74
SEAL RING30X2 MM,BOSCH
76
SEAL RING25X2 MM,BOSCH
78
SEAL RING33X2.5 MM,BOSCH
80
SEAL RING"GRAU"
82
SEAL RING22X4 MM,BOSCH
82
VALVE TAPPET22X4 MM,BOSCH
84
COVER BRAKE,YELLOW "WABCO"
84
COVER SUPPLY, RED "WABCO"
86
REPAIR KIT BRAKE LINE COUPLING "WABCO"
88
BRACKET LEFT
90
BRACKET INSIDE RIGHT
92
BRACKET BRAKE LINE COUPLING TO BUMPER
94
BRACKET BRAKE LINE COUPLING TO BUMPER
96
BRACKET BRAKE LINE COUPLING,"SUPPLY", SIMPLE PART-PLEASE HAVE SHOP MADE
96
BRACKET BRAKE LINE COUPLING,"BRAKE", SIMPLE PART-PLEASE HAVE SHOP MADE
98
SCREW , Replaced By: N304017008021
98
SCREW , Replaced By: N304017008034
98
SCREW BRACKET TO CROSS CONNECTION STRUT
98
SCREW PIPE CLAMP
100
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
102
WASHER EXHAUST MUFFLER TO STRAP
102
WASHER , Replaced By: N000125008443
104
NUT , Replaced By: N913004008001
104
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
108
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "40",5 509133
114
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
120
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
128
SCREW. UNION SCREW LINE CONNECTION
999
BRACKET , Replaced By: A6754310240
999
BRACKET BRACKET TO CONSOLE
999
SCREW , Replaced By: N304017006016
999
SCREW PUMP TO BRACKET
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
