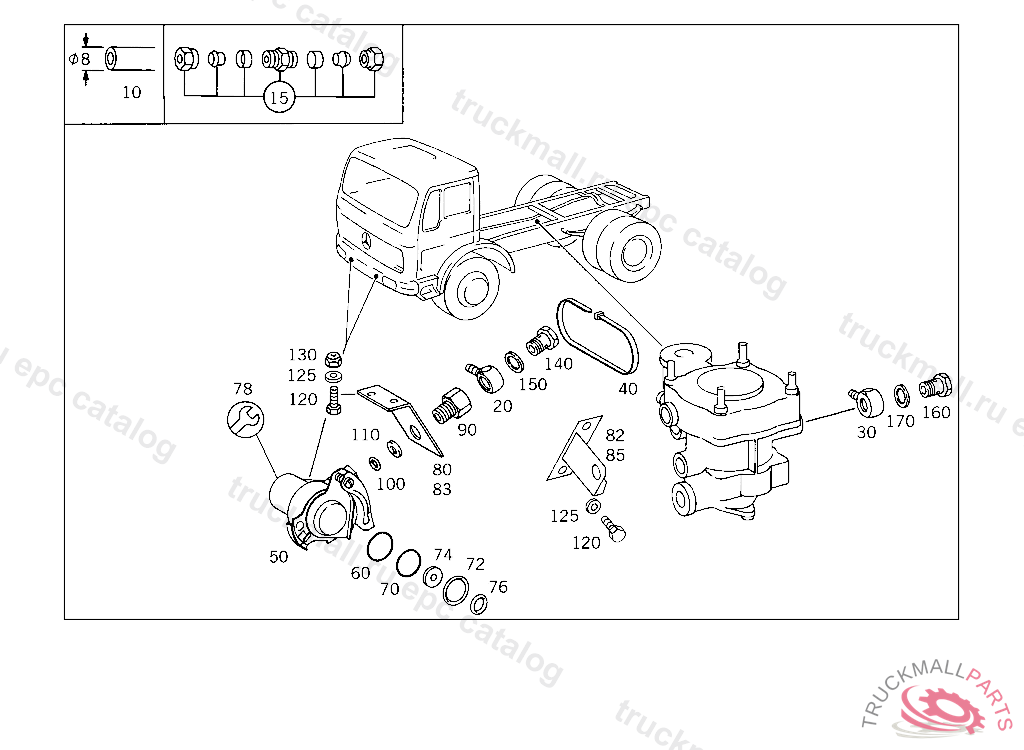

Поз.
Артикул
Описание
10
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
15
FITTING (PARTS KIT),LINE RUPTURE
20
BANJO UNION HEATING CONNECTION,K 169122
30
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
40
LOOM TIE LINE MOUNTING 280 MM
40
LOOM TIE LINE MOUNTING
50
BRAKE LINE COUPLING , Replaced By: A0004299630
50
BRAKE LINE COUPLING , Replaced By: A0004299730
50
BRAKE LINE COUPLING SUPPLY, RED "BOSCH"
50
BRAKE LINE COUPLING BRAKE,YELLOW "GRAU"
50
BRAKE LINE COUPLING BRAKE,YELLOW "KNORR"
50
BRAKE LINE COUPLING SUPPLY, RED "GRAU"
50
BRAKE LINE COUPLING BRAKE,YELLOW "BOSCH"
50
BRAKE LINE COUPLING BRAKE,YELLOW "WABCO"
50
BRAKE LINE COUPLING SUPPLY, RED "KNORR"
50
BRAKE LINE COUPLING SUPPLY, RED "WABCO"
60
SEAL RING30X2 MM,BOSCH
60
SEAL RING"GRAU"
70
SEAL RING25X2 MM,BOSCH
72
SEAL RING33X2.5 MM,BOSCH
74
SEAL RING22X4 MM,BOSCH
76
VALVE TAPPET22X4 MM,BOSCH
78
REPAIR KIT BRAKE LINE COUPLING "WABCO"
78
REPAIR KIT BRAKE LINE COUPLING "KNORR"
80
BRACKET INSIDE RIGHT
80
BRACKET LEFT
82
BRACKET BRAKE LINE COUPLING,"SUPPLY", SIMPLE PART-PLEASE HAVE SHOP MADE
83
BRACKET BRAKE LINE COUPLINGS
83
BRACKET INSIDE RIGHT
85
BRACKET BRAKE LINE COUPLING,"BRAKE", SIMPLE PART-PLEASE HAVE SHOP MADE
90
ADAPTER FITTING BRAKE LINE COUPLING TO BRACKET
100
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
110
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
120
SCREW BRACKET TO CROSS CONNECTION STRUT
120
SCREW PIPE CLAMP
120
SCREW , Replaced By: N304017008021
120
SCREW , Replaced By: N304017008034
125
WASHER , Replaced By: N000125008443
125
WASHER EXHAUST MUFFLER TO STRAP
130
NUT , Replaced By: N913004008001
130
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
140
HOLLOW SCREW FUEL LINE TO FEED PUMP
140
HOLLOW SCREW , Replaced By: N915036010108
150
SEAL RING FUEL LINE TO FEED PUMP
160
HOLLOW SCREW HEATING CONNECTION
160
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
170
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
170
SEAL RING LINE CONNECTION
999
FITTING , Replaced By: A0029905971
999
SEAL RING , Replaced By: A0049978240, +001A0004290483
999
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
