Поз.
Артикул
Описание

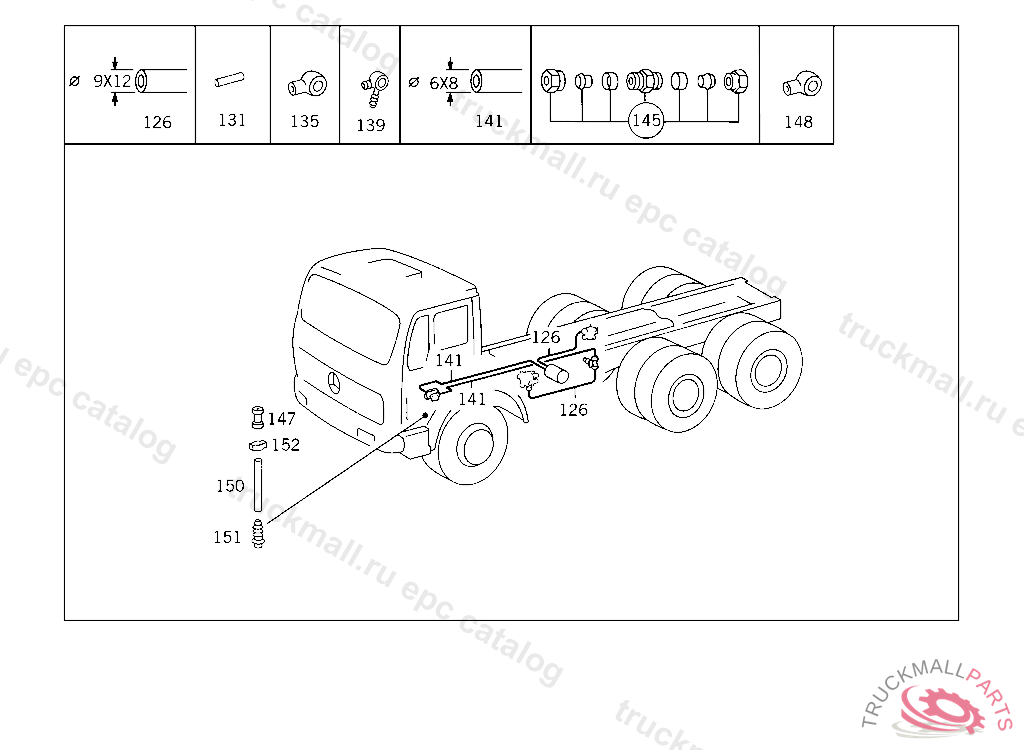

126
HOSE , Replaced By: A0009872827
126
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
131
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
135
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
135
BANJO UNION , Replaced By: N915052009009
139
BANJO UNION FROM BULKHEAD FITTING TO PRESSURE REGULATOR
141
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
145
FITTING (PARTS KIT),LINE RUPTURE
145
FITTING , Replaced By: A0029905971
147
GROMMET AT SIDE MEMBER,5 314333
148
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
148
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
150
HOSE LEAK LINE, ORDER BY THE METER
151
CONNECTOR FEED & RETURN
152
LOOM TIE LINE MOUNTING
999
CLAMP LINE MOUNTING
999
NUT SPRING-LOADED PUSH ROD
999
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
999
SCREW LICENSE PLATE TO BRACKET,4 300861
999
FITTING (DELIVERY LINE),FROM PUMP TO STEERING
999
BRACKET RELAY VALVE, NOT USED
999
BRACKET METAL SPRING BELLOWS
999
GROMMET 2/2-WAY VALVE,CONNECTION: "1,2",5 548796
999
SEAL RING THROTTLE VALVE,CONNECTIONS: "1,2"
999
ELBOW FITTING CHECK VALVE TO RELAY VALVE
999
VALVE (THROTTLE VALVE)
999
FITTING (DELIVERY LINE),FROM PUMP TO STEERING, Replaced By: A9329970772
999
PRESSURE REGULATORKNORR 90310
999
PRESSURE REGULATORWABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
PRESSURE REGULATORBOSCH
999
VALVE (PRESSURE LIMIT VALVE)
999
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
ELBOW FITTING , Replaced By: A0049906471
999
REPAIR KIT , Replaced By: A0004301107
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
VALVE (TWO-/TWO-WAY VALVE)
999
SWITCH SUPPLY PRESSURE CONTROL
999
REPAIR KIT SEAL RING BOSCH,209
999
REPAIR KIT PRESSURE LIMIT VALVE
999
MUFFLER TRAILER CONTROL VALVE
999
REPAIR KIT DIAPHRAGM PART BOSCH,209
999
MUFFLER BRAKE PRESSURE REGULATOR BREATHING,5 419692
999
MUFFLER , Replaced By: A0004302370
999
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
999
ELBOW FITTING , Replaced By: A0004294638
999
THRUST RING THROTTLE VALVE,CONNECTIONS: "1,2"
