Поз.
Артикул
Описание

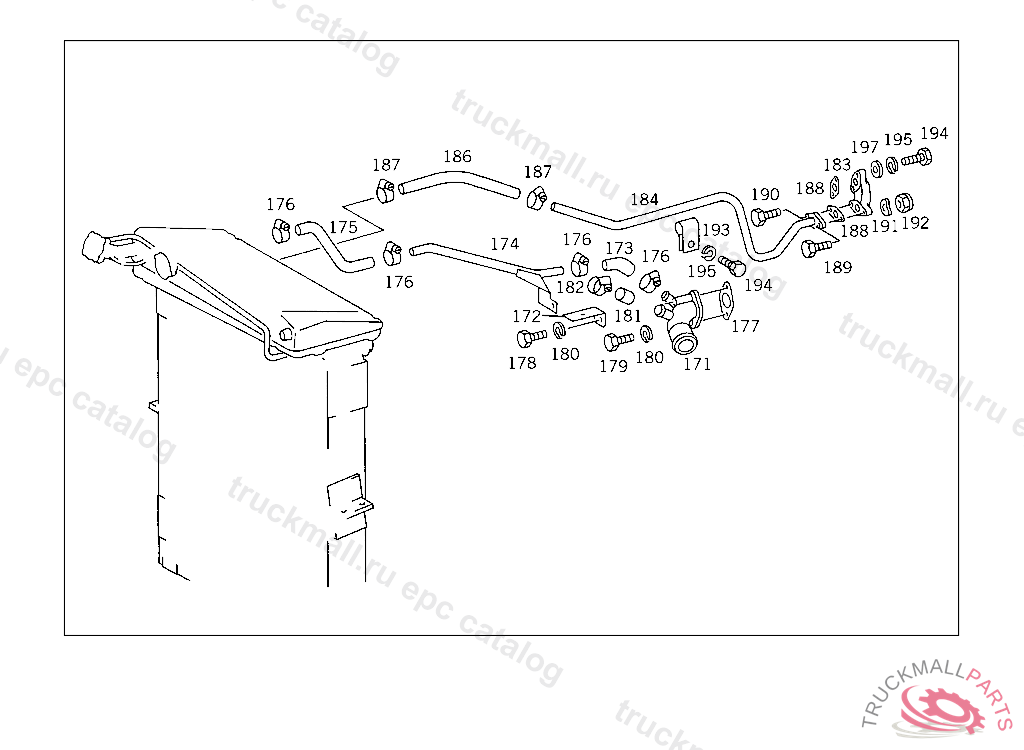

171
CONNECTOR FROM ENGINE TO EXPANSION TANK
172
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
173
HOSE DE-AERATION, FROM ENGINE TO EXPANSION TANK
174
BREATHER PIPE
175
HOSE BETWEEN DE-AERATION LINE AND EXPANSION TANK
176
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
176
CLAMP , Replaced By: N000000000667
177
GASKET. SEAL DE-AERATION PIPE TO ENGINE
178
SCREW , Replaced By: N000933010192
178
SCREW SHIFTING ROD TO SHIFT LEVER
179
SCREW CLUTCH TO FLYWHEEL
180
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
181
LOCKING CAP INTERMEDIATE PIPE TO PARTICLE FILTER
182
CLAMP
182
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
183
FLANGE
184
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
184
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR,5 901844
186
HOSE FROM BUBBLE SEPARATOR TO HEATING PIPE 18X27 MM, ORDER BY THE METER
187
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
187
CLAMP , Replaced By: N000000000667
188
GASKET HEATING PIPE TO ENGINE
189
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
189
SCREW , Replaced By: N304017008027
190
SCREW , Replaced By: N304017008018
190
SCREW SUPPORT TO FENDER
191
SPRING WASHER , Replaced By: N000137008212
191
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
192
NUT , Replaced By: N913004008001
192
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
192
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
193
CLAMP FEED LINE TO THERMOSTAT
194
SCREW PUMP TO BRACKET
194
SCREW , Replaced By: N304017006016
195
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
197
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
197
WASHER COMPRESSED AIR LINE TO BRACKET
999
PIPE ELBOW , Replaced By: A6555010756
999
BRACKET , Replaced By: A3184280240
999
BRACKET , Replaced By: A6224760036
999
GASKET , Replaced By: A6255010580
999
GASKET , Replaced By: A6252570580
999
FLANGE , Replaced By: A6205060261
999
RUBBER PAD , Replaced By: A4605060033
999
CONNECTOR , Replaced By: A6205010323
999
BRACKET , Replaced By: A3184923441
999
GASKET , Replaced By: A4422010480
999
BRACKET , Replaced By: A6205244040
999
SPACER RING , Replaced By: N007349017002
999
SCREW , Replaced By: A0019902120
