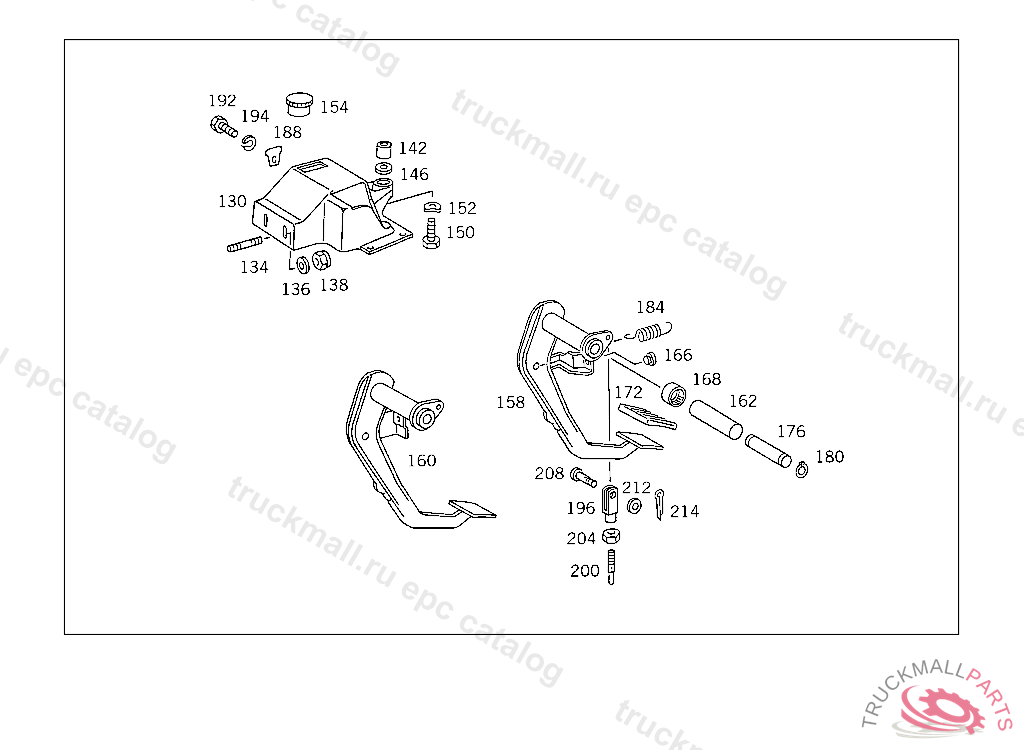

Поз.
Артикул
Описание
130
BEARING BRACKET BRAKE
134
STUD BOLT BRACKET TO CROSS MEMBER
136
WASHER EXHAUST MUFFLER TO STRAP
136
WASHER , Replaced By: N000125008443
138
NUT , Replaced By: N913004008001
138
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
138
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
142
SPACER TUBE BEARING BRACKET TO STEERING COLUMN BRACKET
146
WASHER BEARING BRACKET TO STEERING COLUMN BRACKET
146
WASHER , Replaced By: A4039900040
150
SCREW BEARING BRACKET TO STEERING COLUMN BRACKET
152
SPRING WASHER STEERING COLUMN BRACKET TO CAB
154
EXPANSION PLUG STEERING COLUMN END 20 MM,4 4307305 062722
154
PLUG CAB FLOOR SEALING
154
PLUG , Replaced By: A0009972020
154
EXPANSION PLUG , Replaced By: A0009973220
158
PEDAL BRAKE
160
PEDAL BRAKE
162
SPACER TUBE
166
STOP
168
NEEDLE BEARING
172
PAD BRAKE
176
PIVOT PIN PEDAL TO BEARING BRACKET
180
LOCK RING
184
SPRING BRAKE PEDAL RELEASE SPRING
188
LOCK , Replaced By: A6732920073
188
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
192
SCREW COVER PLATE TO COVER PLATE M 6 X 12
192
SCREW , Replaced By: N304017006018
194
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
196
YOKE OPERATING ROD,K 202311
200
ROD , Replaced By: A9702900039
200
ROD PISTON ROD AND PUSH ROD
204
NUT
204
NUT , Replaced By: N304035008001
208
PIN ROD TO BRAKE PEDAL
212
WASHER BRACKET TO CROSS MEMBER
214
COTTER PIN LEVER TO ROD
214
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
