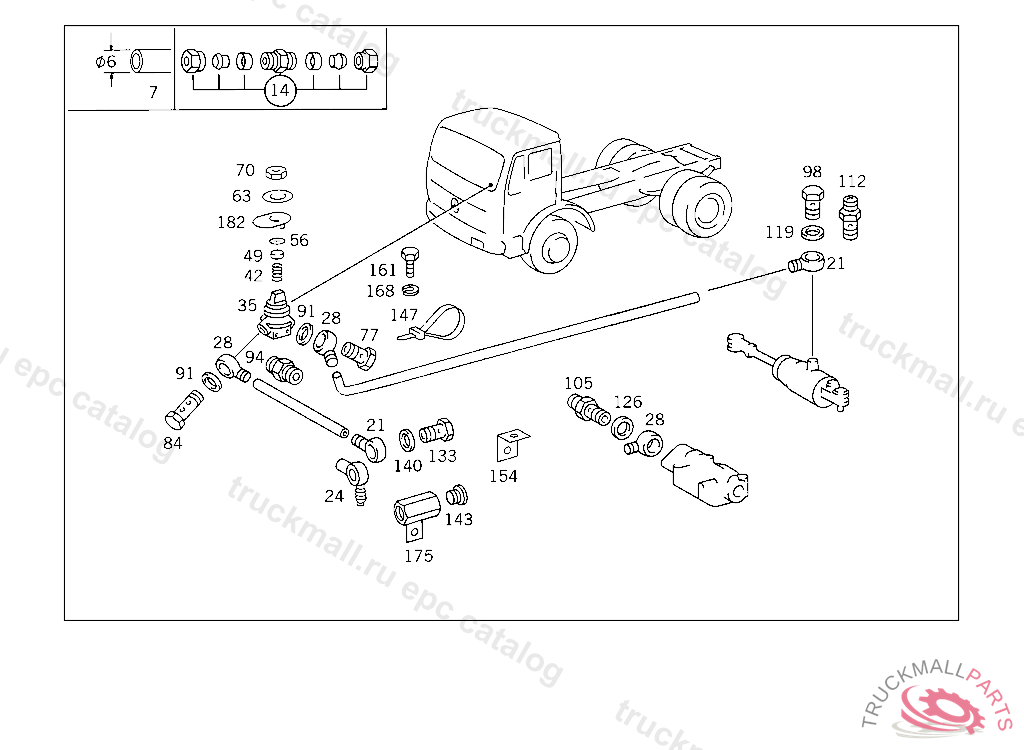

Поз.
Артикул
Описание
7
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
7
PLASTIC PIPE RISING PIPE 4X6 MM
7
PLASTIC PIPE RISING PIPE 4X6 MM
14
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
21
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
21
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
24
BANJO UNION 3/2-WAY
24
BANJO UNION P.T.O. CONNECTION
28
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
35
VALVE 3/2-WAY KNORR
35
VALVE 3/2-WAY BOSCH
35
VALVE 3/2-WAY WABCO
35
VALVE 3/2-WAY VOSS
42
SPRING INSIDE WABCO
49
SEAL RING INSIDE WABCO
56
SEAL RING TOP WABCO
63
WASHER AT TWO-WAY VALVE
63
WASHER 3/2-WAY VALVE TO BRACKET
70
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
77
HOLLOW SCREW LINE CONNECTION
77
HOLLOW SCREW HEATING CONNECTION
84
HOLLOW SCREW LINE CONNECTION
91
SEAL RING LINE CONNECTION
91
SEAL RING LINE CONNECTION
94
FITTING 3/2-WAY VALVE,CONNECTION: "30"
98
HOLLOW SCREW LINE CONNECTION
98
HOLLOW SCREW HEATING CONNECTION
98
HOLLOW SCREW HEATING CONNECTION
105
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 091744
112
HOLLOW SCREW HEATING CONNECTION
112
HOLLOW SCREW HEATING CONNECTION
112
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
112
HOLLOW SCREW FITTING PNEUMATIC CYLINDER,CONNECTION: "10",5 308944
119
SEAL RING LINE CONNECTION
119
SEAL RING LINE CONNECTION
126
SEAL RING PNEUMATIC VALVE
133
HOLLOW SCREW HEATING CONNECTION
133
HOLLOW SCREW HEATING CONNECTION
133
HOLLOW SCREW HEATING CONNECTION
133
HOLLOW SCREW LINE CONNECTION
140
SEAL RING LINE CONNECTION
140
SEAL RING LINE CONNECTION
140
SEAL RING LINE CONNECTION
143
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
143
SCREW PLUG , Replaced By: N000908012009
147
LOOM TIE LINE MOUNTING 280 MM
154
ANGLE , Replaced By: A4220980239
154
BRACKET , Replaced By: A4420981239
154
BRACKET , Replaced By: A4420981839
154
BRACKET COMPRESSED AIR LINES
154
ANGLE LINE MOUNTING
161
SCREW CENTRAL LOCK TO CAB M 10X16
168
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
175
BRACKET , Replaced By: A6204203686
175
BRACKET AT FITTING
182
SYMBOL PLATE P.T.O. II
182
SYMBOL PLATE
182
SYMBOL PLATE
182
SYMBOL PLATE P.T.O. I
