Поз.
Артикул
Описание

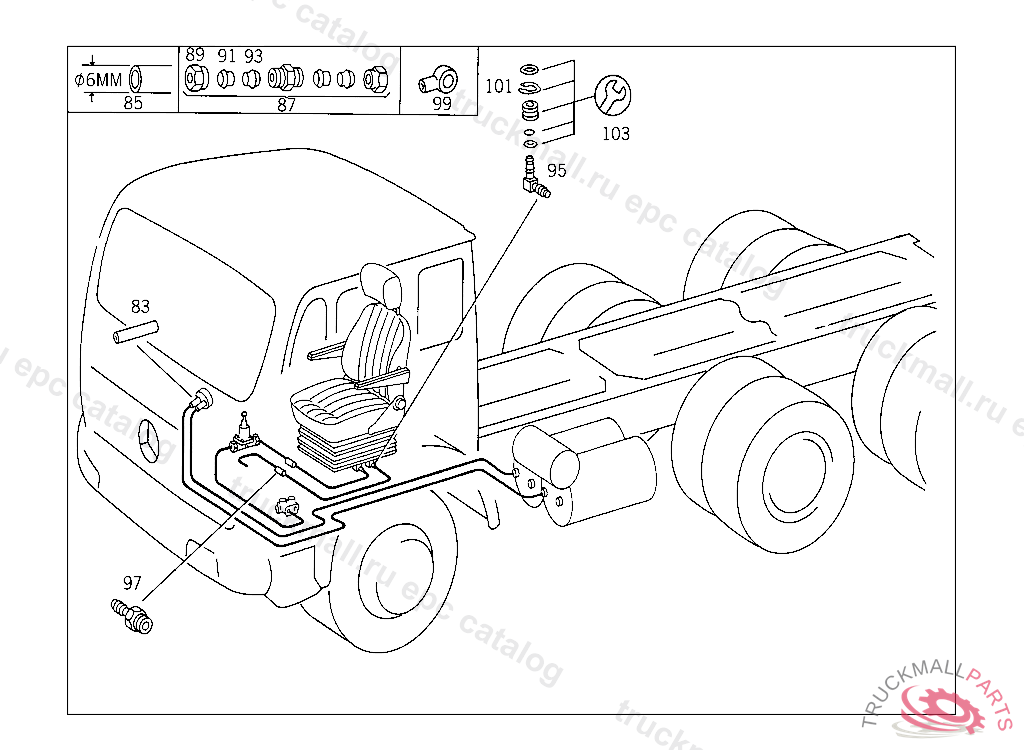

83
HOSE LEAK LINE, ORDER BY THE METER
85
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
85
PLASTIC PIPE RISING PIPE 4X6 MM
87
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
89
UNION NUT
91
SEAL CONE
91
GLAND , Replaced By: A0019901667
93
SLEEVE LEAK LINE
95
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
97
FITTING LINE CONNECTION TO FIRE WALL,5 726664
99
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
99
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
101
LOCK , Replaced By: A0009945448
101
LOCK LINE CONNECTION
103
REPAIR KIT , Replaced By: A0309971748
103
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
999
REPAIR KITTO 001 430 68 81/69 81,KNORR
999
REPAIR KITTO 001 430 35 81/44 81,BOSCH
999
CONNECTOR REPAIR SIZE
999
VALVE ,4 809933, Replaced By: A0014317206, +001A0004290927, +001A0019903971, +001A0009971548, +003N007603016105, +001N080705016003, +001N915047012200
999
REPAIR KITTO BOSCH
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
999
VALVE (CHECK VALVE) WABCO
999
STRAP AIR RESERVOIR,K 125986
999
BRACKET PULL ROD TO BRACKET ON FRAME, TO BE ADAPTED DURING ASSEMBLY
999
STRAP , Replaced By: A3354300340
