Поз.
Артикул
Описание

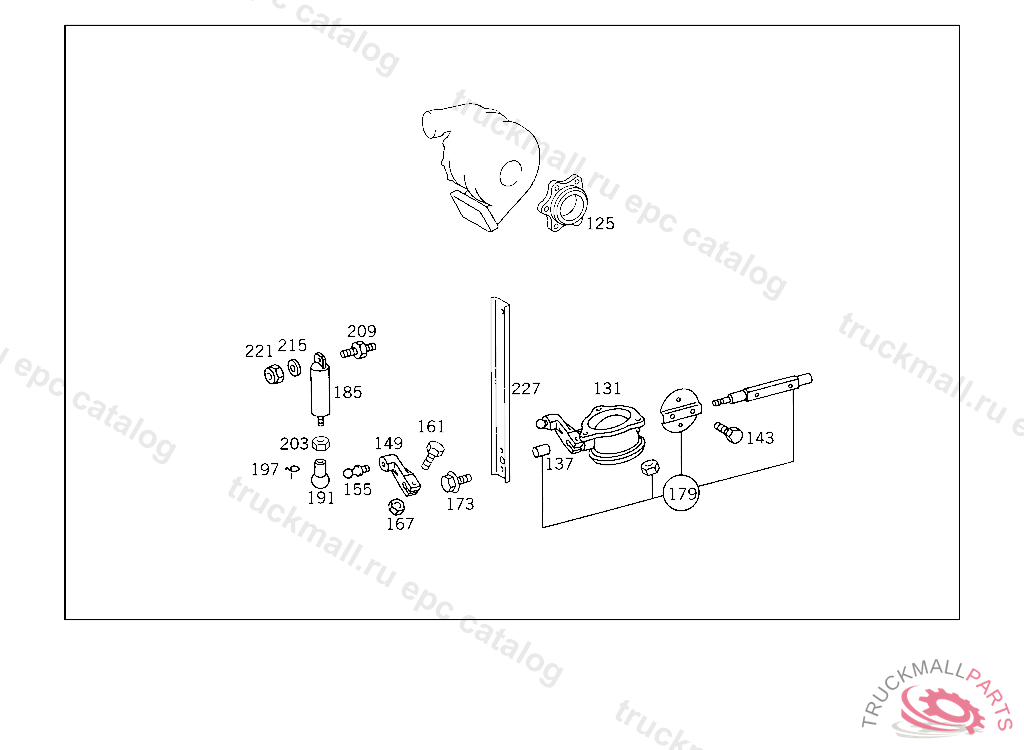

125
FLANGE CONNECTION OF REAR EXHAUST PIPES
131
THROTTLE HOUSING LEFT
137
BUSHING
143
SCREW , Replaced By: N000933008390
143
SCREW SHAFT TO THROTTLE VALVE
149
LEVER LEVER TO EXHAUST-BRAKE THROTTLE VALVE SHAFT
155
BALL PIVOT POWER CYLINDER TO THROTTLE VALVE LEVER
161
SCREW LEVER TO THROTTLE VALVE SHAFT
167
NUT CYLINDER TO BRACKET TO0002902112
167
NUT BATTERY MOUNTING
173
SCREW BRACKET TO THROTTLE HOUSING
179
VALVE PARTS KIT
185
CYLINDER EXHAUST-BRAKE POWER CYLINDER
191
BALL SOCKET POWER CYLINDER TO THROTTLE VALVE LEVER
197
CIRCLIP POWER CYLINDER TO THROTTLE VALVE LEVER
203
NUT
203
NUT , Replaced By: N304032008006
209
PIN POWER CYLINDER TO BRACKET
215
WASHER INTERMEDIATE SPEED STOP
221
NUT POWER CYLINDER TO BRACKET
227
BRACKET EXHAUST-BRAKE POWER CYLINDER
999
FRONT EXHAUST PIPE PRE-MUFFLER TO MAIN MUFFLER
999
BRACKET LEFT
999
REAR EXHAUST PIPE (TAIL PIPE)
999
EXHAUST PIPE FROM FLEXIBLE METAL TUBE TO EXHAUST MUFFLER,LEFT
999
EXHAUST PIPE FROM FLEXIBLE METAL TUBE TO EXHAUST MUFFLER,RIGHT
999
EXHAUST PIPE PRE-MUFFLER TO MAIN MUFFLER
999
SUPPORT EXHAUST MUFFLER SUSPENSION
999
LOOM TIE EXHAUST PIPE TO PRE-MUFFLER
999
EXHAUST PIPE FRONT EXHAUST PIPE,RIGHT,Z 902909
999
BRACKET RIGHT EXHAUST PIPE TO SIDE MEMBER,Z 902909
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
CLAMP , Replaced By: N071555124501
999
REINFORCEMENT EXHAUST MUFFLER,LEFT
999
REINFORCEMENT EXHAUST MUFFLER,RIGHT
999
EXHAUST MUFFLER , Replaced By: A6554901001, +001A6994901027
999
PROTECTIVE PLATE (HEAT SHIELD)
999
PROTECTIVE PLATE (HEAT SHIELD)
999
SUPPORT EXHAUST MUFFLER
999
SUPPORT BOTTOM
999
SUPPORT EXHAUST MUFFLER
999
CONNECTOR LEFT
999
CLAMP , Replaced By: N071555100501
999
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
CLAMP EXHAUST PIPE TO BRACKET
999
CLAMP END PIECE TO EXHAUST PIPE
