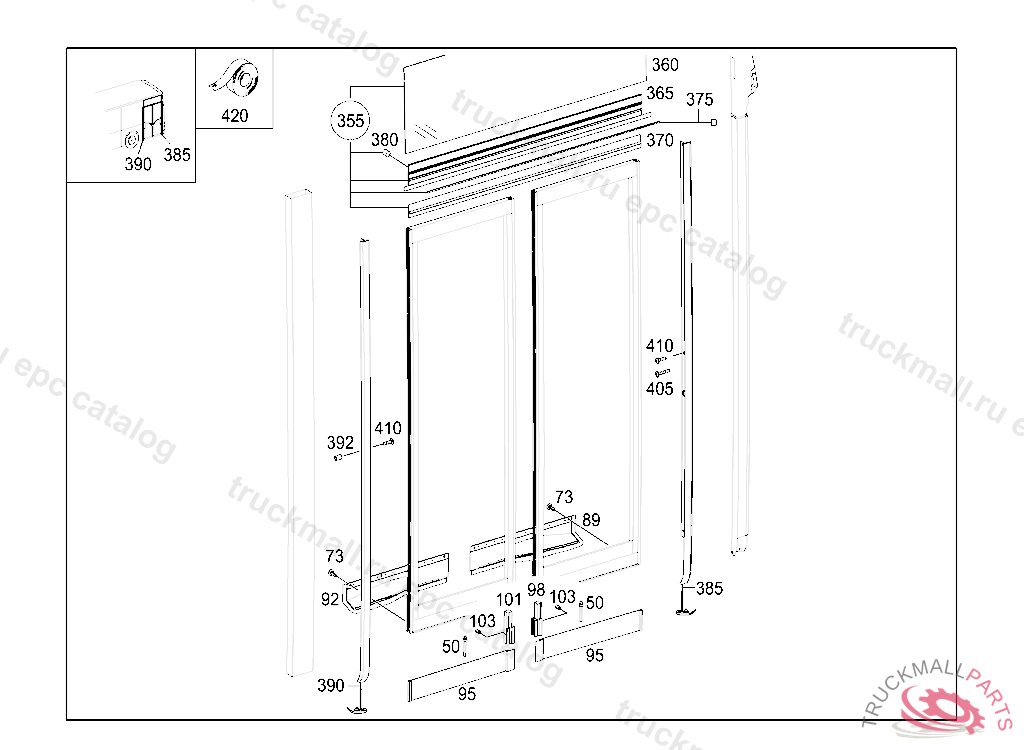

Поз.
Артикул
Описание
50
PIVOT PIN BOTTOM
73
SCREW W COLLAR A DRIVET30 M6X20
89
SEAL FRONT
92
SEAL REAR
95
SEAL BOTTOM
98
CATCH RIGHT BOTTOM
101
CATCH LEFT BOTTOM
103
GRUB SCREW BOTTOM
355
SEAL DRIP MOULDING
360
GLASS PANE ABOVE DOOR 1410 X 396 MM
365
SEAL
370
SEAL
375
ADHESIVE TAPE3900 MM
380
GRUB SCREW BOTTOM
385
SEALING FRAME SEAL TO DOOR FRONT PILLAR, EXHAUST STOCK OF OLD PART NUMBER FIRST
390
SEALING FRAME SEAL TO DOOR REAR PILLAR, EXHAUST STOCK OF OLD PART NUMBER FIRST
392
RIVETED NUT
405
SCREWM6X35
410
SCREW FRAME MOUNTING M 6X25
420
ADHESIVE TAPE4.5X10 MM, ORDER BY THE METER
420
ADHESIVE TAPE , ORDER BY THE METER
420
ADHESIVE TAPE COVER TO AIR DUCT 1200 MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
