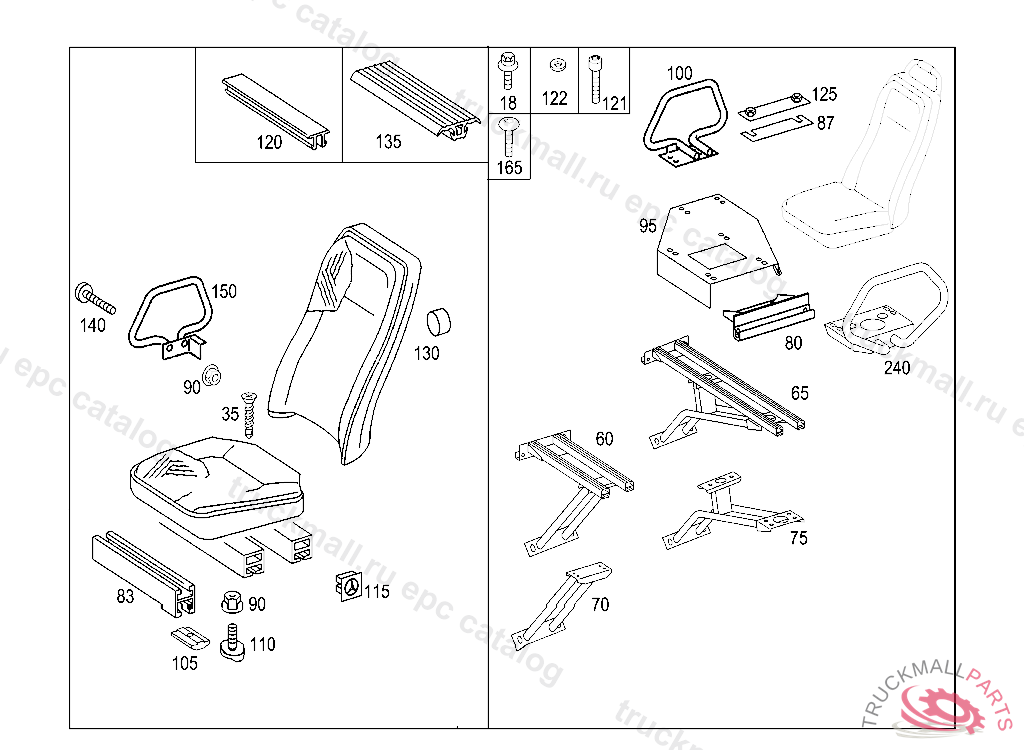

Поз.
Артикул
Описание
18
HEXALOBULAR BOLT CLAMP ON BRACKET M8X45
18
HEXALOBULAR BOLT SUPPORT TO CRANKCASE M8X20
18
SCREW BRACKET TO SIDE MEMBER M8X20
35
SCREW SEAT MOUNTING 3,9X22
60
SEAT FRAMEWORK SINGLE SEAT, .......I.......INO.7365I.......I.......I....... I .......I.......INO.7E87I.......I II
65
65
SEAT FRAMEWORK SEAT FRAME, DUAL SEAT, .......I.......INO.7365I.......I.......I....... I .......I.......INO.7E87I.......I II
70
SEAT BASE
75
SEAT BASE SEAT FRAME, DUAL SEAT
75
SEAT BASE
80
SUPPORT
80
SUPPORT FRONT LEFT
83
RAIL SINGLE SEAT 420 MM
83
RAIL PASSENGER SEAT, ONE-AND-A-HALF SEAT 705 MM
83
RAIL DOUBLE SEAT 850 MM
87
PLATE2 X 40 X 178 MM
87
PLATE TOLERANCE COMPENSATION
90
NUT HINGE LEVER TO MOUNTING
90
NUT HORN TO BRACKET M8
95
CONSOLE , NO.7365I.......I.......I.......I.......I....... I
100
HANDLE LEFT SEAT, NO.7365I.......I.......I.......I.......I....... I
100
HANDLE RIGHT HANDLE, .......I.......INO.7365I.......I.......I....... I .......I.......INO.7E87I.......I II
105
SLIDE
105
PLATE
110
SLOTTED SCREWM 8X42
110
SCREWM8X22
115
EDGE GUARD SECTION
120
RUBBER STRIP
121
SCREWM8 X 16 MM
121
SCREW PLATE TO TRANSMISSION CASE
122
WASHER BRACKET TO CAB REAR PANEL
122
WASHER BRACKET TO LEFT SIDE MEMBER
125
PLATEM8150/170 MM
125
PLATE
130
RUBBER BUFFER
135
PLASTIC SECTION0,04M, ORDER BY THE METER
135
PLASTIC SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6289852809
140
SCREW SPEED SENSOR TO REAR AXLE
140
SCREW PIPE ELBOW TO BRACKET M8X12
150
HANDLE LEFT HANDLE, .......I.......INO.7E87I.......I II
240
HANDLE , STATE COLOR NUMBER WHEN ORDERING
