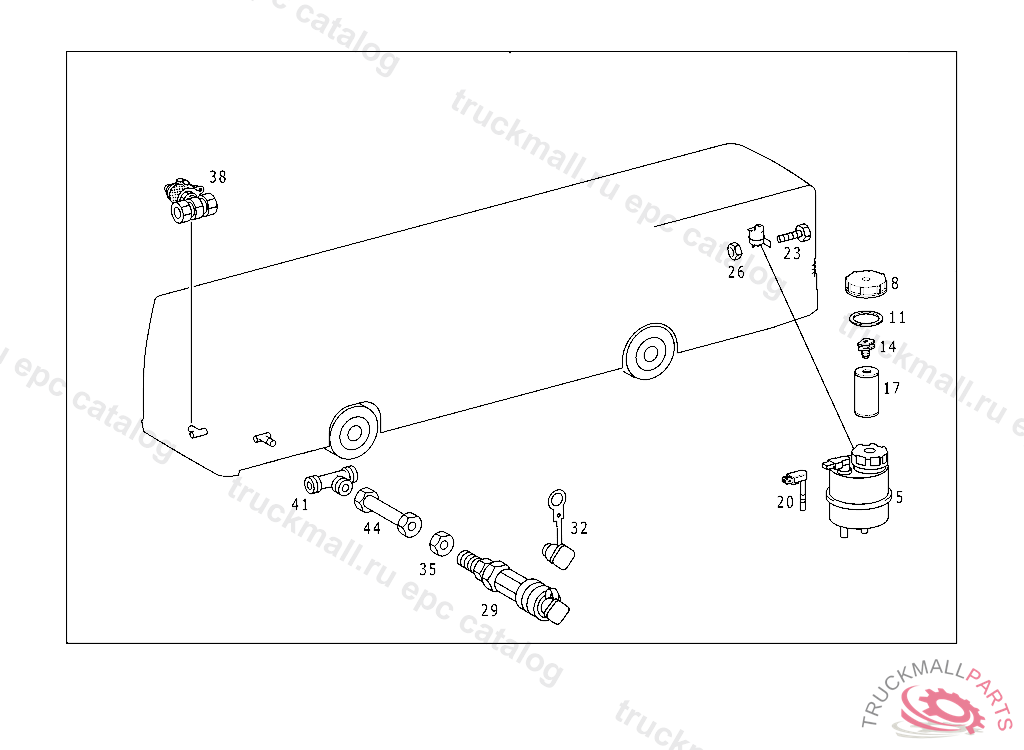

Поз.
Артикул
Описание
5
TANK OIL
8
STEERING BOX COVER
8
FILLER CAP , Replaced By: A0004661268
8
FILLER CAP
11
SEAL RING
14
BRACKET
17
FILTER , Replaced By: A0004660604
20
OIL DIPSTICK , Replaced By: A0004661367
20
OIL DIPSTICK
23
HEXAGON HEAD BOLT COVERING TO CAB
23
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
26
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
29
COUPLING. SOCKET-OUTLET CONNECTOR
32
CAP
35
HEXAGON NUT SUPPORT TO AXLE
38
TEST CONNECTION
38
TEST CONNECTION
41
T-FITTING LINE CONNECTIONS
44
LINE FROM T-FITTING TO TEST CONNECTION 200 MM
