Поз.
Артикул
Описание

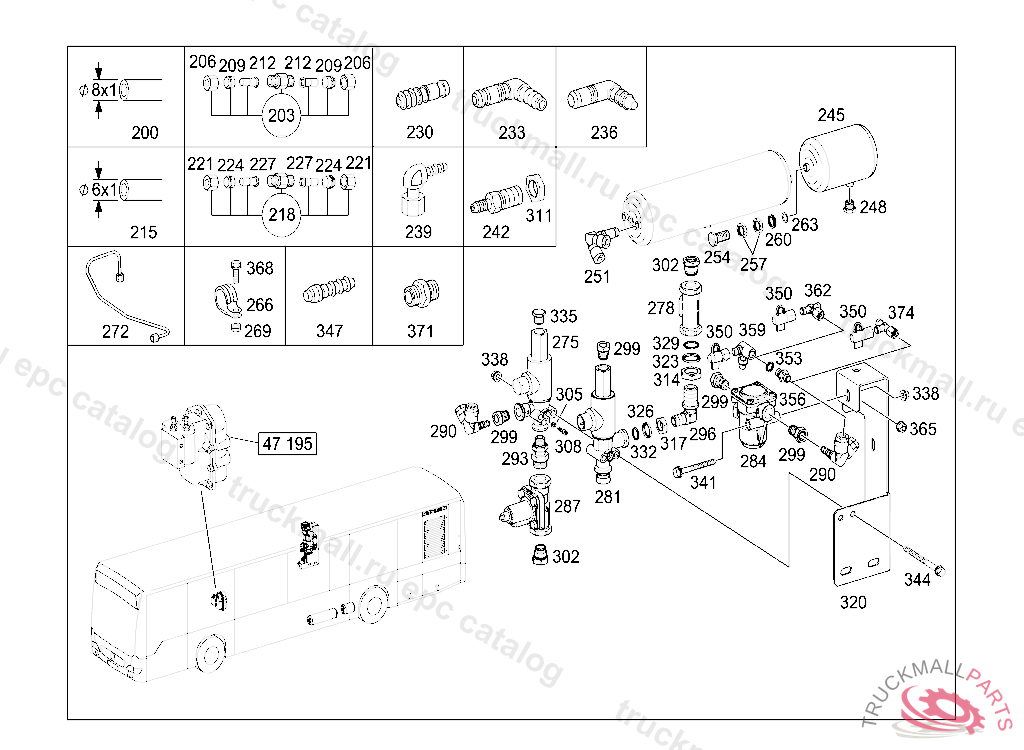

200
PLASTIC PIPE AERATION, ORDER BY THE METER
203
FITTING (PARTS KIT),LINE RUPTURE
206
UNION NUT LINE CONNECTION
209
GLAND LINE CONNECTION
212
SLEEVE LINE CONNECTION
215
PLASTIC PIPE RISING PIPE 4X6 MM
218
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
221
UNION NUT
224
GLAND , Replaced By: A0019901667
227
SLEEVE LEAK LINE
230
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM, Replaced By: A0059977889
230
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M16, 4MM, VOSS 232
230
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M22, 6MM, VOSS 232
233
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM, VOSS 232
233
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 6 MM, VOSS 232
233
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 6 MM, VOSS 232
233
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINES TO M 16 / 4 MM ,VOSS 232,KAN 33/00 AS OF PRODUCTION BREAKPOINT DATE 01.01.2004
233
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 6 MM, VOSS 232, Replaced By: A0059972689
236
ELBOW FITTING , Replaced By: A0049971389
239
ELBOW FITTING
242
FITTING , Replaced By: N915059004001
245
RESERVOIR6L
248
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
248
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
251
V PLUG COMPRESSED-AIR-LINE PLUG-CONNECTION TO M22, M22X1.5 / M22X1.5, VOSS 232
254
SCREW AIR RESERVOIR,CONNECTIONS: "12,13"
257
NUT FITTING TO BRACKET,230274
257
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
260
THRUST RING CHECK VALVE TO AIR RESERVOIR
263
O-RING CHECK VALVE TO AIR RESERVOIR
266
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 6/15
266
CLAMP6/15, Replaced By: N000000007509
269
NUT , Replaced By: N913023006001
272
275
3-2-WAY PNEUMATIC VALVE
275
SOLENOID VALVE 3/2-WAY VALVE ADBLUE
278
NON-RETURN VALVE CHECK VALVE
281
VALVE (3/2-WAY SOLENOID VALVE)
284
VALVE PRESSURE LIMIT VALVE
287
VALVE OVERFLOW VALVE ADBLUE, 7.03,V 207570V 208680
290
V PLUG COMPRESSED-AIR-LINE PLUG-CONNECTION TO M16, M16X1.5 / M16X1.5, VOSS 232
293
STRAIGHT BULKHEAD FITTING WITH O-RING M22X1.5/M16X1.5
296
ELBOW FITTING
299
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
302
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
302
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
305
SEAL RINGBOSCH
308
SCREWM6X12 TX30
311
NUT BULKHEAD FITTING TO BRACKET
311
NUTM12X1.5
314
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
314
NUT FITTING TO BRACKET,230274
317
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
317
NUT BRAKE LINE COUPLING TO BRACKET,230274
320
BRACKET
323
THRUST RING CHECK VALVE TO AIR RESERVOIR
326
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
329
O-RING CHECK VALVE TO AIR RESERVOIR
332
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
335
SCREW PLUG SOLENOID VALVE M16
338
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
341
SCREW , Replaced By: N910143008009
341
HEXALOBULAR BOLT TRAVEL SENSOR TO FRAME SIDE MEMBER M8X70,V 207570
344
HEXALOBULAR BOLT SOLENOID VALVE TO BRACKET M8X100
344
HEXAGON HEAD BOLT. SCREW 3/2-WAY VALVE TO BRACKET M 8X100
347
CONNECTOR LINE CONNECTION
350
TEST CONNECTION
353
SEAL RING 3/2-WAY VALVE
356
FITTING
356
FITTING , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.04.2010
359
L-FITTINGM12X1.5/M10X1.5
362
FITTING , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 01.04.2010 UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)31. 07.2010
365
NUT HORN TO BRACKET M8
365
NUT ENGINE MOUNTING M8
368
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
368
SCREW , Replaced By: N914146006102
371
FITTING , Replaced By: A0039979072
371
FITTING , Replaced By: A0029906071
371
TS DOUBLE FITTING SOLENOID VALVE
374
