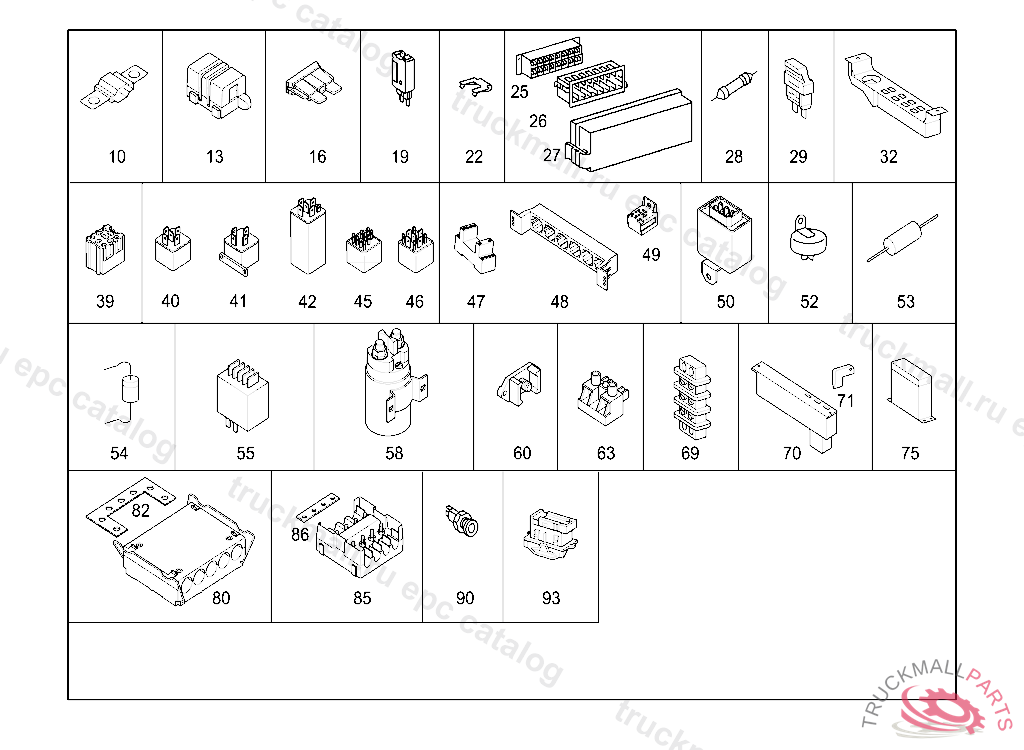

Поз.
Артикул
Описание
10
SCREW. PART NAME MISSINGA 70
10
FUSE LINK
10
PART NAME MISSINGA 50
10
FUSE LINK30A
10
SCREW. PART NAME MISSINGA 80
10
FUSE LINK ADAPTER BOX PLUS 125A
10
FUSE BATTERY CUT-OFF RELAY,085403
10
FUSE LINK400 A
10
FUSE LINKSF 30-80 / 80A
10
FUSE LINKSF 30-30 / 30A
10
FUSE40A
10
FUSE50 A
10
FUSE LINKSF 30-70 / 70A
10
FUSE125A, Replaced By: N000000000594
13
FUSE HOLDER MIDI-LOCK
16
FUSE , Replaced By: A0025451034
16
FUSE10 A
16
FUSE IN CASE OF SUBSEQUENT INSTALLATION, Replaced By: N000000004202
16
FUSE20 A, MINOR REPAIRS, Replaced By: N000000004206
16
FUSE4 A
16
FUSE LINK20 A
16
FUSE LINK NATURAL WHITE 25A,V 202043
16
FUSE MODULE 7.5 A
16
FUSE LINK IN FUSE BOX AND SPARE FUSE 7,5 A
16
FUSE LINK YELLOW 20A
16
FUSE LINK10A
16
FUSE25 A
16
FUSE LINK BLUE 15A,V 202043
16
FUSE LINK IN CASE OF SUBSEQUENT INSTALLATION
19
FUSE MODULE7,5A
19
FUSE THERMAL 15 A
19
FUSE LIFTING DEVICE DRIVE MOTOR 32 A
19
FUSE THERMAL 10A
19
FUSE MODULE5A
19
FUSE MODULE4A
19
FUSE MODULE10A,102668
19
FUSE MODULE20A,102668
19
FUSE THERMAL 7,5A,102667
19
FUSE MODULE15A
19
FUSE MODULE25A,102668
19
FUSE MODULE3A,102668
19
FUSE20 A
19
FUSE THERMAL 5A,102667
22
CONTACT RAIL ELECTRICAL COMPARTMENT
25
JUNCTION BOX FUSE
26
JUNCTION BOX (TOP),CONNECTION BOX
27
CAP FUSE BOX
28
RESISTOR ASSEMBLY 1200 OHM
28
RESISTORR 79, 1 W/1000 OHM
28
RESISTOR470 OHM
28
RESISTOR220 OHM
28
RESISTOR4 W/ 150OHM
29
DIODE ,K 182153
32
BRACKET DIODES
39
PLUG HOUSING
40
RELAYA33, Replaced By: A0009822123
40
RELAY RELAY WITH ERASE DIODE 24V-10/20A,A32, K1, K3, K5
40
RELAY , Replaced By: A0035459605
40
RELAYA33
40
RELAY AT APPARATUS PLATE 50 A
40
BUZZER COOLING WATER TEMPERATURE CONTROL
41
RELAY BLINKER LIGHT CONTROL BUZZER
42
RELAY STARTING LOCK K 3
42
RELAY TRANSMISSION OIL COOLING SYSTEM
42
RELAYK 473,080604
45
RELAY 5-POLE
46
DIODE MODULE FIVEFOLD
47
SOCKET" F ZG450 "
48
FRAME , Replaced By: A6555421187
49
BASE TIME-LAG RELAY
49
PIN BUSHING HOUSING TIME-LAG RELAY, Replaced By: A0008250518
50
RELAY (TIME RELAY) 90 SEK
52
DIODE RELAY
53
CONDENSER1,0UF/100V--
53
RESISTOR6,2KOHM 0,5 W
53
METALLIC FILM RESISTOR 2,8 KOHM 1/4W
54
RESISTOR ,079253
55
UNDERVOLTAGE PROTECTION. CONTROL UNIT (UNDERLOAD PROTECTOR),067546
58
RELAY MAKE PULSE 24V / 80A
60
CABLE CLAMP. CABLE CONNECTOR CABLE HARNESS MOUNTING
63
CABLE CONNECTOR
69
CLAMPING RAIL. CABLE CONNECTOR AT UPPER COOLING WATER LINE, FROM IDENT NO. 040926 ALSO INSTALLED ON 038379,038620.
70
MODULE INSTRUMENTS "I"
70
DATA MODULE INSTRUMENT LIGHTING, PRODUCTION BREAKPOINT AS OF 01.02.2008
71
CLAMP MODULE LEAD-SEALING
75
JUNCTION BOX PLUG SOCKET
80
FUSE BOX FUSE
80
PLUG. HOUSING MEGA-LOCK, Replaced By: A0045454701
82
CONTACT BRIDGE
85
FUSE BOX MIDI-LOCK
86
CONTACT BRIDGE QUADRUPLE TO A 000 540 20 50
90
PLUG SOCKET , Replaced By: A0005454426
93
BRACKET DIAGNOSIS PLUG SOCKET,V 202043
999
CONTROL UNIT
