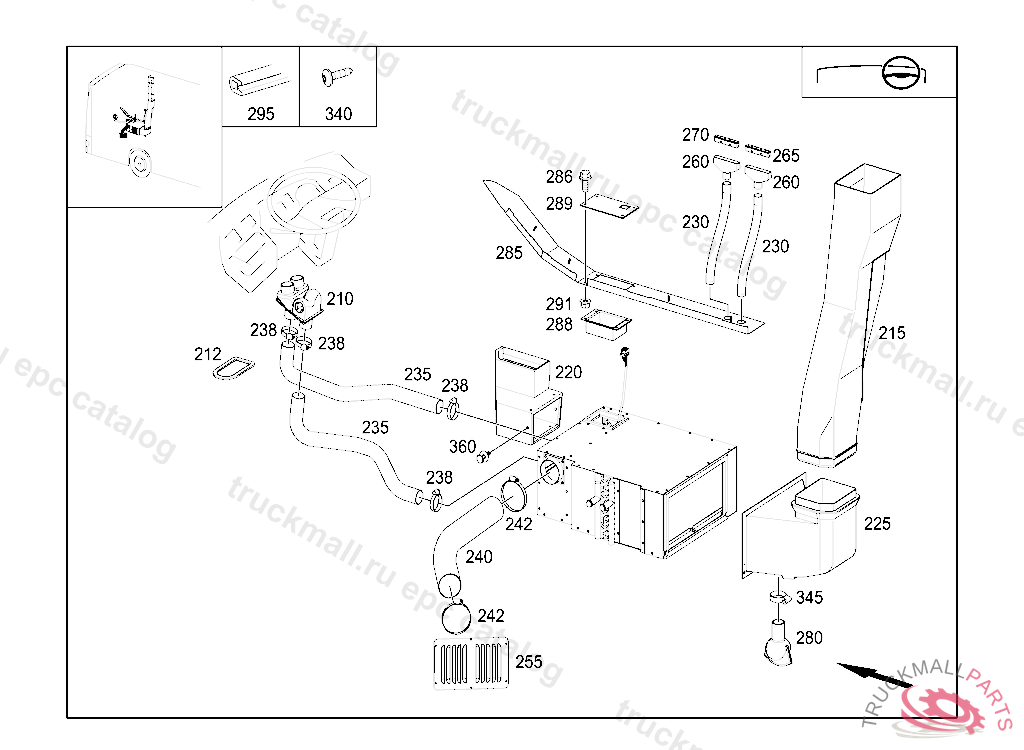

Поз.
Артикул
Описание
210
AIR DISTRIBUTOR INSIDE,BELOW INSTRUMENT PANEL
212
ADHESIVE TAPE , ORDER BY THE METER
215
DUCT
220
DUCT
225
DUCT
230
AIR TUBE DRIVER'S WINDOW D29MM
235
AIR TUBE BETWEEN HEATER AND AIR DISTRIBUTOR TO BRACKET D48MM
238
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
240
HOSE BETWEEN HEATER AND DRIVER'S SEAT PEDESTAL 90 MM
242
CLAMP INTAKE MUFFLER TO BRACKET 90-110X12
255
AIR BAFFLE DRIVER'S PEDESTAL
260
NOZZLE VENTILATION DRIVER'S WINDOW
265
DEFROSTER NOZZLE VENTILATION DRIVER'S WINDOW
270
DEFROSTER NOZZLE VENTILATION DRIVER'S WINDOW
280
VALVE , 000,001,004,010 FROM CHASSIS 152806,002,003,005,011 FROM CHASSIS 012120,100,101,104,110 FROM CHASSIS 267733
285
HOUSING COVER
285
COVERING
286
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
288
DUCT COVER TO AIR DUCT
289
COVERING
291
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
295
EDGE GUARD SECTION , ORDER BY THE METER
340
SHEET METAL SCREW BRACKET TO SUPPORT
345
CLAMP , Replaced By: N916026020001
360
RIVET COVERING TO BRACKET
