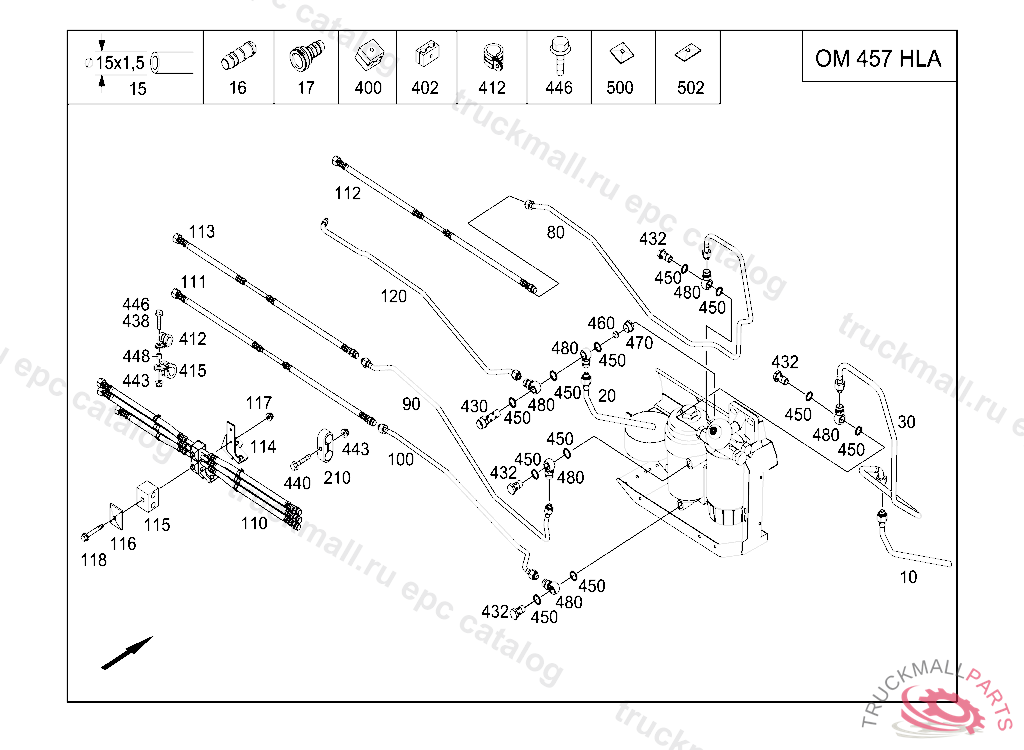

Поз.
Артикул
Описание
10
FUEL LINE
10
LINE FEED
15
FUEL LINE15X1.5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
15
FUEL LINE. HOSE FUEL TANK TO RING MOUNT 12 X 15 MM, ORDER BY THE METER, Replaced By: A0004763601
16
FITTING FUEL LINES
17
COUPLING
20
LINE
20
LINE RETURN
30
LINE
80
LINE
90
LINE FEED
100
LINE
110
FUEL HOSE
110
LINE FEED, Replaced By: A6284703575
111
FUEL HOSE
112
FUEL HOSE
113
FUEL HOSE
114
BRACKET
115
CLAMP
116
COVER PLATE34X30 MM
117
NUT BRACKET TO FIRE WALL
118
SCREW BATTERY CABLE TO BRACKET M6X45
120
LINE RETURN
210
DOUBLE CLAMP
400
DOUBLE PIPE CLAMP. CLAMP36X26X30 MM
402
CLAMP
412
CLAMP DELIVERY AND SUCTION LINES TO FRAME
412
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
412
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
412
CLAMP SUCTION/DELIVERY/RETURN LINES 12/15MM
412
CLAMP
415
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RSGU 20/15
430
HOLLOW SCREW
432
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
432
BANJO BOLT
438
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
440
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
440
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X35
443
NUT BRACKET TO FIRE WALL
446
HEXAGON HEAD BOLTM10X20, Replaced By: N910105010006
446
HEXAGON HEAD BOLT. SCREW BRACKET MOUNTING M8 X 30
446
HEXAGON HEAD BOLT. SCREWM 12X1,5X20 MM - TO A 202 490 08 41
446
SCREW BRACKET AND CLAMP M6X20
448
SPACER TUBE SWITCH TO ENGINE
450
SEAL RINGTO 006 997 00 72
460
LOCKING CONE BULKHEAD FITTING TO BRACKET, 307.0 FROM IDENT NO. 007938,307.1 FROM IDENT NO. 007977
460
SEALING CONE
470
NUTM18X1,5
470
NUT FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24", 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
480
FITTING
480
FITTING
500
COVER PLATE34X30 MM
502
COVER PLATE51X30 MM
