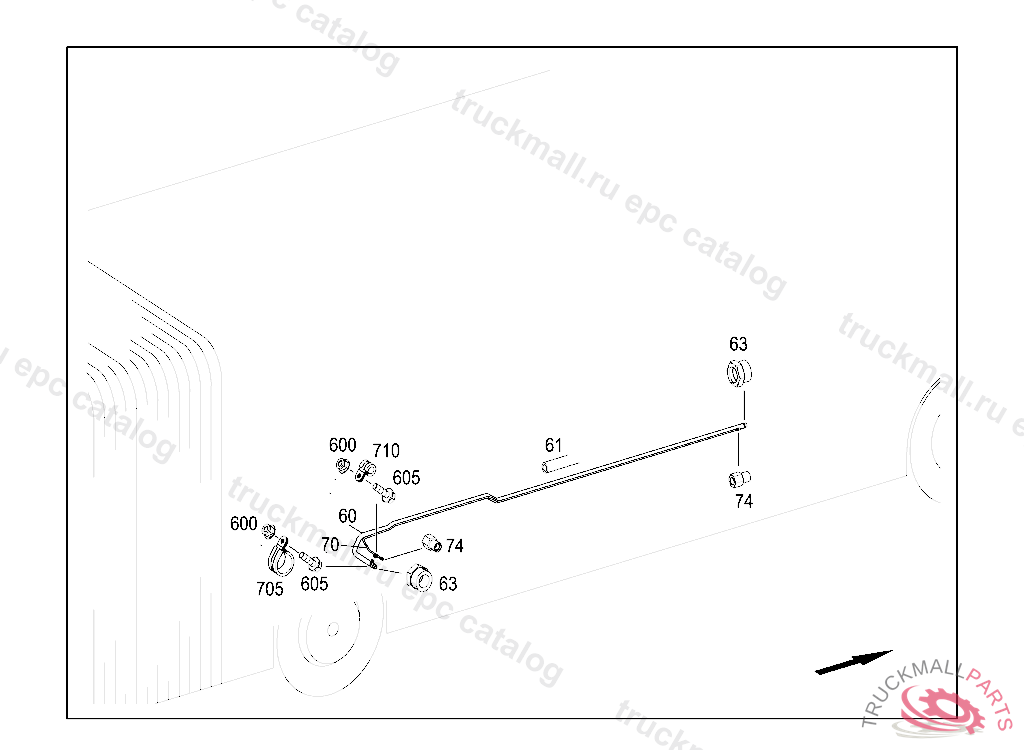

Поз.
Артикул
Описание
60
PIPE LINE
61
INSULATING HOSE22X32MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
63
FITTINGM30X2
70
PIPE LINE
74
PIPE SOCKET5/8"-18
600
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
600
NUT BRACKET TO FIRE WALL
605
SCREW BRACKET AND CLAMP M6X20
705
MOUNTING CLAMP28/15
705
CLAMP28/15, Replaced By: A0019951842
705
CLAMP CABLE HARNESS MOUNTING
710
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
710
CLAMP , Replaced By: N916016010211
710
CLAMP10/15
999
LOOM TIE LINE MOUNTING
999
ADHESIVE TAPE3X50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
PIPE LINE
999
PLATE
999
FITTING3/4"
