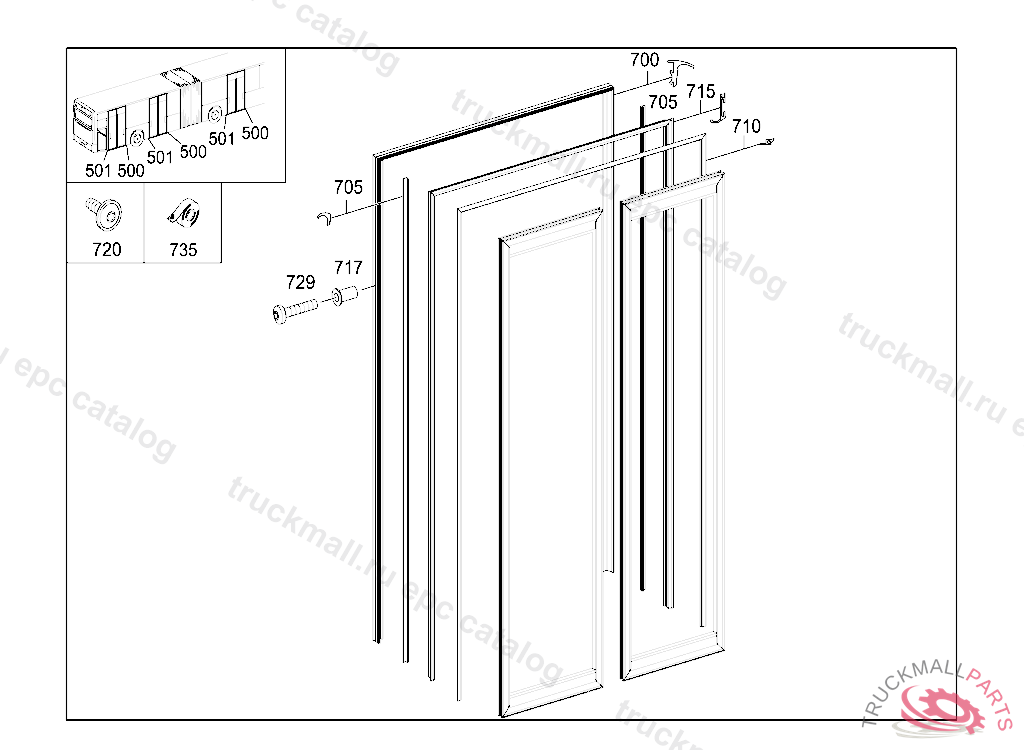

Поз.
Артикул
Описание
500
CONTROL BAR FRONT, NO.7365 INO.5856 INO.7327 IIII
501
CONTROL BAR REAR, NO.7365 INO.5856 INO.7327 IIII
700
WEATHERSTRIP CENTRAL, TO BE ADAPTED DURING ASSEMBLY
700
SEAL , GIVE LENGTH WHEN ORDERING
705
RUBBER SECTION , TO BE ADAPTED DURING ASSEMBLY
710
SEAL
715
FRAME PART , TO BE ADAPTED DURING ASSEMBLY
717
RIVETED NUT
720
SCREWM 8X25
720
SCREWT30 M6X20
720
SCREWM8X30
720
SCREWM6X35
720
SCREW
720
SCREWM5X12
720
SCREWM6X16
720
SCREW FRAME MOUNTING M 6X25
720
SCREWM 8 X 16
729
SCREW W COLLAR A DRIVET30 M6X20
735
ADHESIVE TAPE4.5X10 MM, ORDER BY THE METER
999
ADHESIVE FOIL
