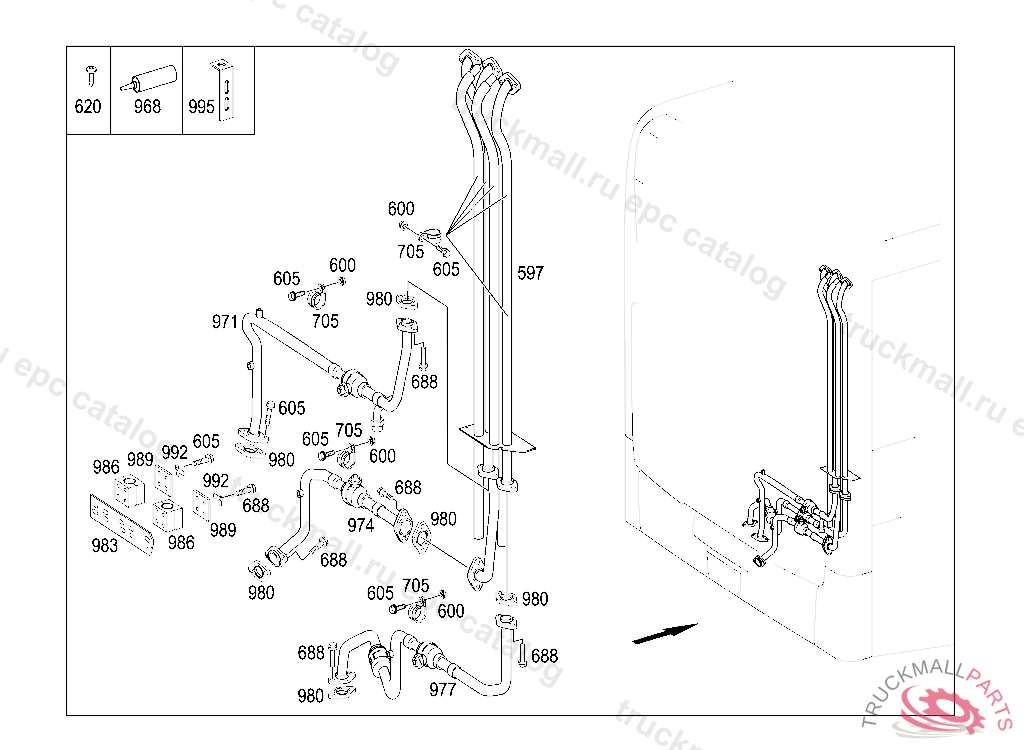

O530 - CITARO GUE 18M, 3-TUERER - 628.287 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
597
PIPE LINE
600
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
600
NUT BRACKET TO FIRE WALL
605
SCREW BRACKET AND CLAMP M6X20
605
HEXAGON HEAD BOLTM6X60
620
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
620
TAPPING SCREW RAIL
688
SCREWM10X50
705
CLAMP CABLE HARNESS MOUNTING
705
CLAMP28/15, Replaced By: A0019951842
705
MOUNTING CLAMP28/15
968
FLAME PROTECTOR
971
PIPE LINE
974
PIPE LINE
977
PIPE LINE
980
GASKET34X42 MM
983
BRACKET
986
RUBBER MOUNTING MOUNTING FOR PRESSURE AND RETURN LINE 28MM
989
TRAY
989
PLATE30MM
992
LOCK
995
BRACKET
999
ADHESIVE TAPE3X50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
LOOM TIE LINE MOUNTING
