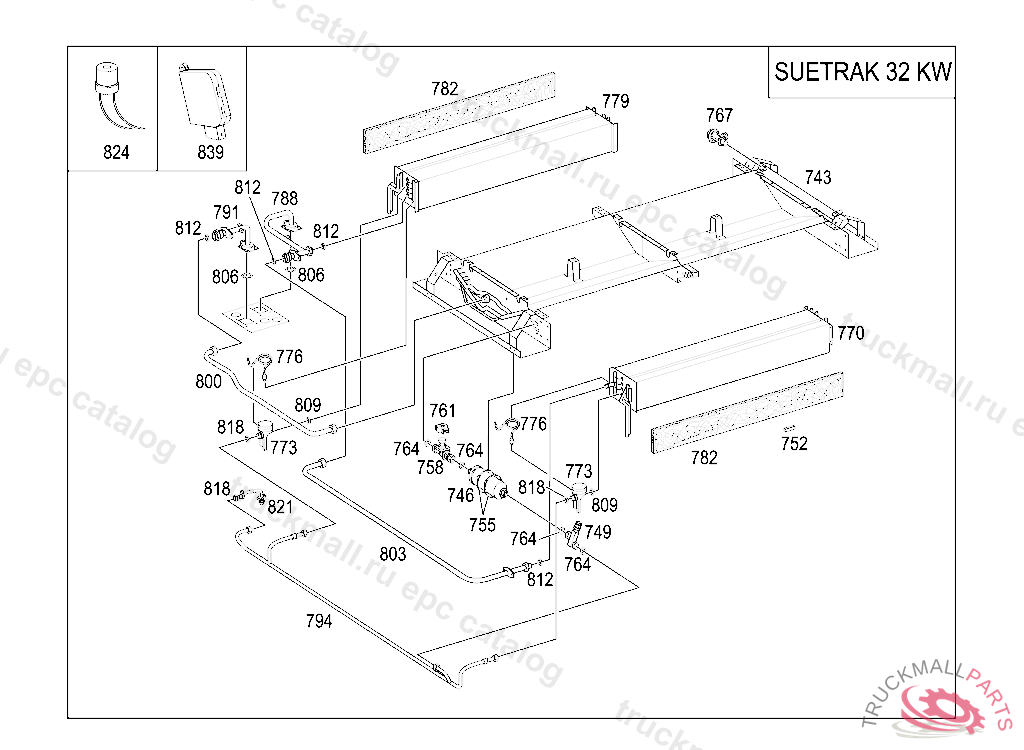

O530 - CITARO GUE 18M, 3-TUERER - 628.287 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
743
CONDENSER
746
FILTER
749
VALVE
752
PLASTIC FOAM6X12, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
755
CLAMP
758
VALVE
761
SOLENOID
764
SEAL7/8"
767
VALVE
770
EVAPORATOR LILAC/BROWN
773
VALVE
776
PIPE LINE
779
EVAPORATOR RIGHT
782
GRILLE
788
CONNECTOR SUCTION LINE
791
CONNECTOR DELIVERY LINE
794
PIPE LINE
800
PIPE LINE DELIVERY LINE
803
PIPE LINE SUCTION LINE
806
GASKET
809
SEAL RING13/16"
812
SEAL RING
818
SEAL RING7/8"
821
CONNECTOR
824
SWITCH,AUTOMATIC
839
SERVO-D.C. W.GEARBOX
839
ELECTRIC MOTOR , Replaced By: A0068207842
999
CONNECTOR
999
COIL SOLENOID VALVE
999
INTERMEDIATE PIECE
999
LINK
999
LINK
999
ADHESIVE LABEL DO NOT ENTER
999
HOSE
999
MOUNTING PLATE
999
RETAINING CLIP
999
PROTECTIVE CAP
999
SCREW , Replaced By: A0008312028
999
FILTER
999
CLIP
999
CABLE HARNESS
999
RUBBER MOULDING , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
PIPE LINE
999
PIPE LINE
999
REFRIGERANT LINE FEED LINE VW 1,AL
999
REFRIGERANT LINE FEED LINE VW 2,AL
999
SEAL RING1-3/16"
999
SEAL RING7/16"
